Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - FRONT AND REAR POWER WINDOWS - PASSENGER POWER WINDOW

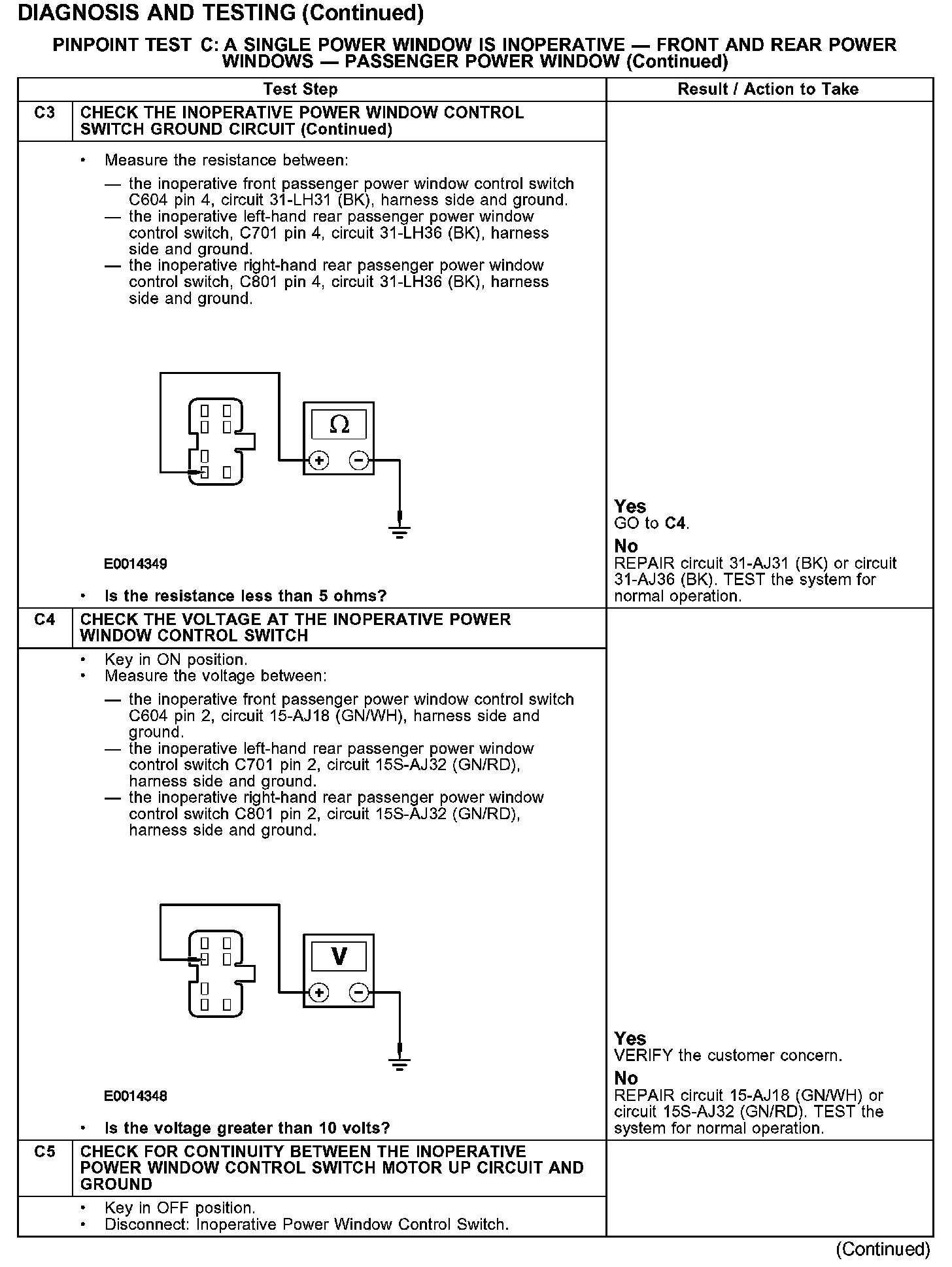

Test C1-C3:

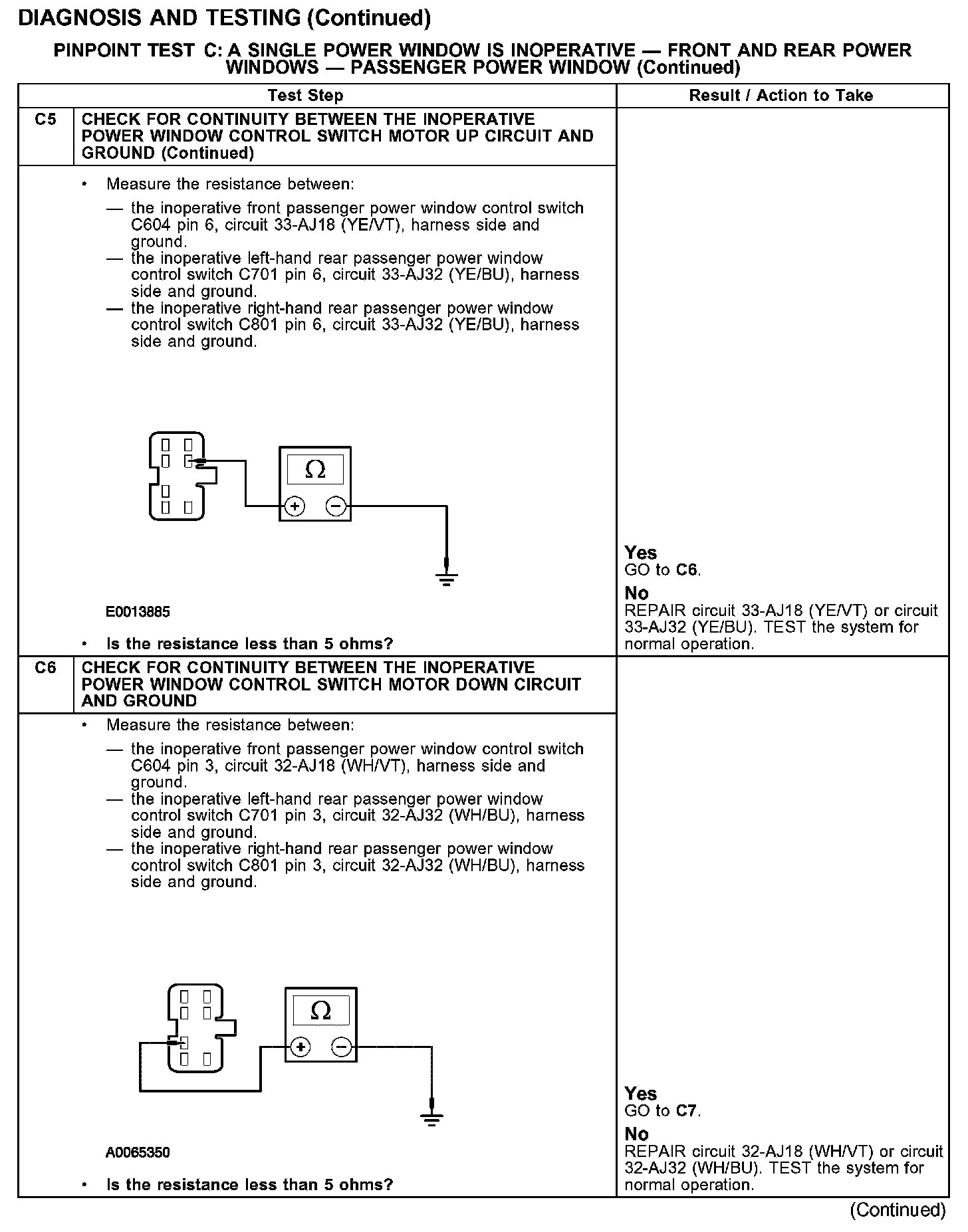

Test C3-C5:






Test C5-C6:

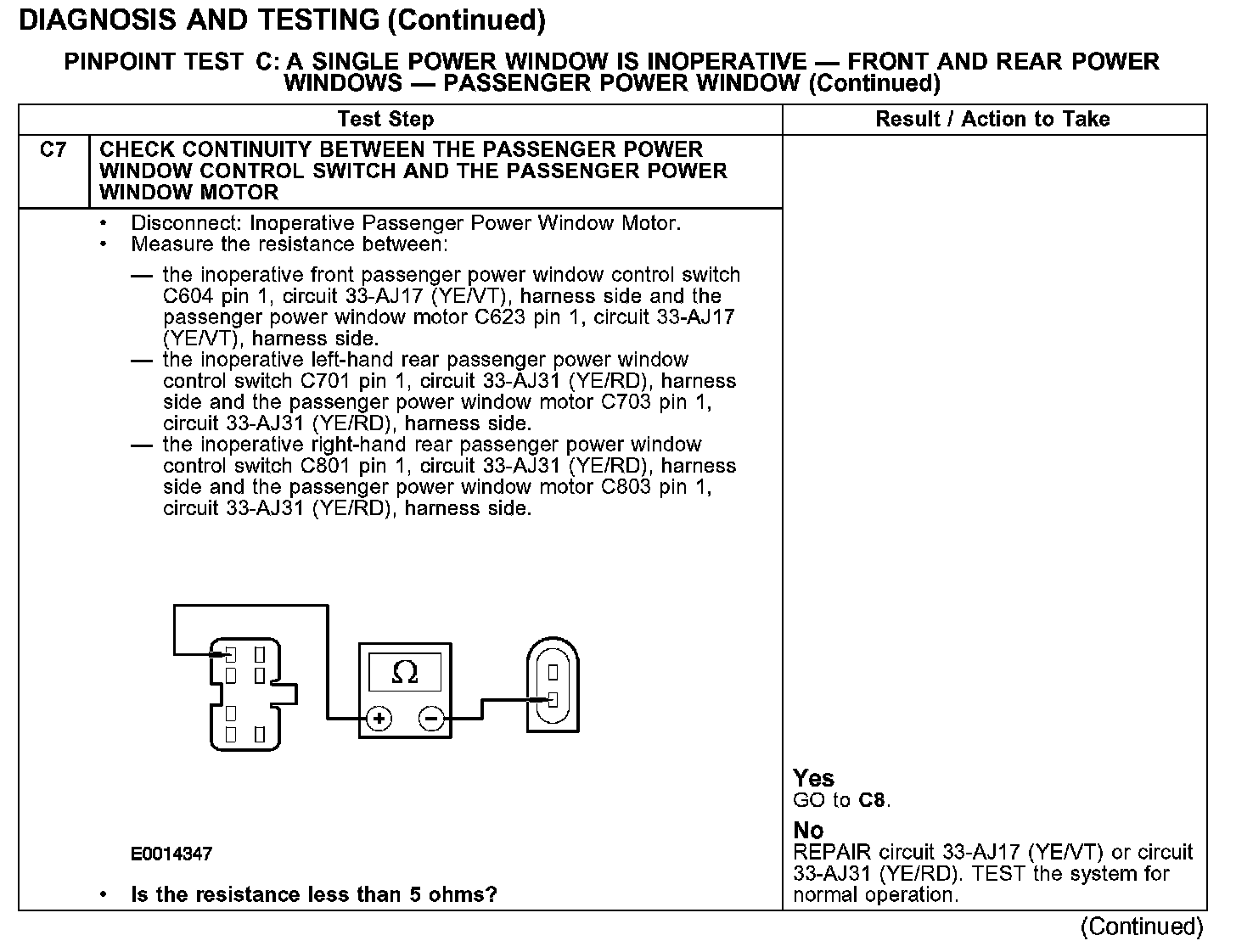

Test C7:

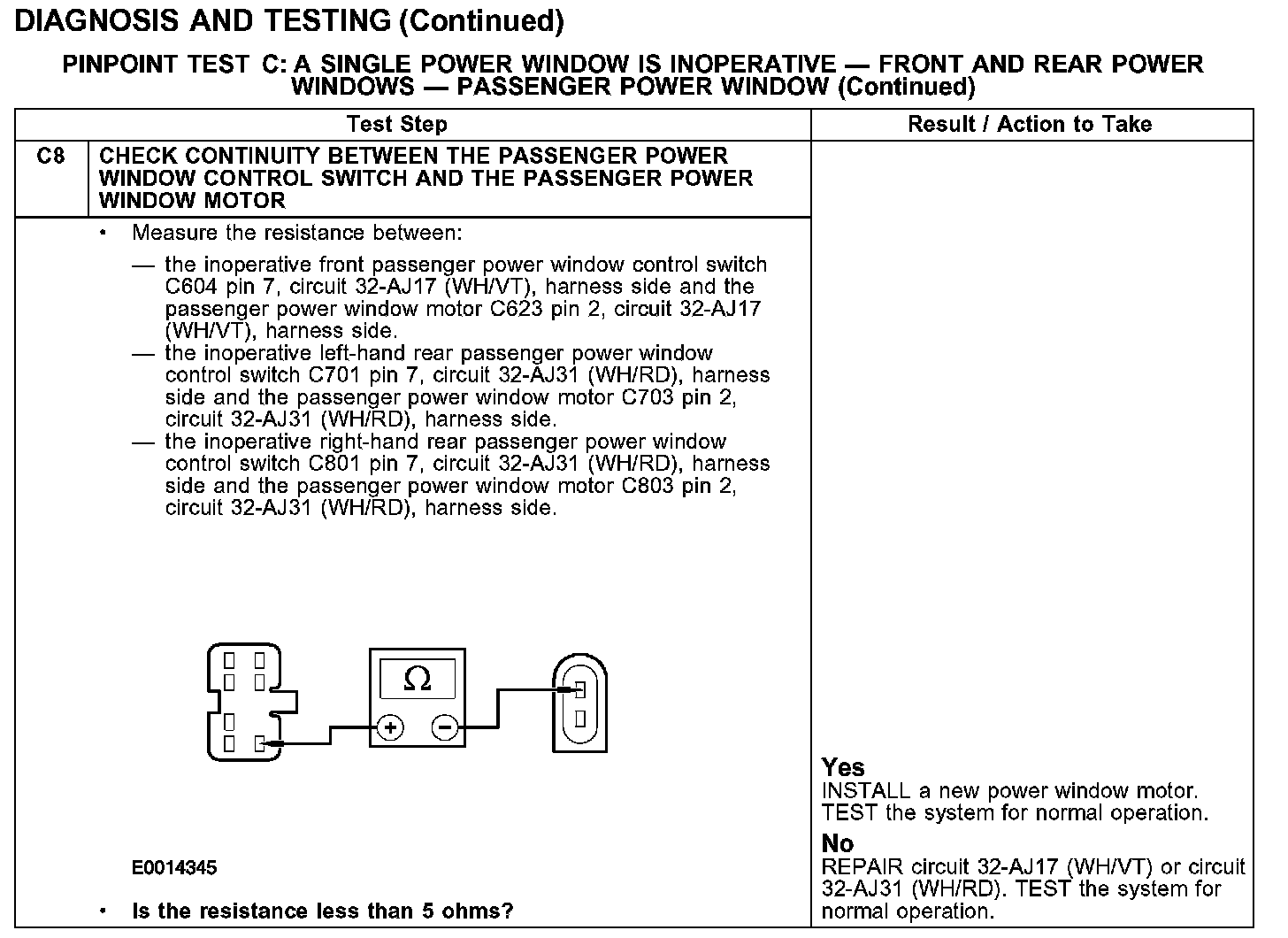

Test C8:
