Removal And Installation

FRONT SEAT CUSHION

REMOVAL
1. Remove the front seat.







2. CAUTION: Note the position and routing of the wiring harness(es) to aid installation. An incorrectly routed wiring harness may lead to the wires becoming damaged on the seat mechanism.

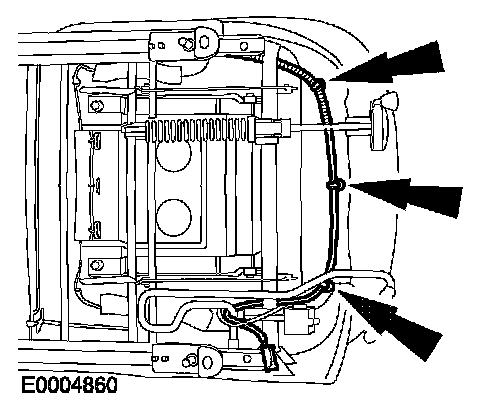

Detach the safety belt buckle sensor wiring harness and the safety belt buckle pretensioner wiring harness (if equipped) from the underside of the cushion.
- Detach the retaining clips.

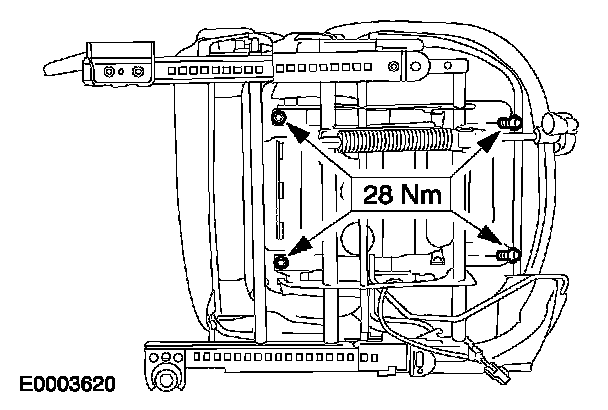

3. Remove the front seat cushion.

INSTALLATION
1. To install, reverse the removal procedure.
