Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Diagrams >> Upper Engine Components

Upper Engine Components

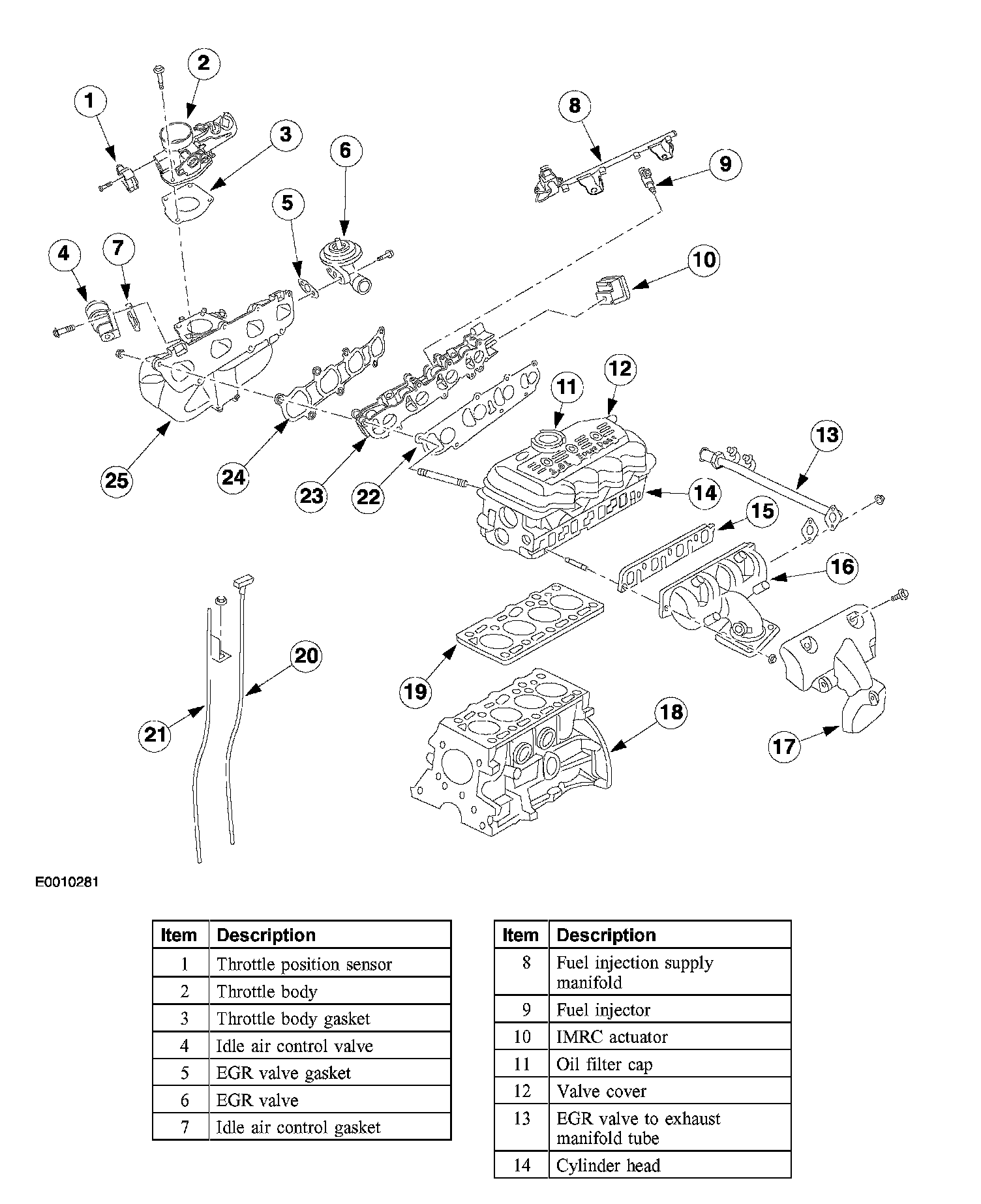

Part 1 Of 2:

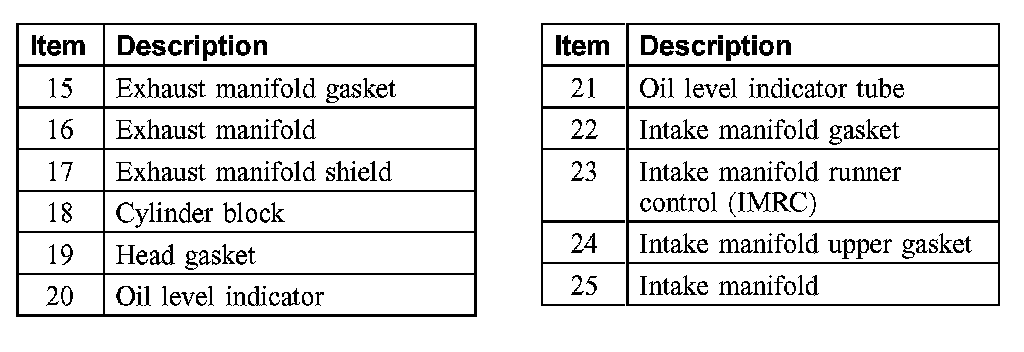

Part 2 Of 2:
