Camshaft Oil Seal: Service and Repair

Camshaft Seal

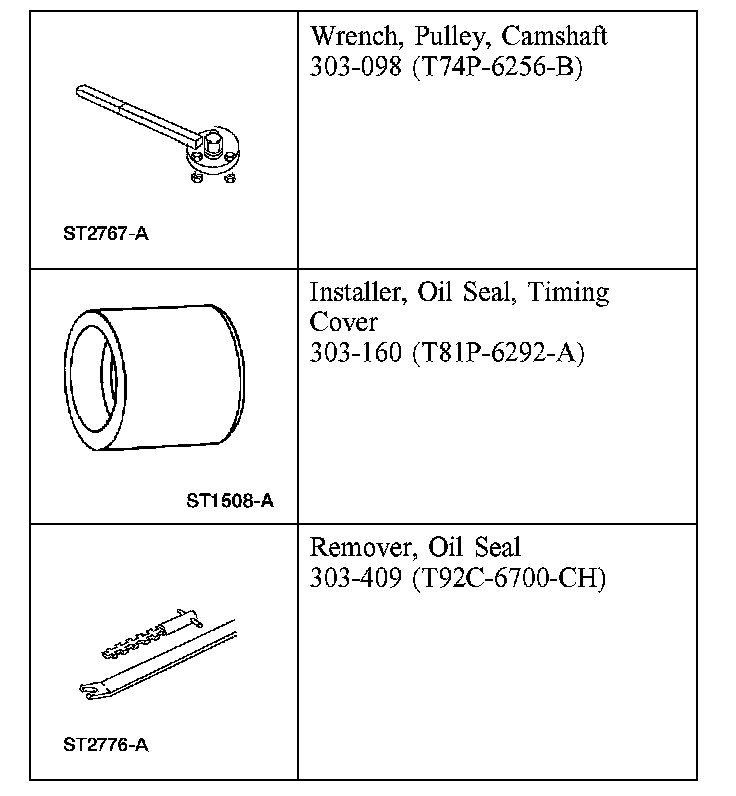

Special Tool(s)

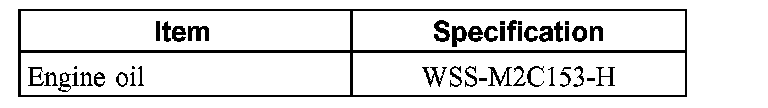

Material

Removal
1. Remove the timing belt.

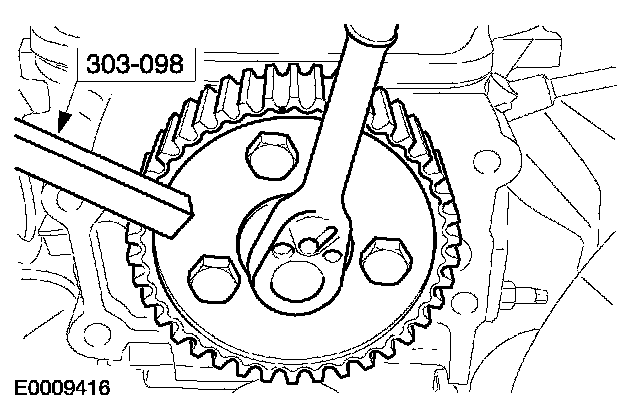

2. Using the special tool, remove the camshaft timing belt pulley.

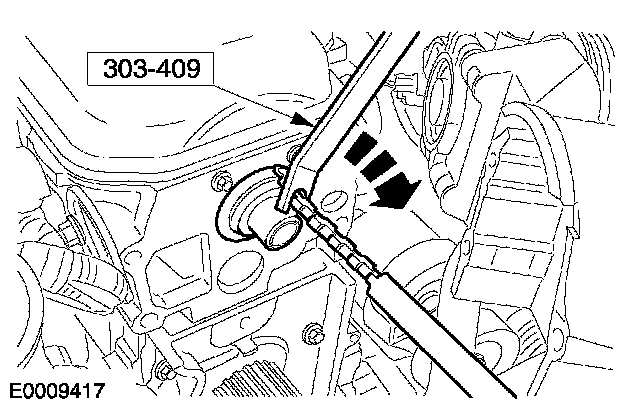

3. Using the special tool, remove the camshaft oil seal.

Installation

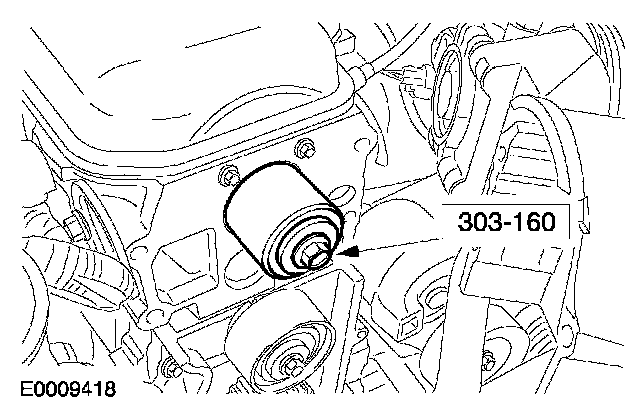

1. Using the special tool, install a new oil seal.
^ Lubricate the oil seal lip and the camshaft running face with engine oil.
Insert the oil seal in the special tool and draw it in with the timing belt pulley bolt.

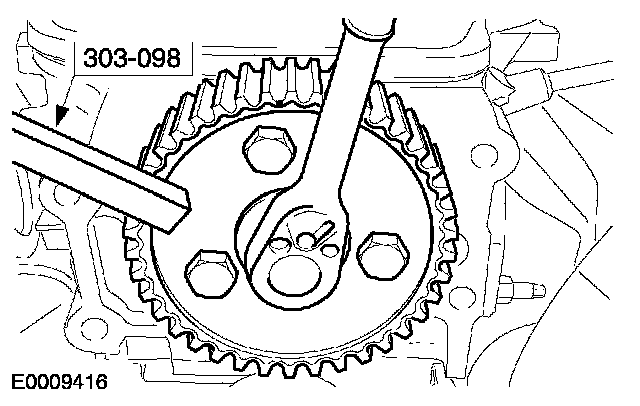

2. Using the special tool, install the camshaft timing belt pulley.
3. Install the timing belt.
