Valve Guide Seal: Service and Repair

Valve Seals

Removal
1. Remove the valve springs.

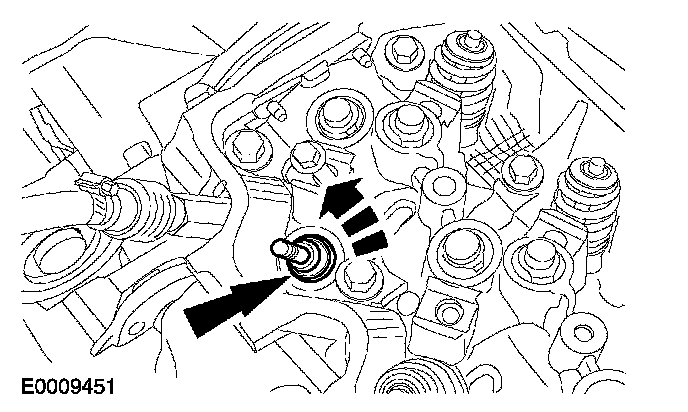

2. Remove and discard the valve stem seal.

Installation

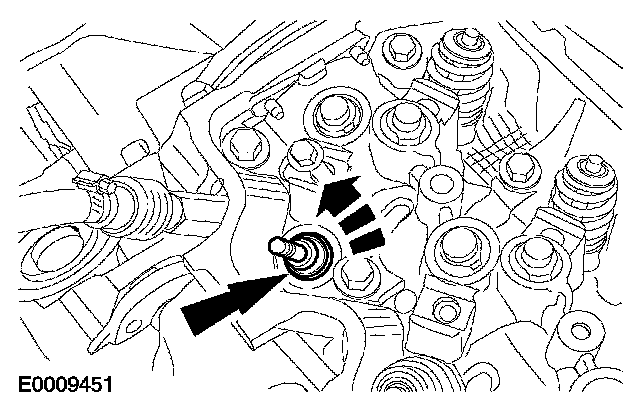

1. Install the valve stem seal.
2. Install the valve springs.
