Diesel Data: Automotive Repair
Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Torque Specifications

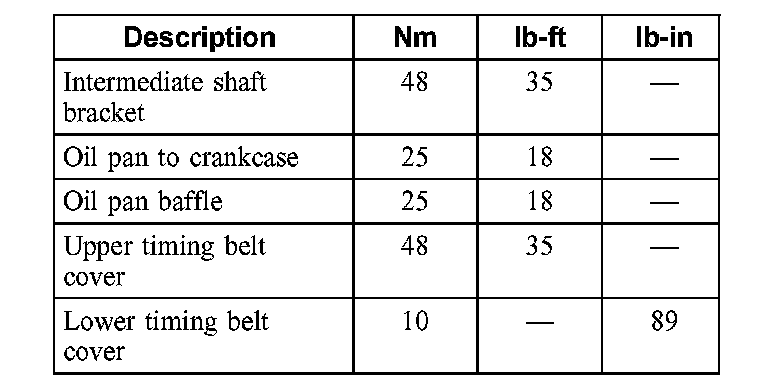

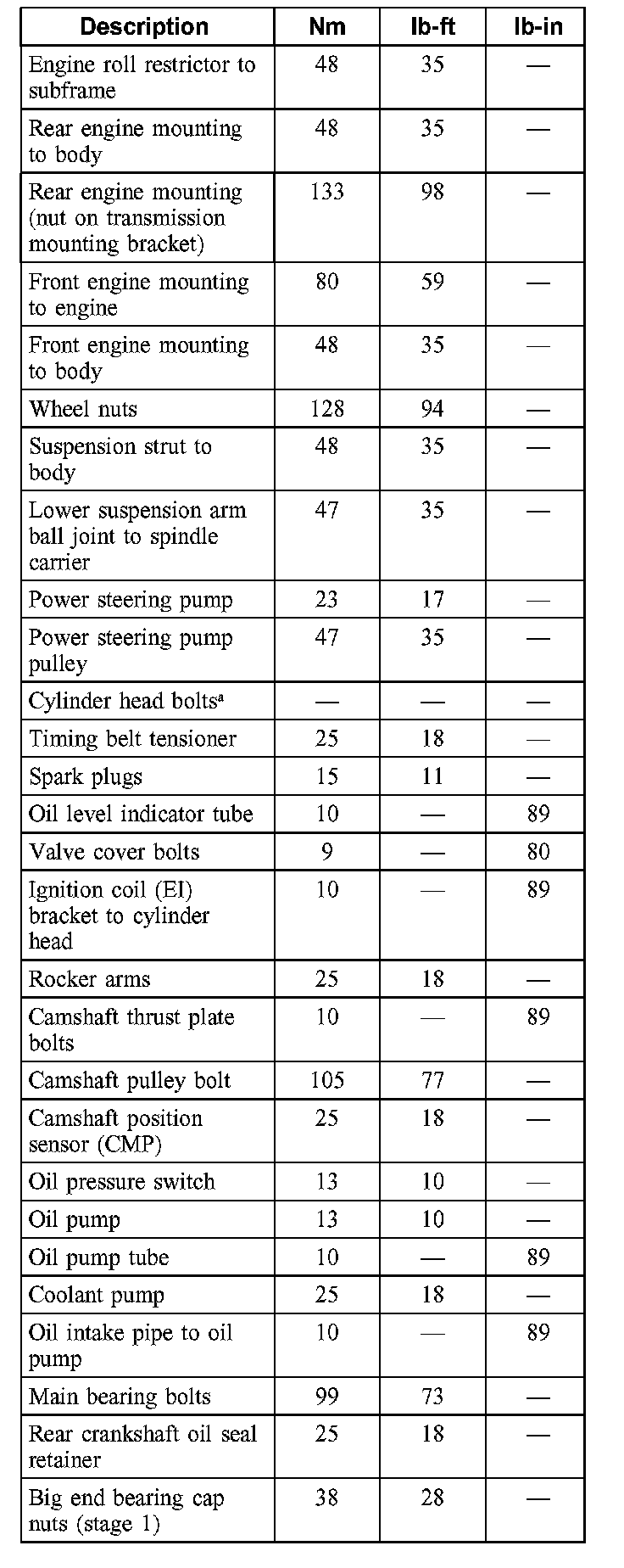

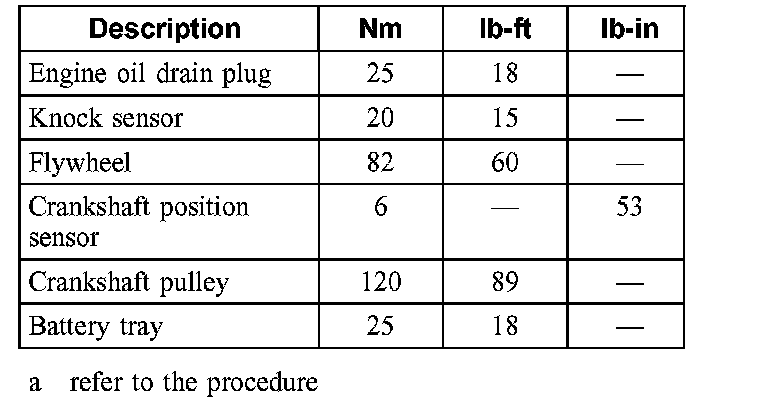

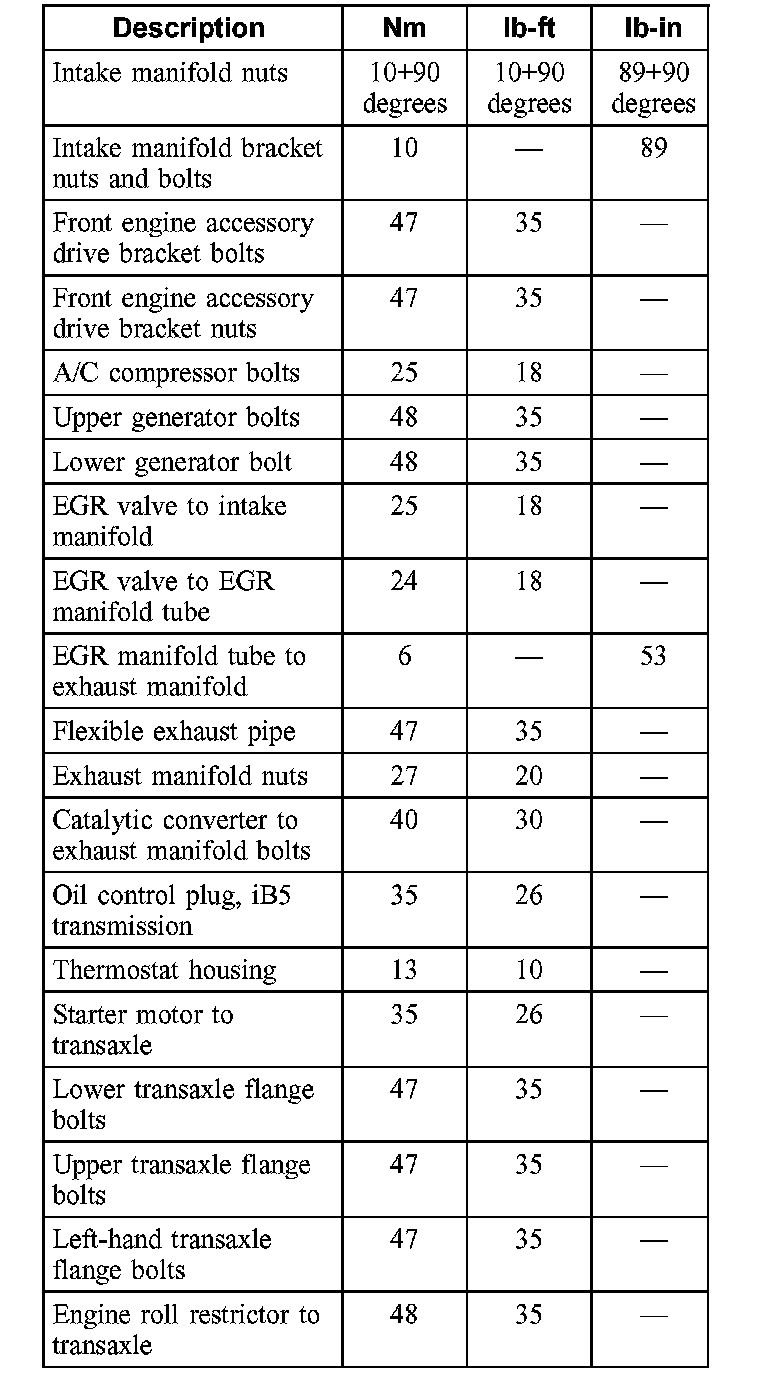

Torque Specifications

Part 1 Of 4:





Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:






Crankshaft Rod Caps 38 Nm
