Pump

Power Steering Pump-2.0L SPI

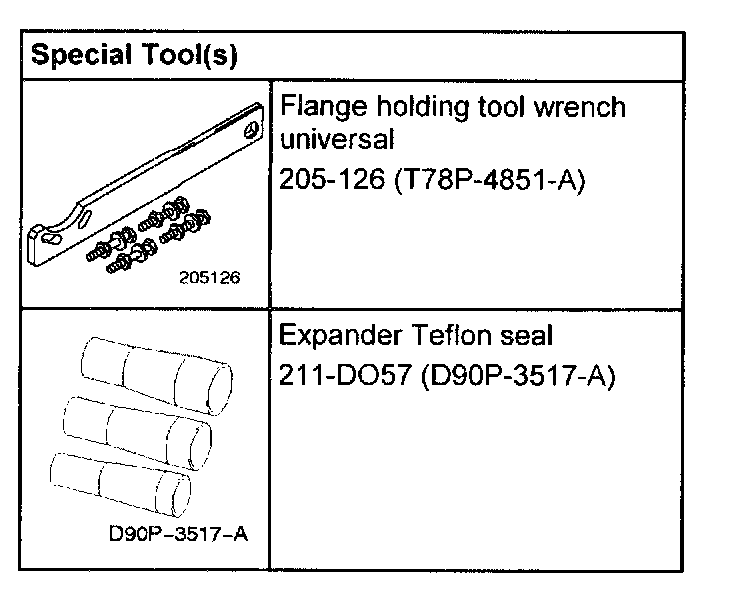

Special Tool(s)

Removal





1. Detach the accessory drive belt from the power steering pump pulley.

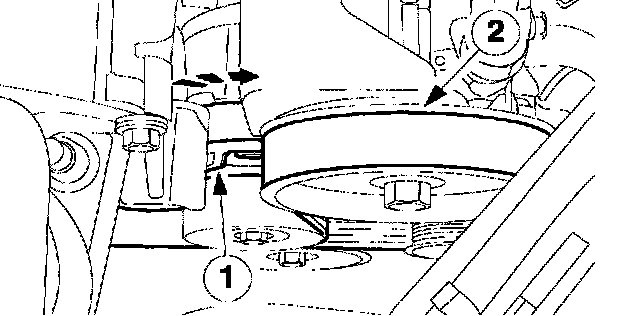

1 Using a 1/2" square drive breaker bar in the hole provided rotate the tensioner in a clockwise direction.
2 Detach the accessory drive belt from the power steering pump pulley.





2. NOTE: Using the special tool prevent the power steering pump pulley from rotating.

Remove the power steering pump pulley retaining nut.
3. Remove the power steering pump pulley.





4. Detach the power steering fluid reservoir hose from the power steering pump.
^ Allow the fluid to drain into a suitable container.

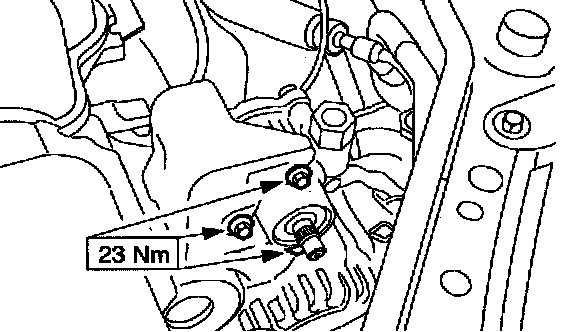

5. Detach the power steering high-pressure line from the power steering pump.
^ Allow the fluid to drain into a suitable container.





6. Remove the power steering pump.





7. Remove the power steering fluid reservoir to power steering pump hose union.
^ Discard the O-ring seal.

Installation





1. CAUTION: A new O-ring seal must be installed.

Install a new power steering fluid reservoir hose union O-ring seal.





2. Install the power steering fluid reservoir union.





3. Install the power steering pump.





4. Using the special tool, install a new O-ring seal onto the power steering high-pressure line to power steering pump union.

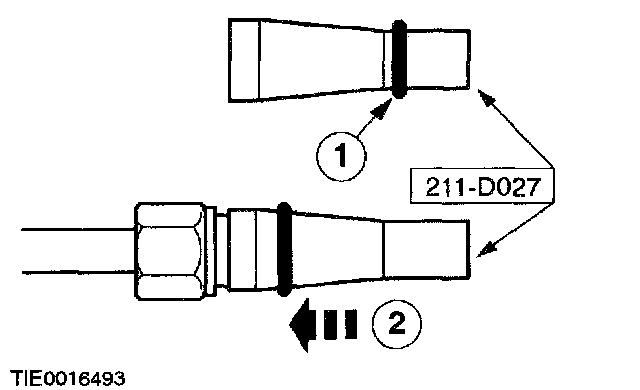

1 Push the O-ring seal onto the special tool.
2 Locate the special tool onto the union and install the O-ring seal.





5. Attach the power steering high-pressure line to the power steering pump.





6. Attach the power steering fluid reservoir hose to the power steering pump.





7. NOTE: Using the special tool prevent the power steering pump pulley from rotating.

Install the power steering pump pulley.





8. Attach the accessory drive belt to the power steering pump pulley.
1 Using a 1/2" square drive breaker bar in the hole provided rotate the tensioner in a clockwise direction.
2 Attach the accessory drive belt to the power steering pump pulley.
9. Fill and bleed the power steering system.
