Fluid Pan: Service and Repair

Fluid Pan, Gasket and Filter





Special Tool(s)

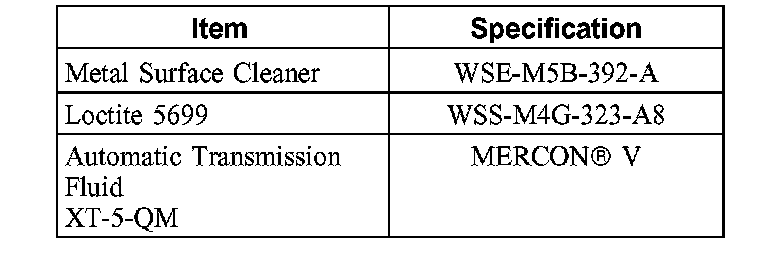

Material

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.





2. NOTE: Position a suitable drain pan under the fluid pan.

NOTE: The fluid pan is filled with automatic transmission fluid and can not be drained before removing.

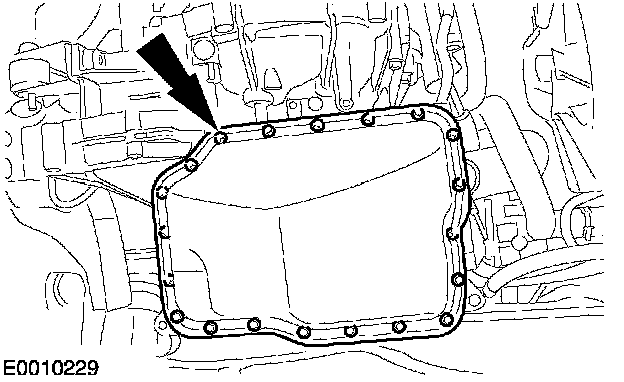

Remove the transaxle fluid pan.
- Remove the bolts.
- Using the special tool, separate the bead of sealer.
3. Clean the silicone from the transaxle fluid pan and transaxle case surfaces thoroughly with metal surface cleaner or equivalent meeting Ford specification.

Installation

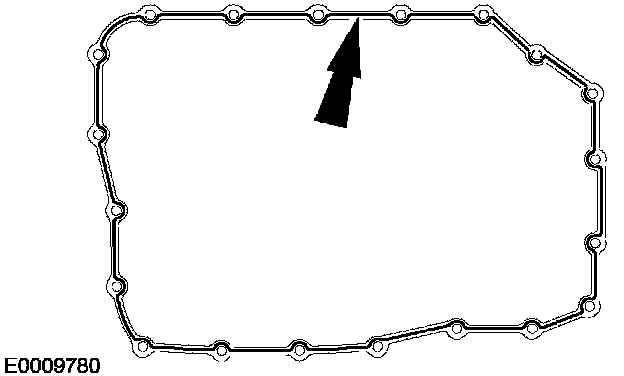

1. Apply a bead one and a half millimeters thick of Loctite 5699 or equivalent meeting Ford specification to the transaxle fluid pan.





2. Install the transaxle fluid pan.
3. Lower the vehicle.
4. Fill the transaxle with new automatic transmission fluid meeting Ford specification.
