Test K

PINPOINT TEST K: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE - LATE BUILD SEDAN

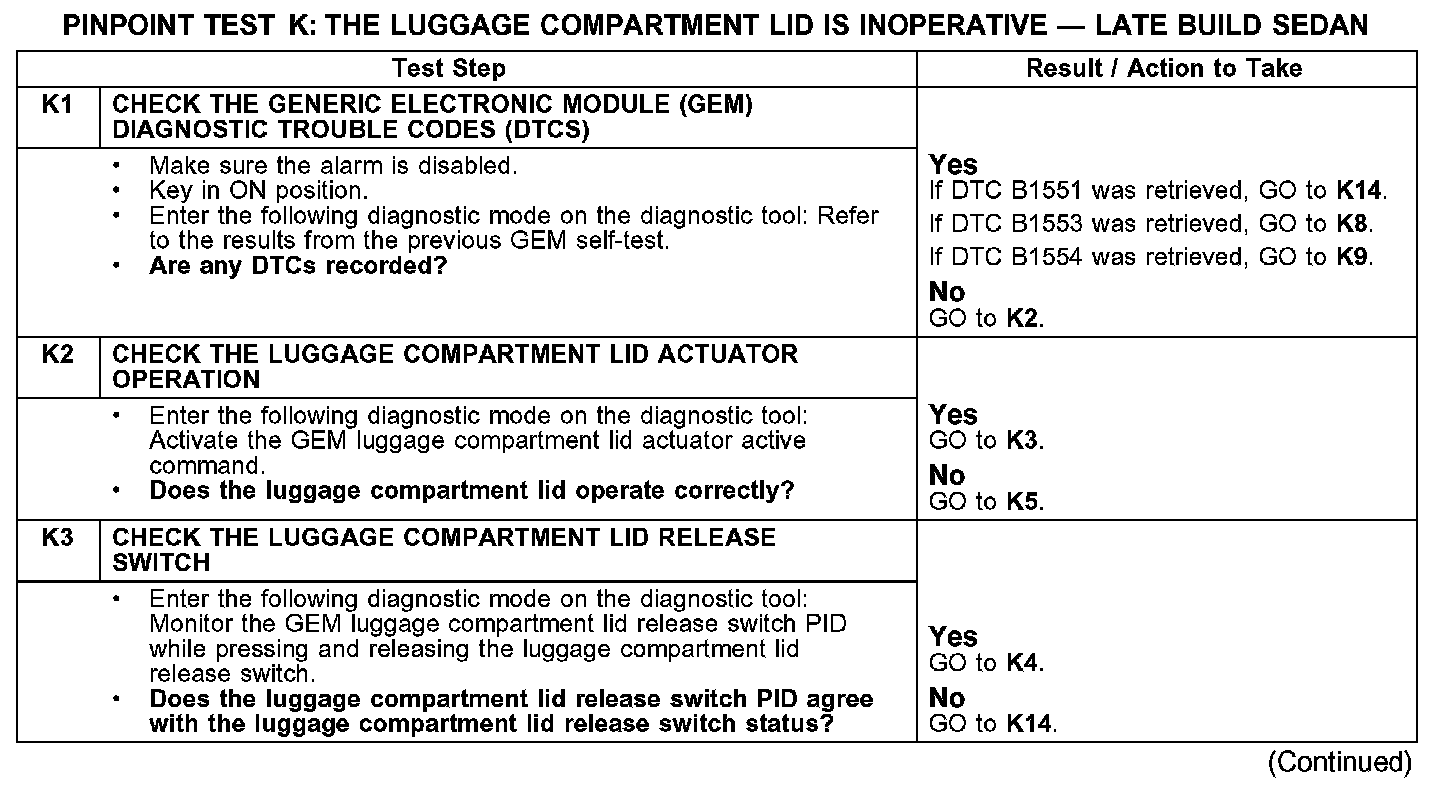

Test K1-K3:

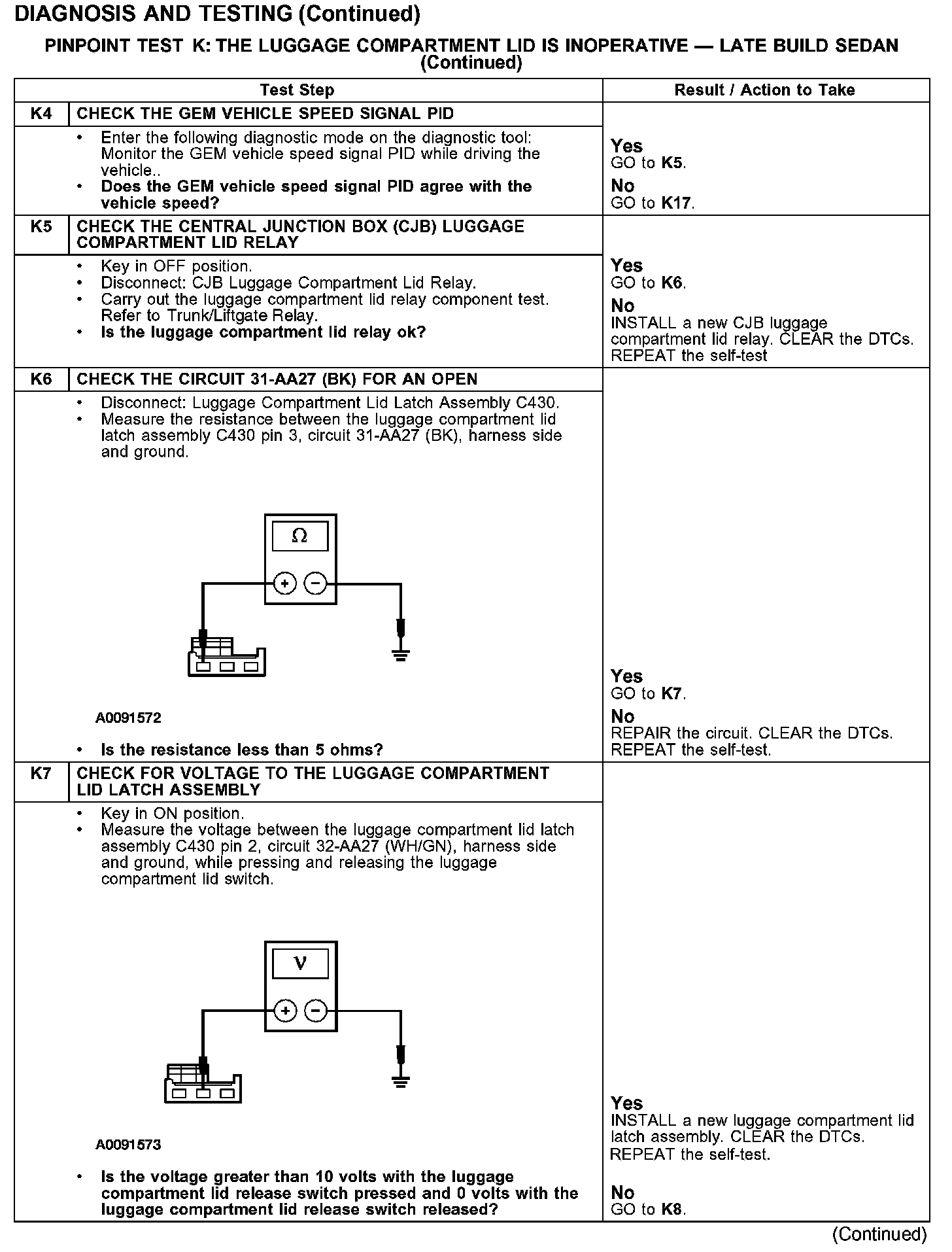

Test K4-K7:

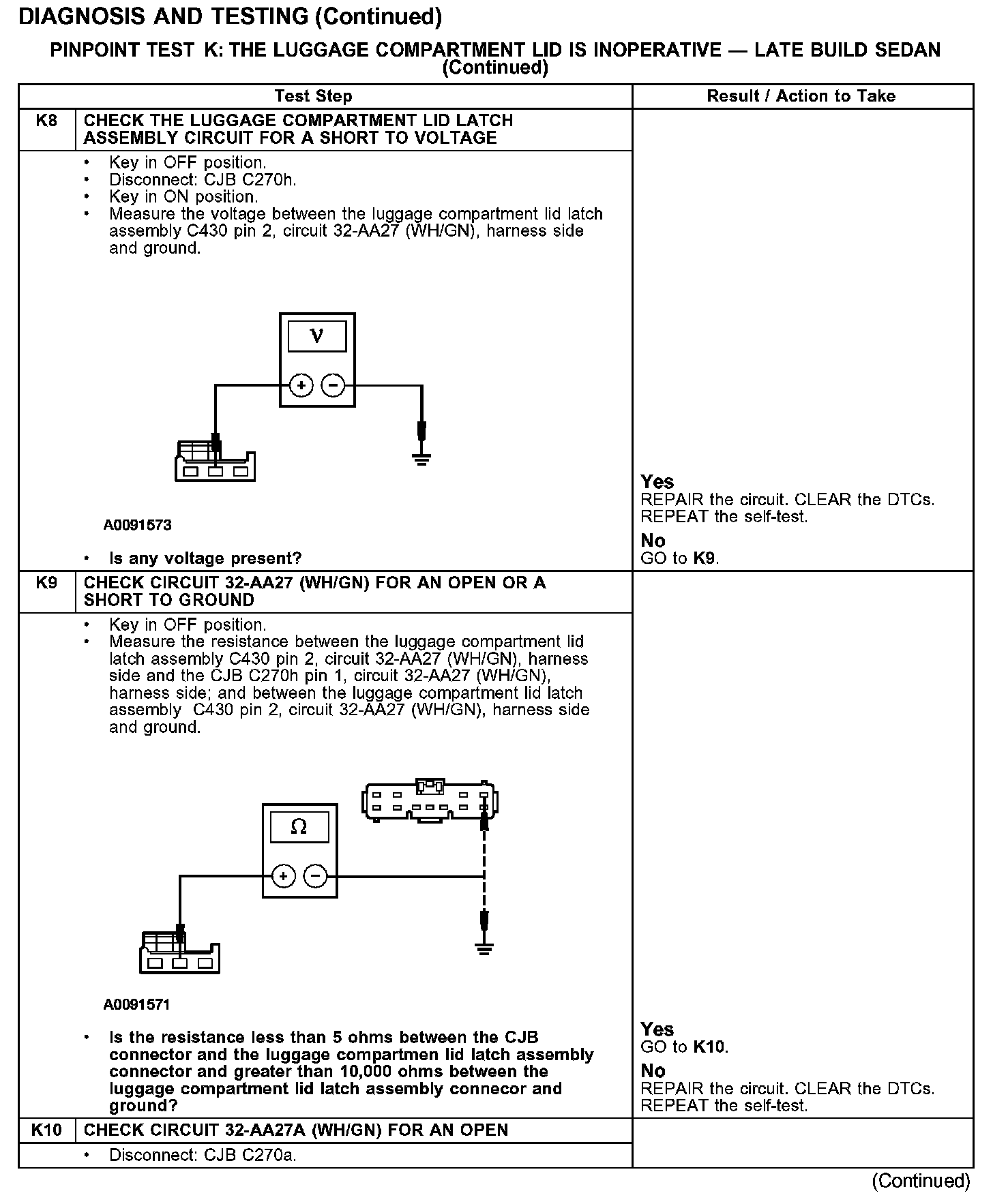

Test K8-K10:

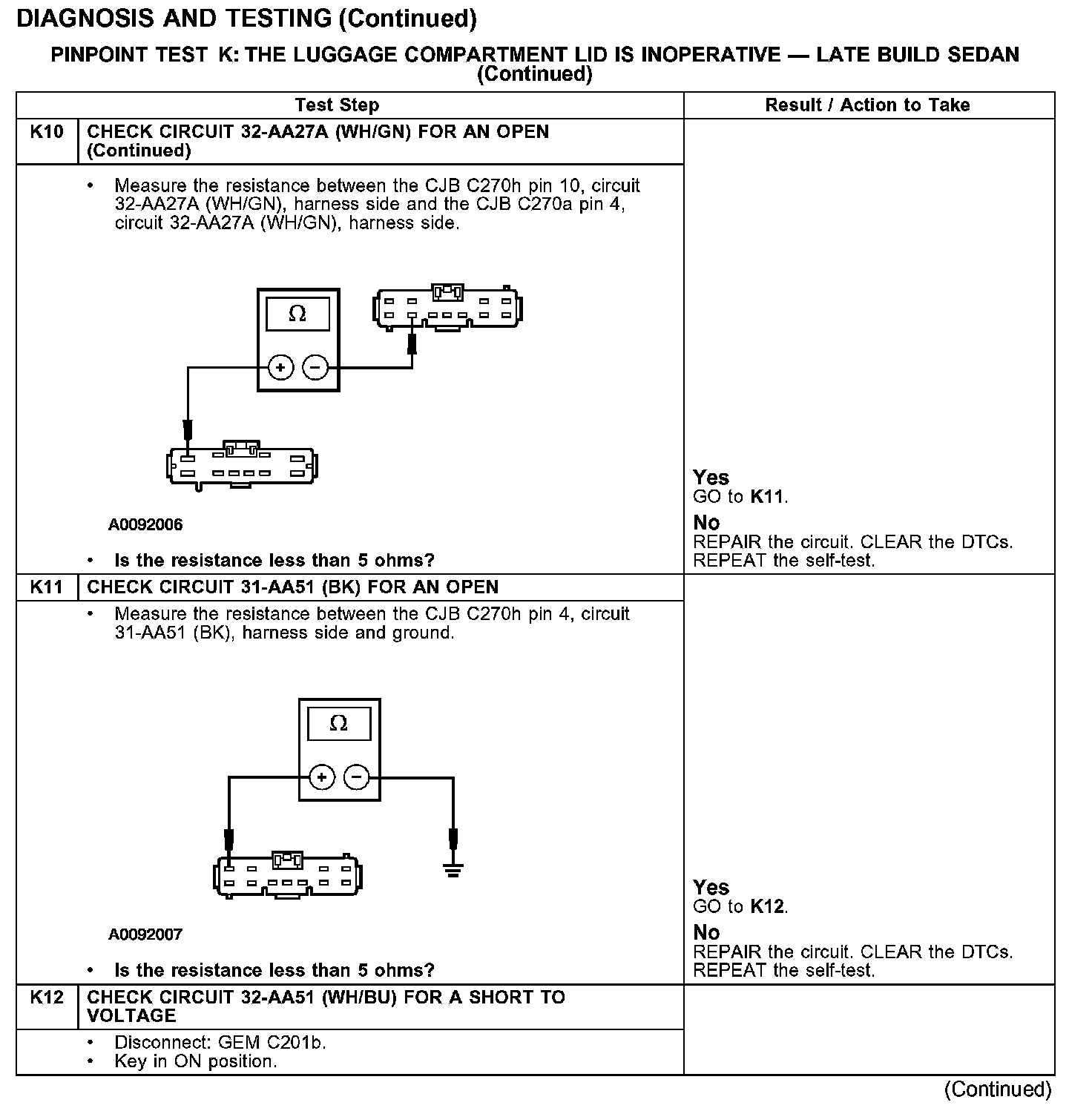

Test K10-K12:






Test K12-K14:

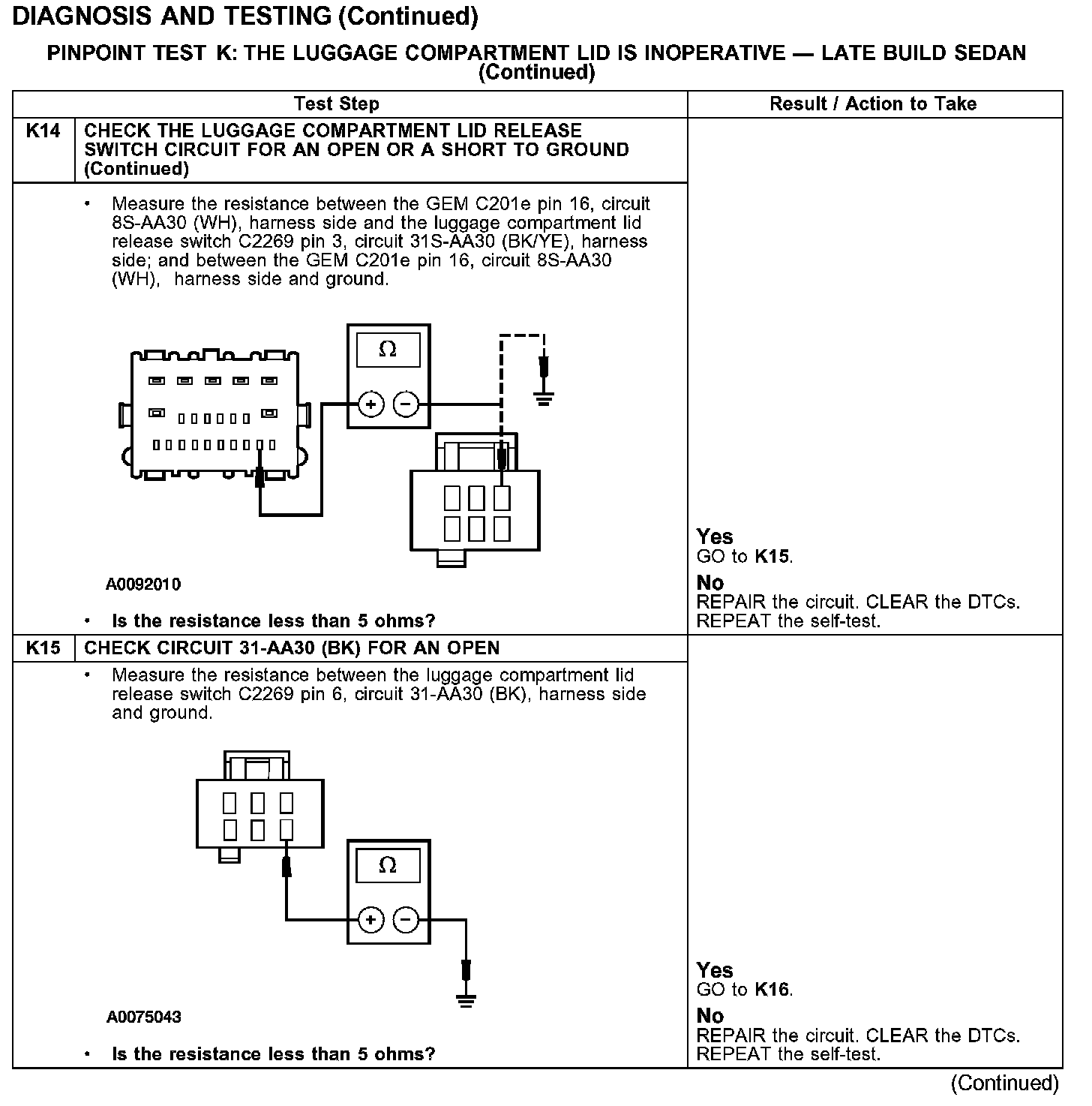

Test K14-K15:

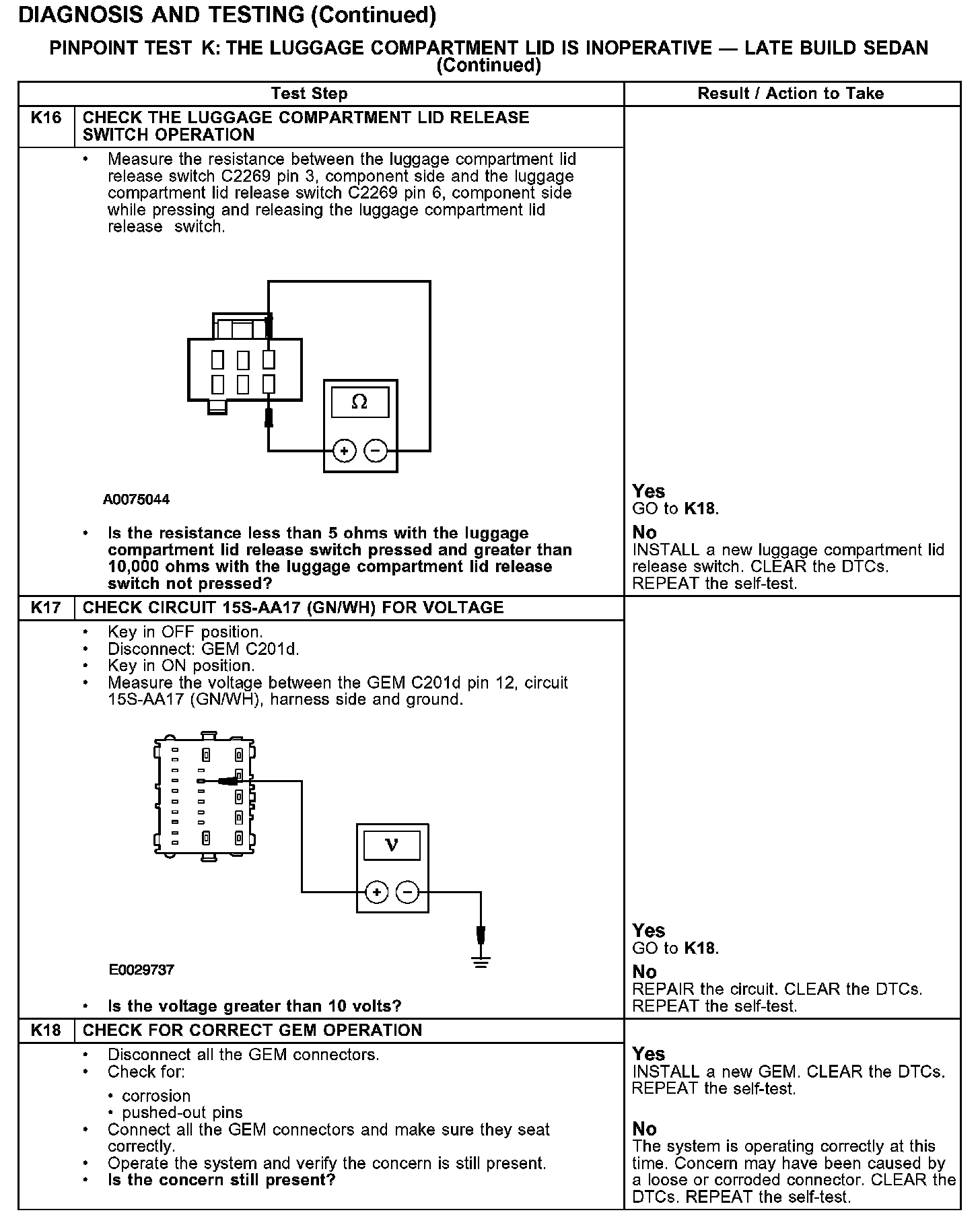

Test K16-K18:
