Water Pump: Service and Repair

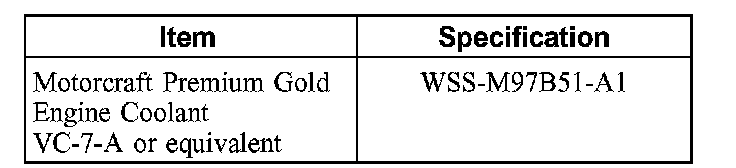

Material:

Material

Removal and Installation
1. Drain the cooling system.
2. Remove the accessory drive belt.

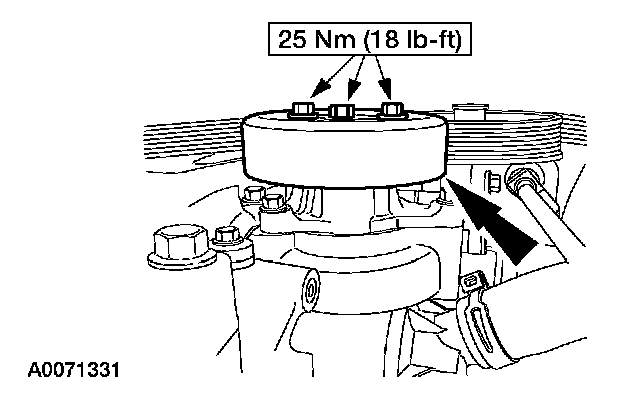

3. Remove the coolant pump pulley bolts and the pulley.

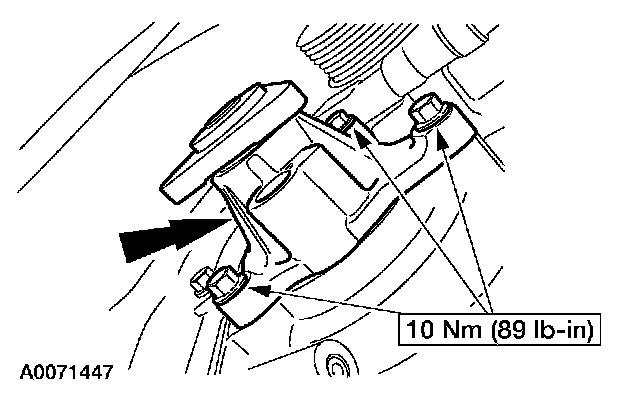

4. Remove the coolant pump retaining bolts and the coolant pump.





5. NOTE: Install a new coolant pump O-ring and lubricate with clean engine coolant.

To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
