Engine Mount LH

Engine Mount - LH

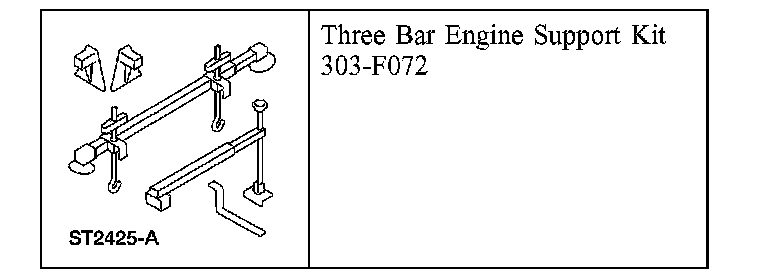

Special Tool(s)

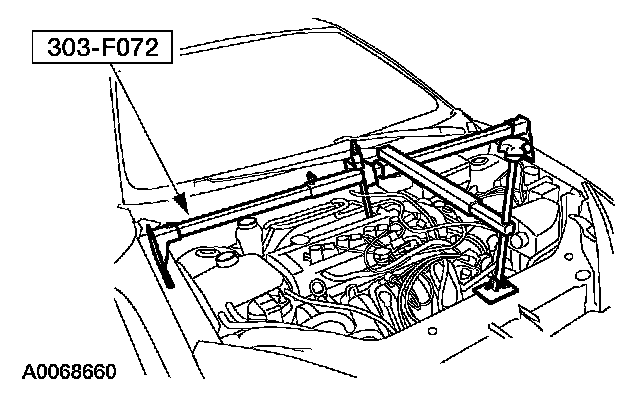

1. Install the special tool.

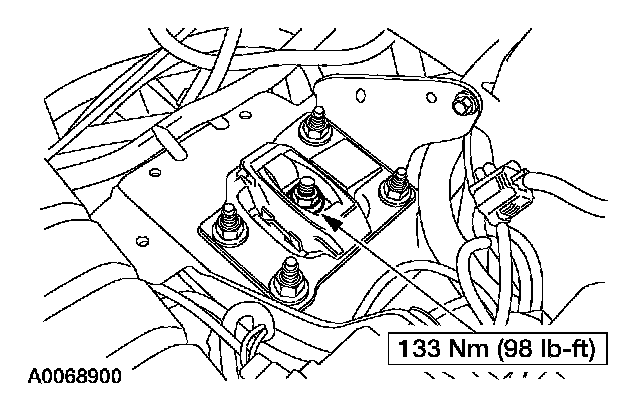

2. Remove the LH motor mount nut.





3. Remove the LH motor mount nuts and the LH motor mount.
4. To install, reverse the removal procedure.
