Engine Mount Lower

Engine Mount - Lower

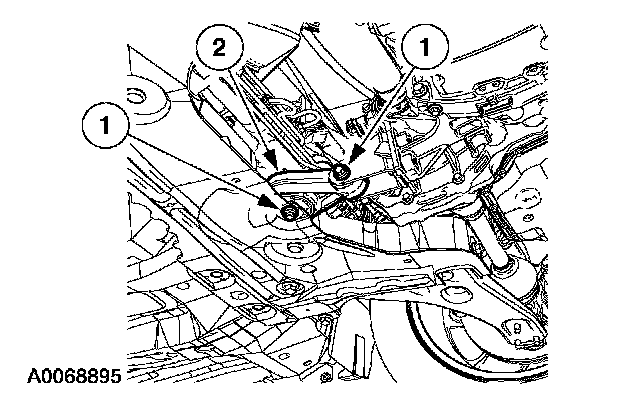

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.





2. Remove the lower motor mount.
1. Remove the two mount bolts.
2. Remove the motor mount.

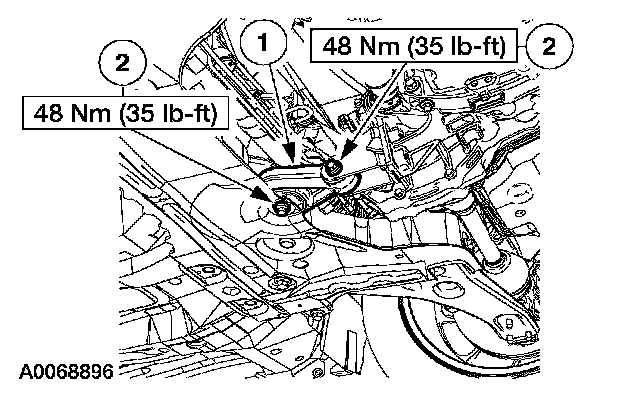

Installation





1. Install the lower motor mount.
1. Install the motor mount.
2. Install the two bolts.
