Engine Mount RH

Engine Mount - RH

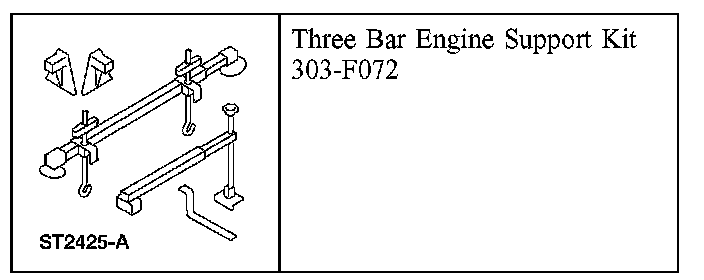

Special Tool(s)

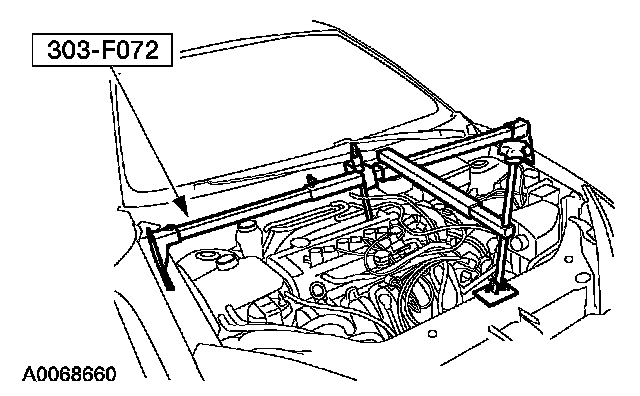

1. Install the special tool.

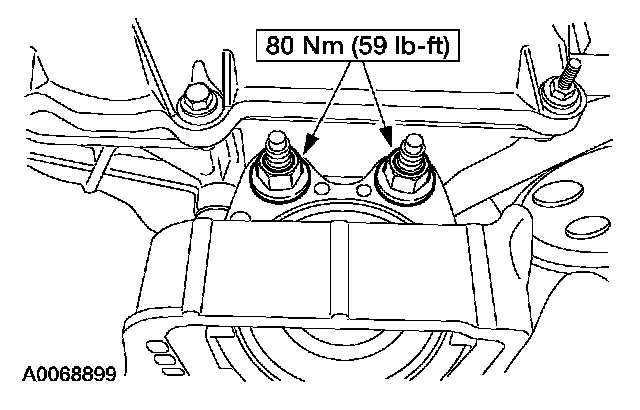

2. Remove the RH motor mount nuts.

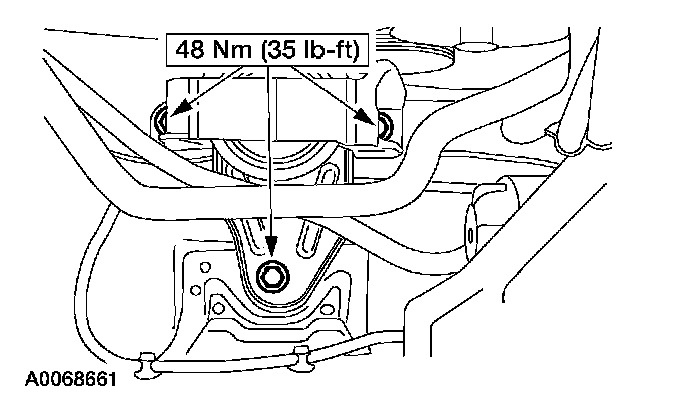

3. Remove the RH motor mounts bolts and the RH motor mount.
4. To install, reverse the removal procedure.
