Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

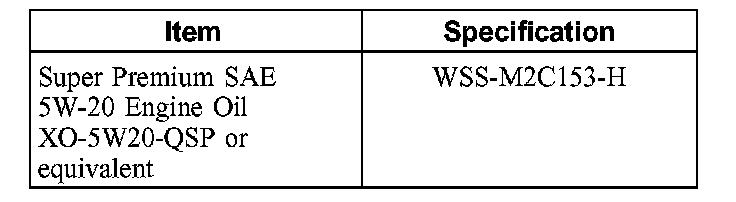

Material

Removal and Installation

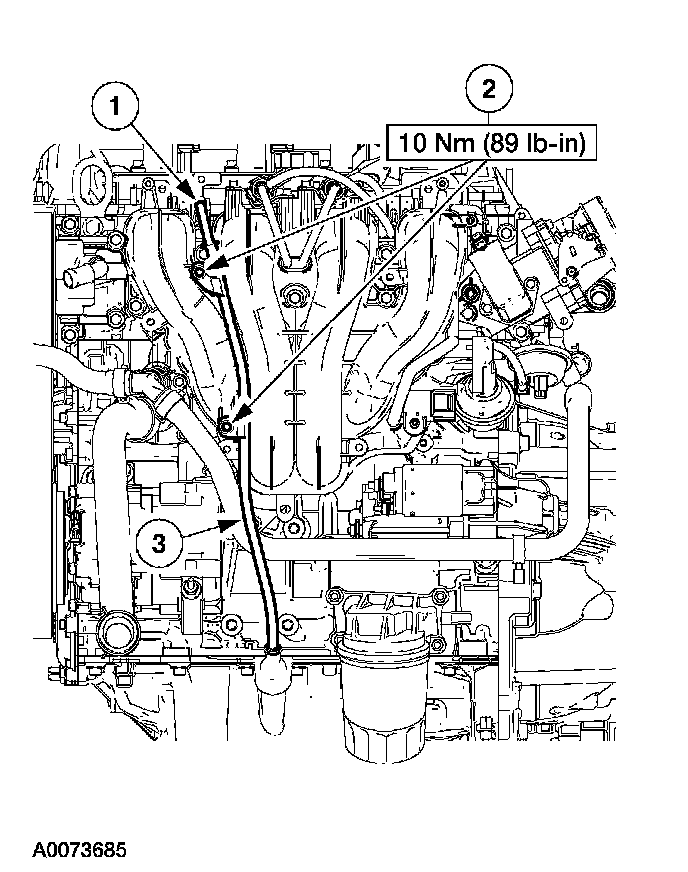

1. Remove the oil level indicator and tube.
1. Remove the oil level indicator.
2. Remove the two bolts.
3. Remove the oil level indicator tube.

2. NOTE: Inspect the O-ring and install new if necessary.

NOTE: Apply clean engine oil to the O-ring before installation of the indicator tube.

To install, reverse the removal procedure.
