Oil Pick Up/Strainer: Service and Repair

Oil Pump Screen and Pickup Tube

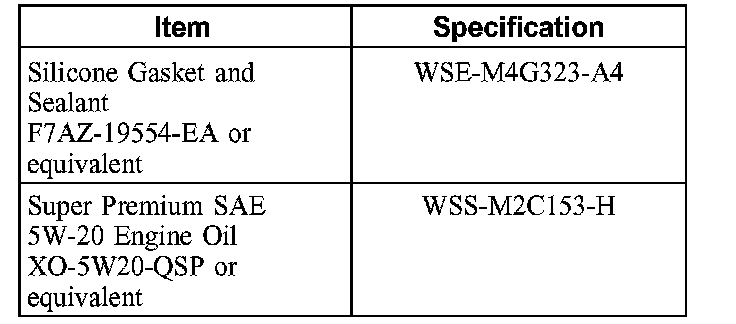

Material

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the oil pan.

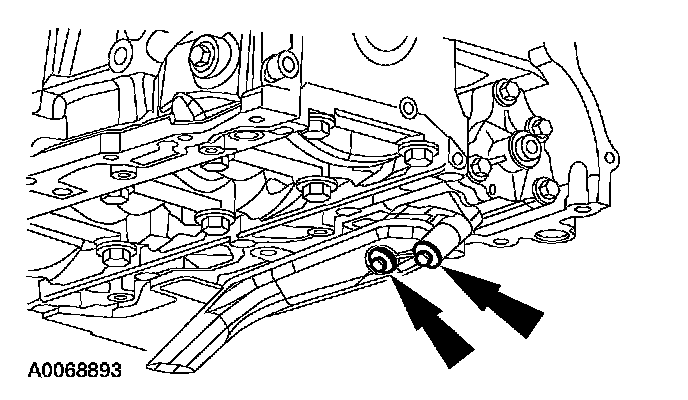

3. Remove the bolts and the oil pump screen and pickup tube.
^ Discard the gasket.

Installation
1. Clean and inspect all mating surfaces.

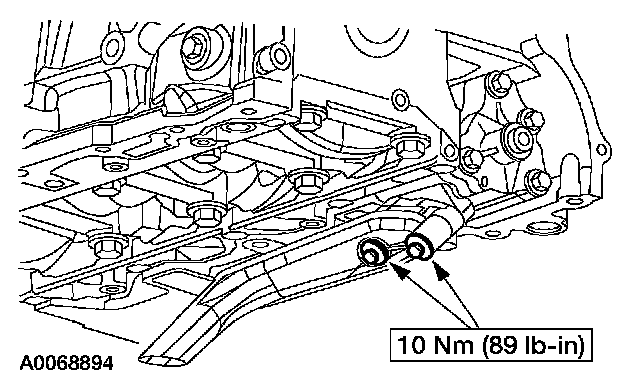

2. Install the oil pump screen and pick-up tube with a new mounting gasket.
3. Install the oil pan.
