Evaporative Check Valve: Service and Repair

FUEL VAPOR CONTROL TUBE ASSEMBLY VALVE

REMOVAL

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or fuel liquid is present in the area. Failure to follow these instructions may result in personal injury.

1. CAUTION: Do not remove the evaporative emission hoses from the assembly as damage can occur to the valve or the fittings. The fuel vapor control valve and hoses are repaired as an assembly only.

Disconnect the battery ground cable.

2. With the vehicle in NEUTRAL, position it on a hoist.

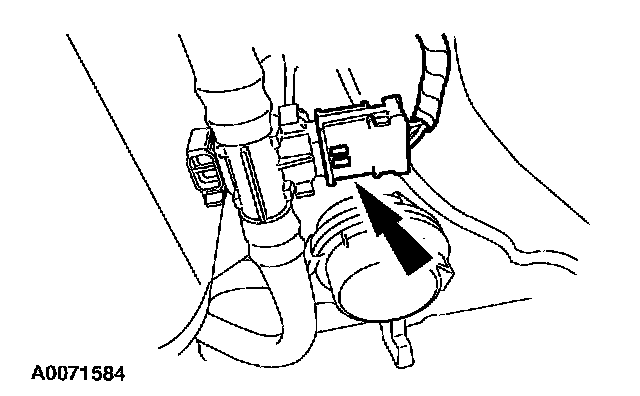

3. Disconnect the electrical connector.

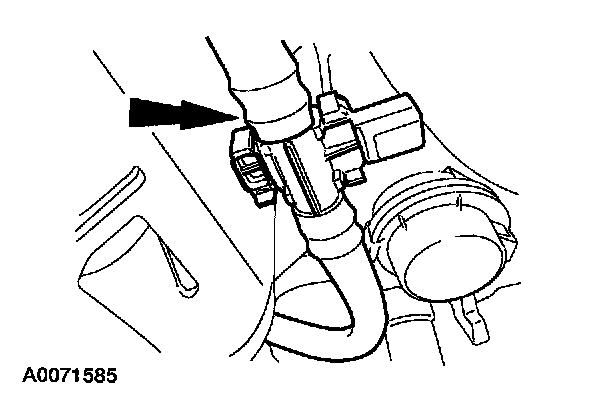

4. Detach the vapor tube retainer from the emissions canister.

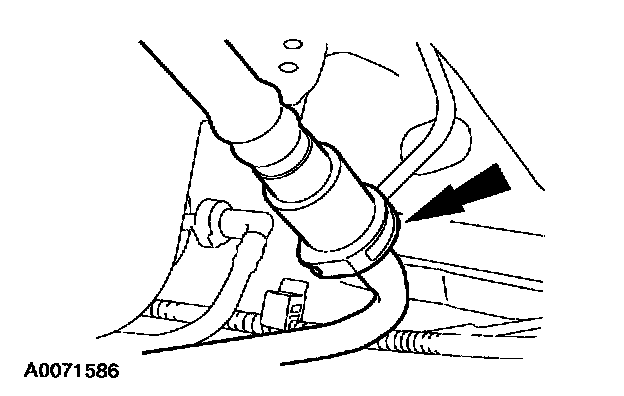

5. Push the quick release tab and disconnect the vapor tube.

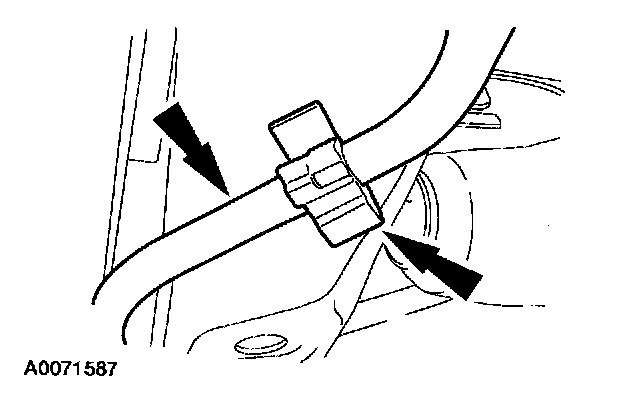

6. Detach the tube from the retainer clip.

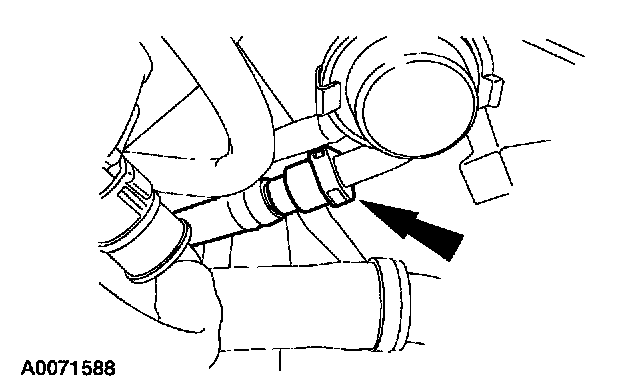

7. Push the quick release tab and disconnect the vapor tube.

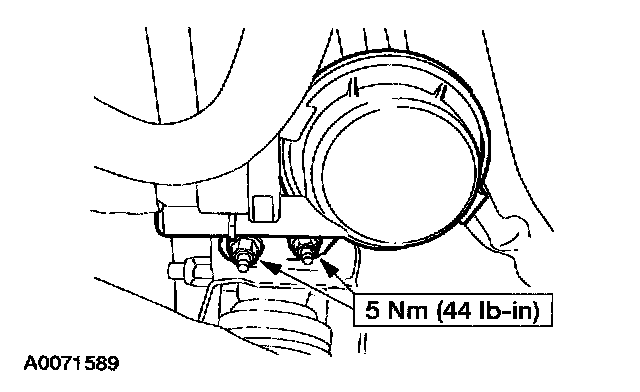

8. Remove the nuts and the valve and tube assembly.

INSTALLATION
1. To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
- Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
