EGR Valve: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VALVE

REMOVAL
1. Drain the cooling system.
2. Remove the battery tray.

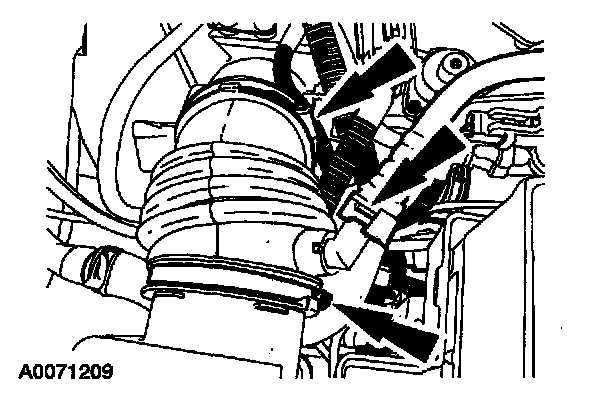

3. Loosen the clamps, disconnect the vent tube and remove the air cleaner outlet pipe.

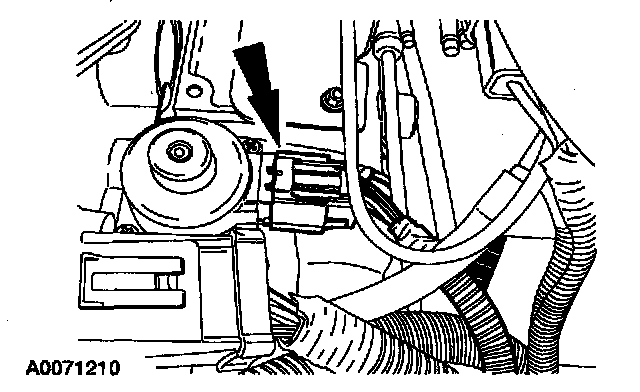

4. Disconnect the electrical connector.

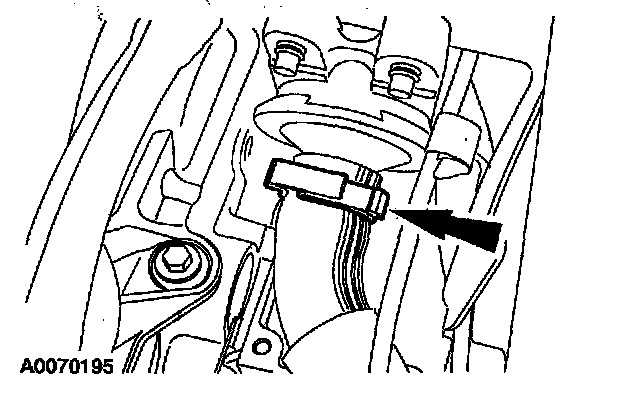

5. Loosen the clamp and disconnect the hose.
- Position the hose aside.

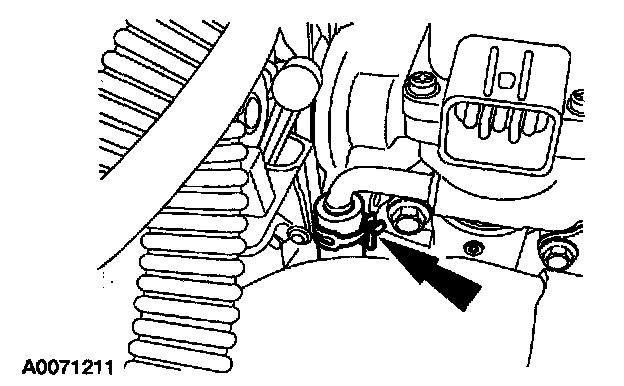

6. Loosen the clamp and disconnect the coolant hose.







7. Remove the bolts and the exhaust gas recirculation (EGR) valve.

INSTALLATION

1. NOTE: Clean and inspect the gasket mating surfaces.

To install, reverse the removal procedure.

2. Fill and bleed the cooling system.
