Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

REMOVAL
1. Remove the intake manifold.

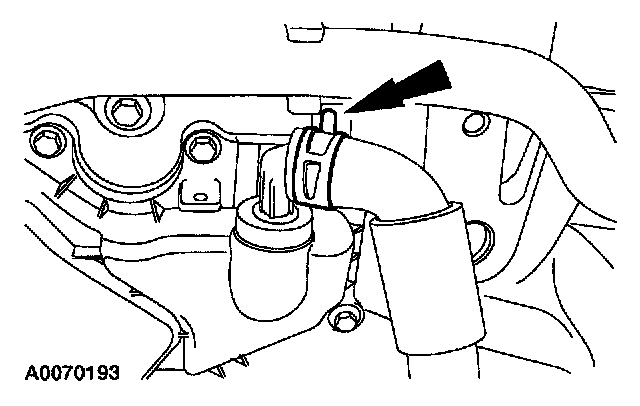

2. Loosen the clamp and disconnect the hose.

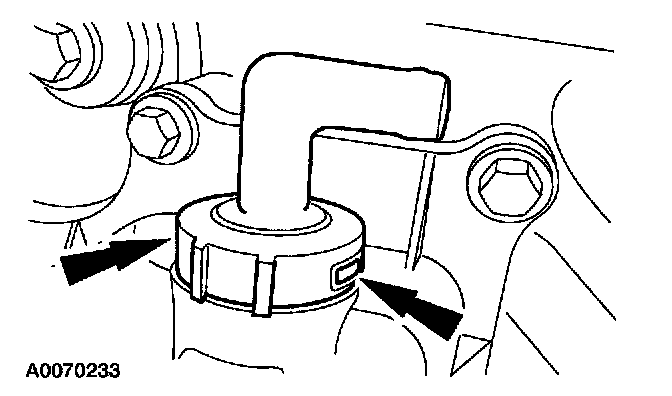

3. Disengage the positive crankcase ventilation (PCV) valve cap from the two tabs and remove the valve.

INSTALLATION
1. To install, reverse the removal procedure.
