Resonator: Service and Repair

INTAKE AIR RESONATOR

REMOVAL

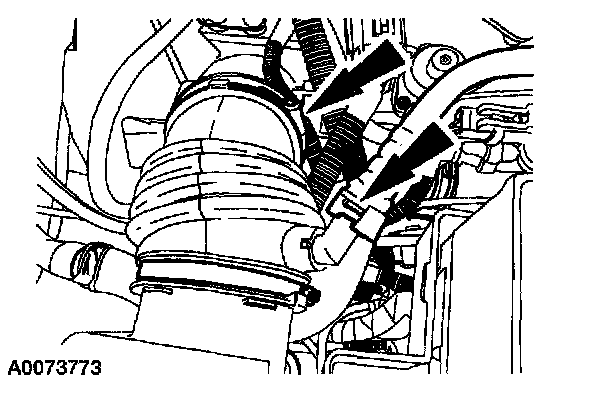

1. Loosen the clamp and disconnect the vent tube from the outlet pipe.







2. Remove the bolts and detach the resonator from the grommets.
- Remove the air intake resonator and outlet pipe.

INSTALLATION
1. To install, reverse the removal procedure.
