Ignition Coil: Service and Repair

IGNITION COIL-ON-PLUG

REMOVAL

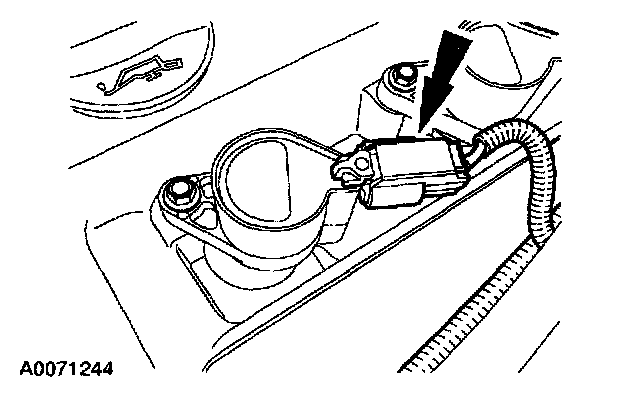

1. Disconnect the electrical connector.

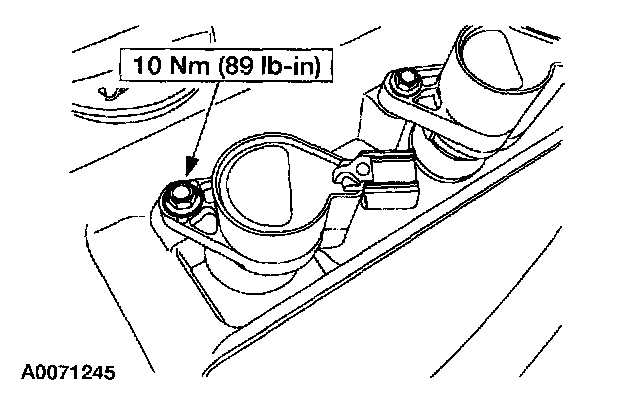

2. Remove the bolt and the ignition coil.

INSTALLATION
1. To install, reverse the removal procedure.
- Apply silicone dielectric compound to the inside of the ignition coil boot.
