Knock Sensor: Service and Repair

KNOCK SENSOR (KS)

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the intake manifold.

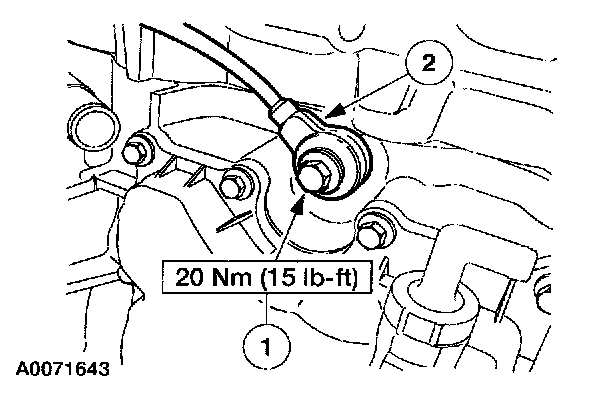

3. Remove the knock sensor (KS).
1 Remove the retaining bolt.
2 Remove the knock sensor.

INSTALLATION
1. To install, reverse the removal procedure.
