Fluid Line/Hose: Service and Repair

Transmission Fluid Cooler Tubes

Removal
1. Raise and support the vehicle.





2. NOTE: Take notice of retaining ring color for correct orientation at installation.

Disconnect the fluid cooler tubes from the transmission fluid cooler.

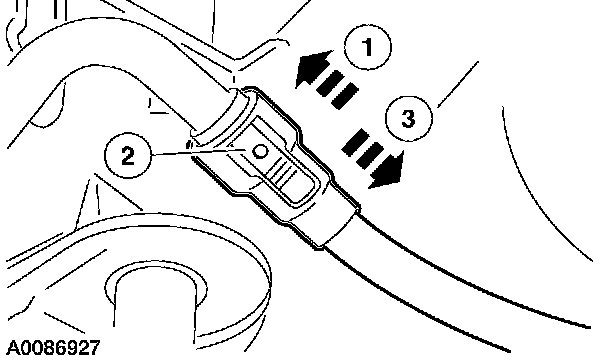

1. Slide the connector fitting into the cooler line.
2. Press the yellow release button.
3. Pull the connector fitting off the cooler line.

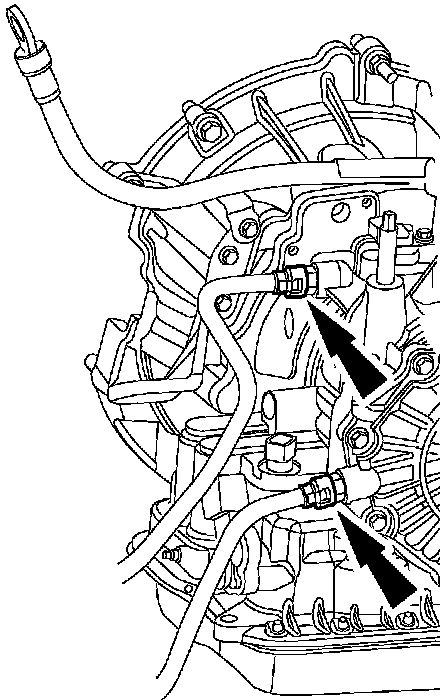

3. NOTE: Do not remove the fluid tube adapter from the transaxle housing.

Disconnect the transaxle fluid cooler tubes from the transaxle.
4. Remove the transaxle fluid cooler tubes from the vehicle.

Installation

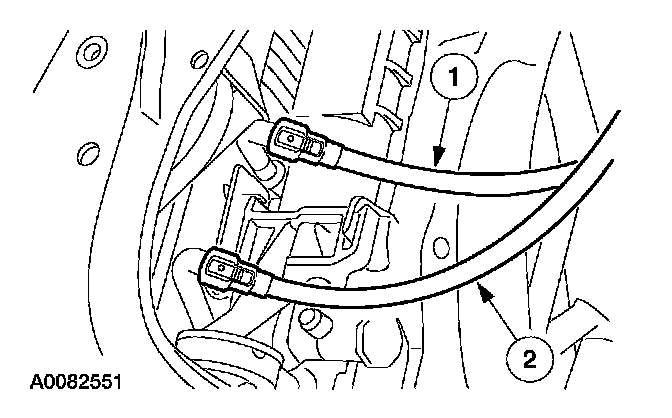

1. Connect the transaxle fluid cooler tubes to the transaxle fluid cooler.
1. Connect the transaxle fluid cooler inlet tube.
2. Connect the transaxle fluid cooler outlet tube.
- Pull back on the connector to confirm that it is locked on the cooler line.

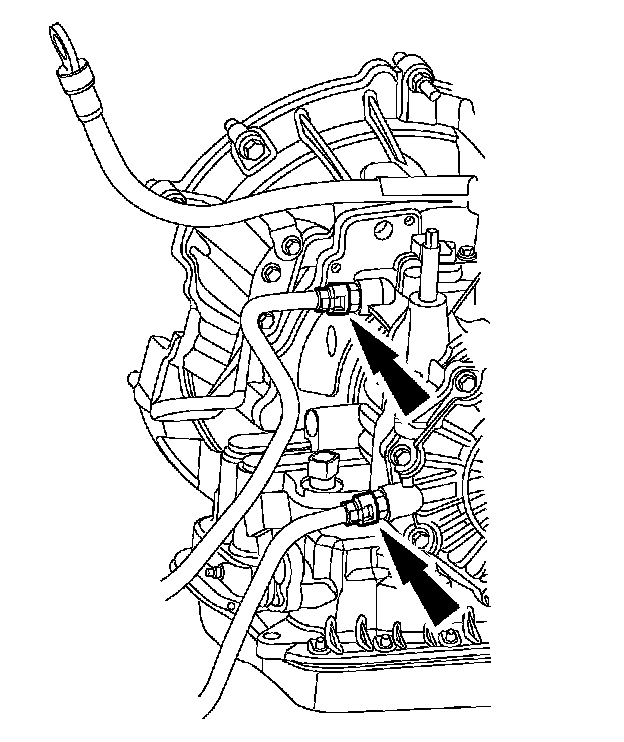

2. Install the transaxle fluid cooler tubes to the transaxle.
3. Lower the vehicle.
4. Fill the transaxle with automatic transmission fluid.
