Disassembly and Assembly

Selector Lever





Material

Disassembly

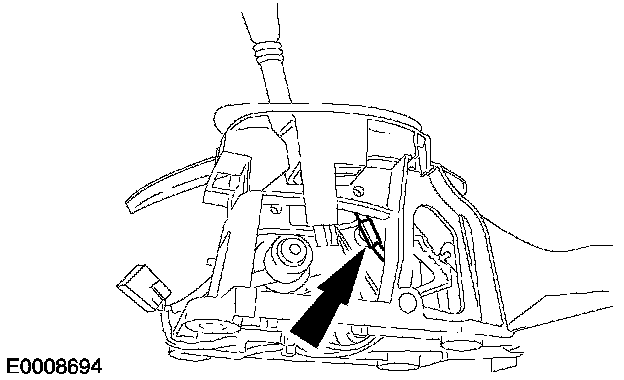

1. NOTE: Use vise jaw protectors for all work to be done in the vise.

Disconnect the overdrive (O/D) switch electrical connector.

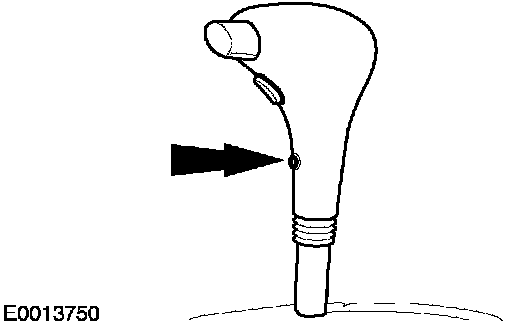

2. Remove the selector lever knob.
- Remove the screw.

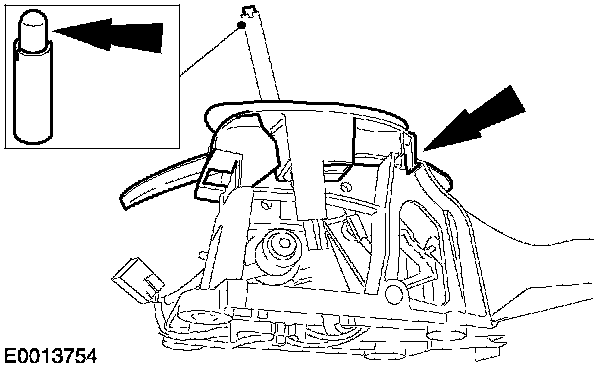

3. Disassemble the selector lever.
- Pull off the tappet.
- Unclip the bezel.

Assembly
1. To assemble, reverse the disassembly procedure.
- Coat all sliding and turning parts with grease.
