Pinpoint Tests - External Controls
Pinpoint Tests - External Controls
PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK PROPERLY/IS BLOCKED

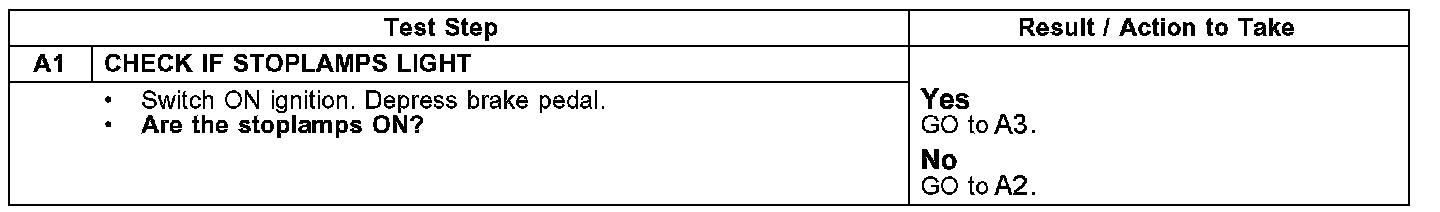

Test A1:

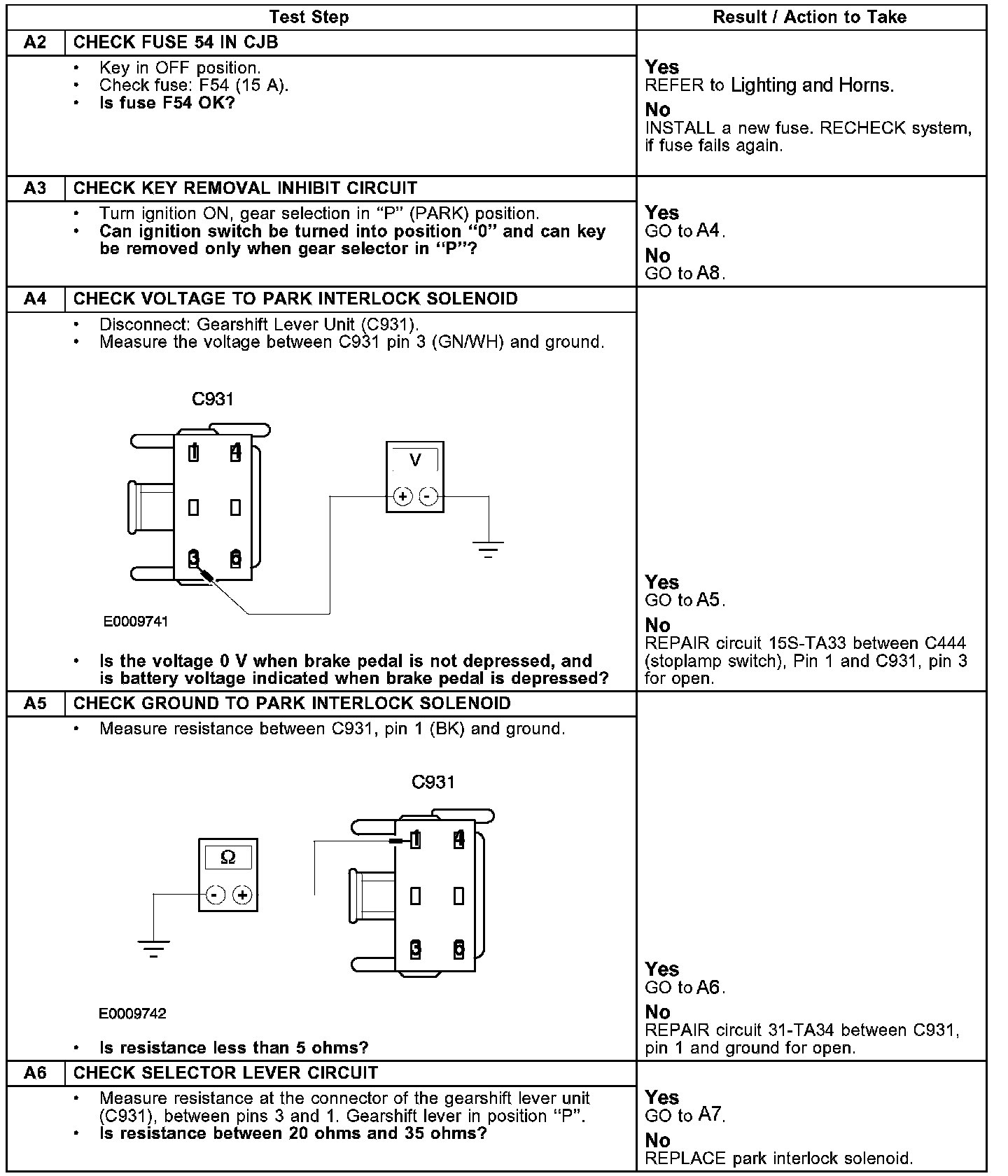

Test A2-A6:

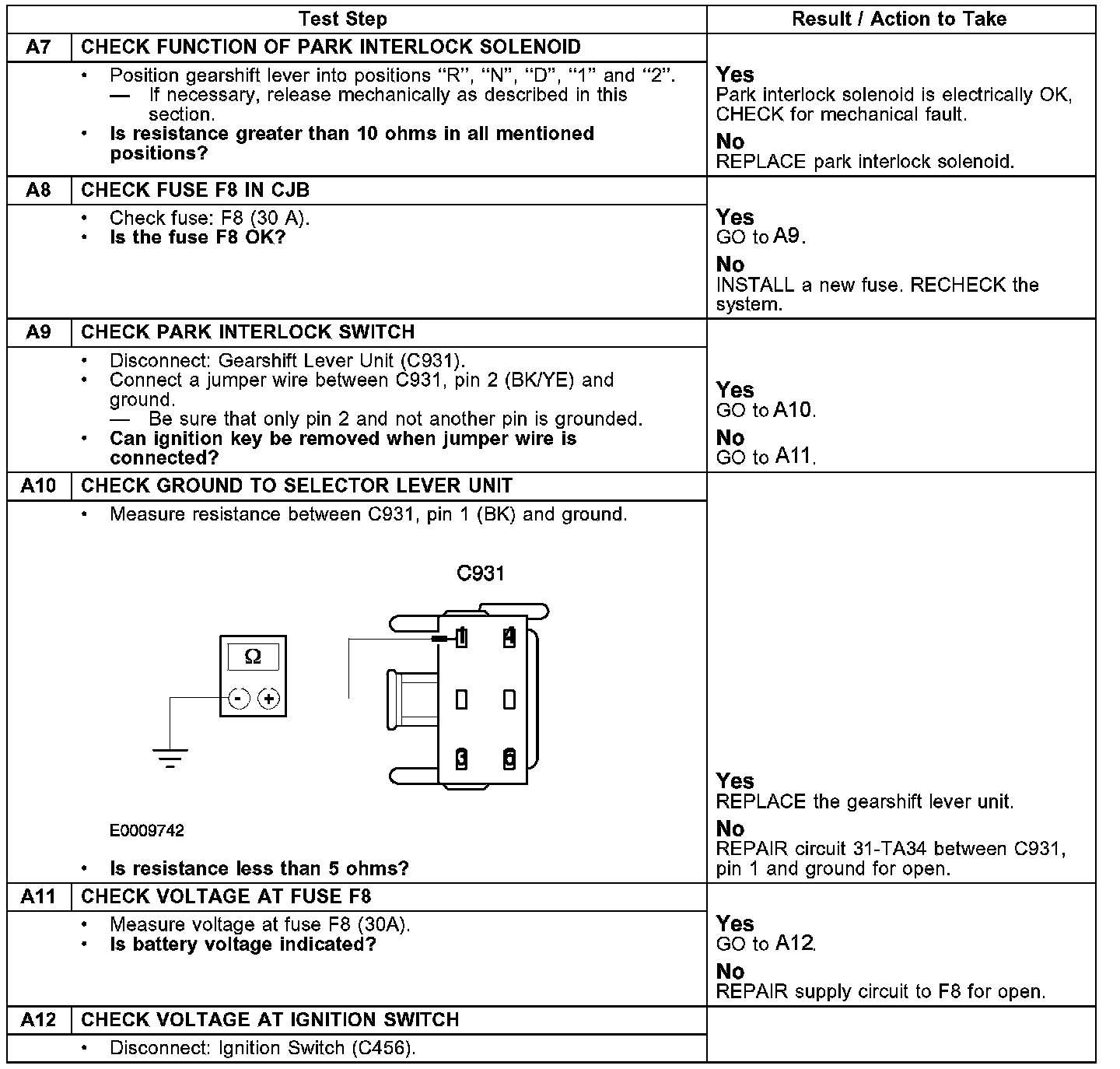

Test A7-A12:

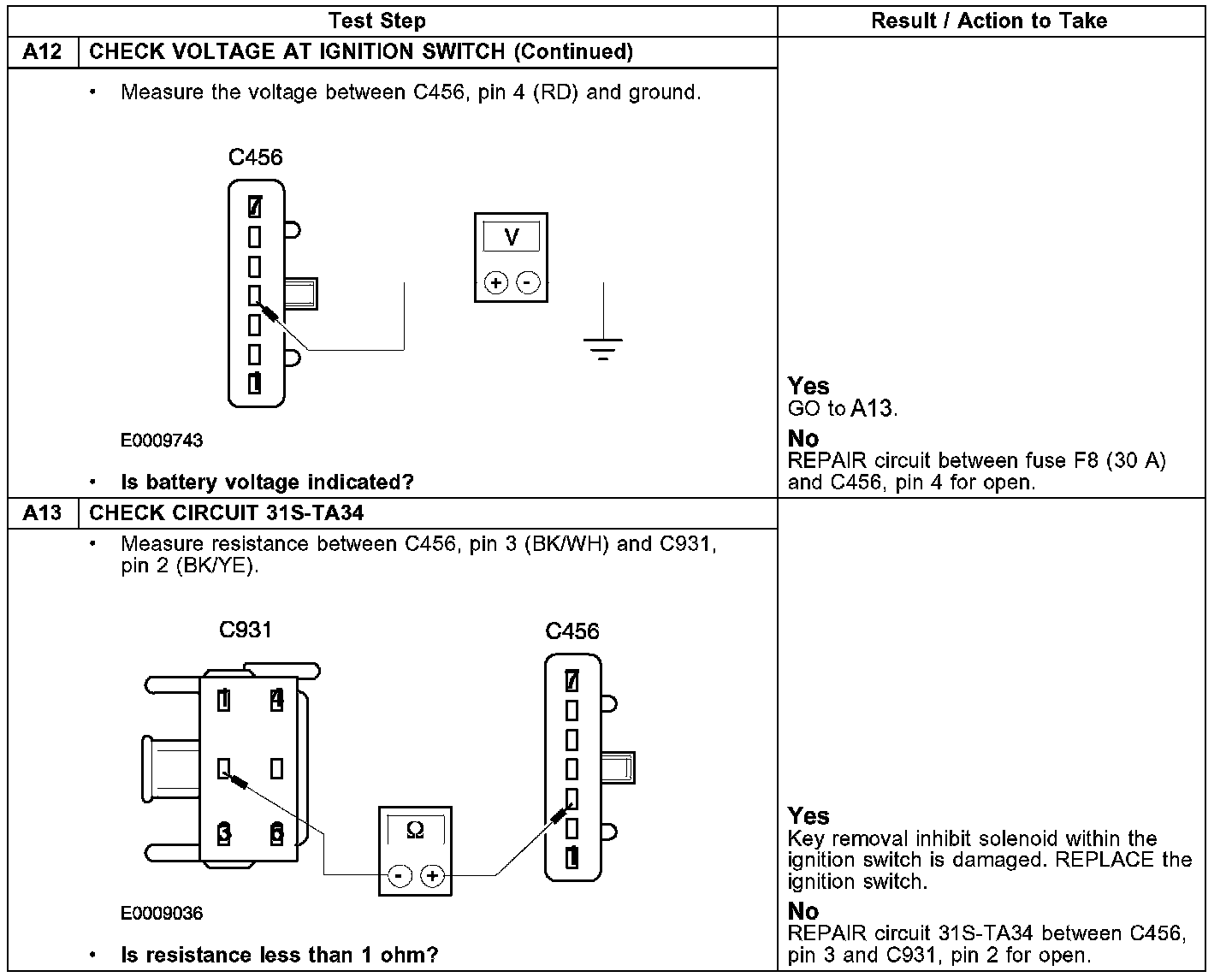

Test A12-A13:
