Transaxle Connector Layouts

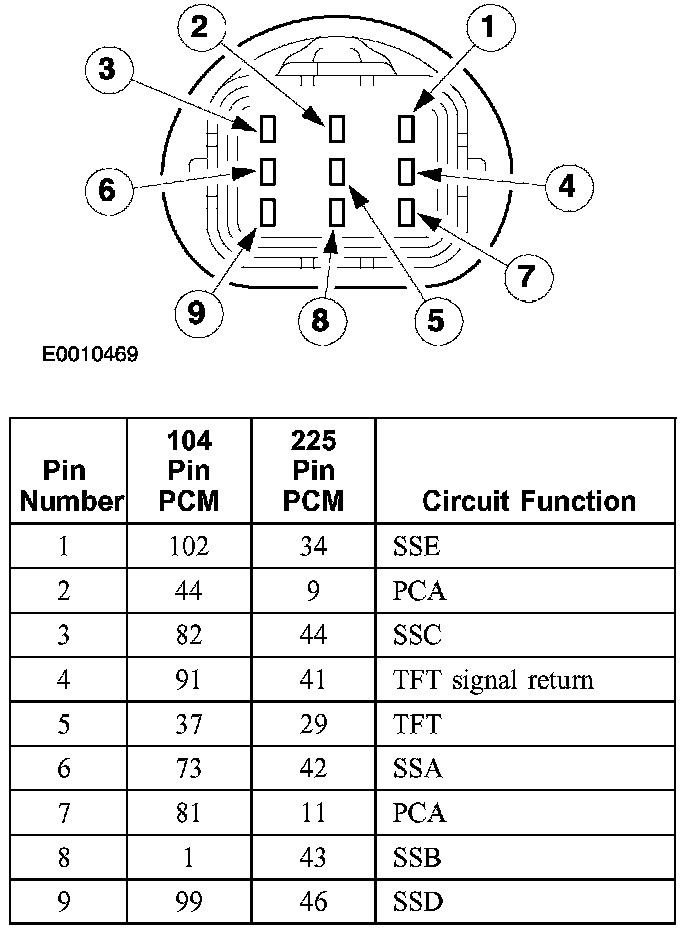

Transaxle Connector Layouts

Part 1:

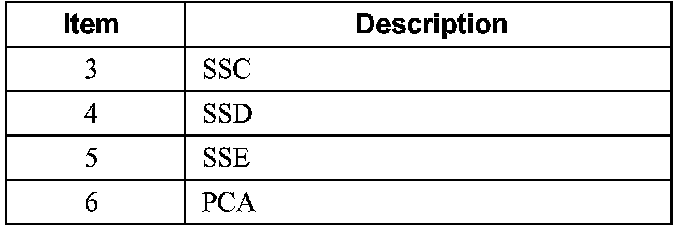

Part 2:

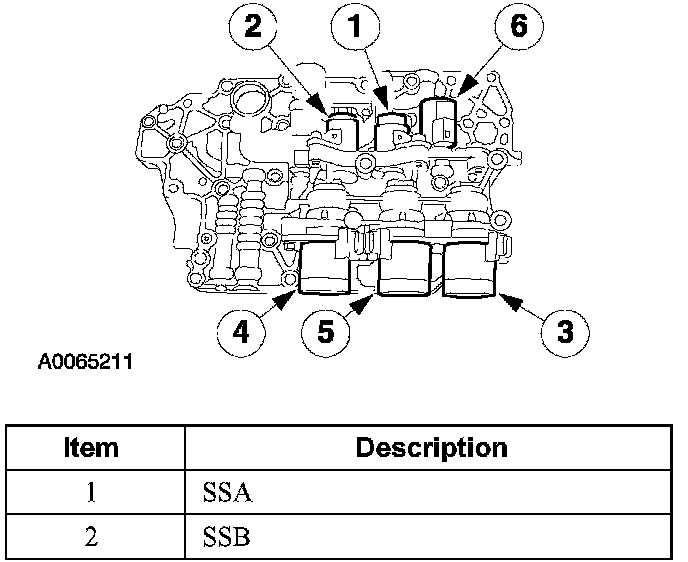

Transaxle Solenoid Location

Part 1:




Part 2:

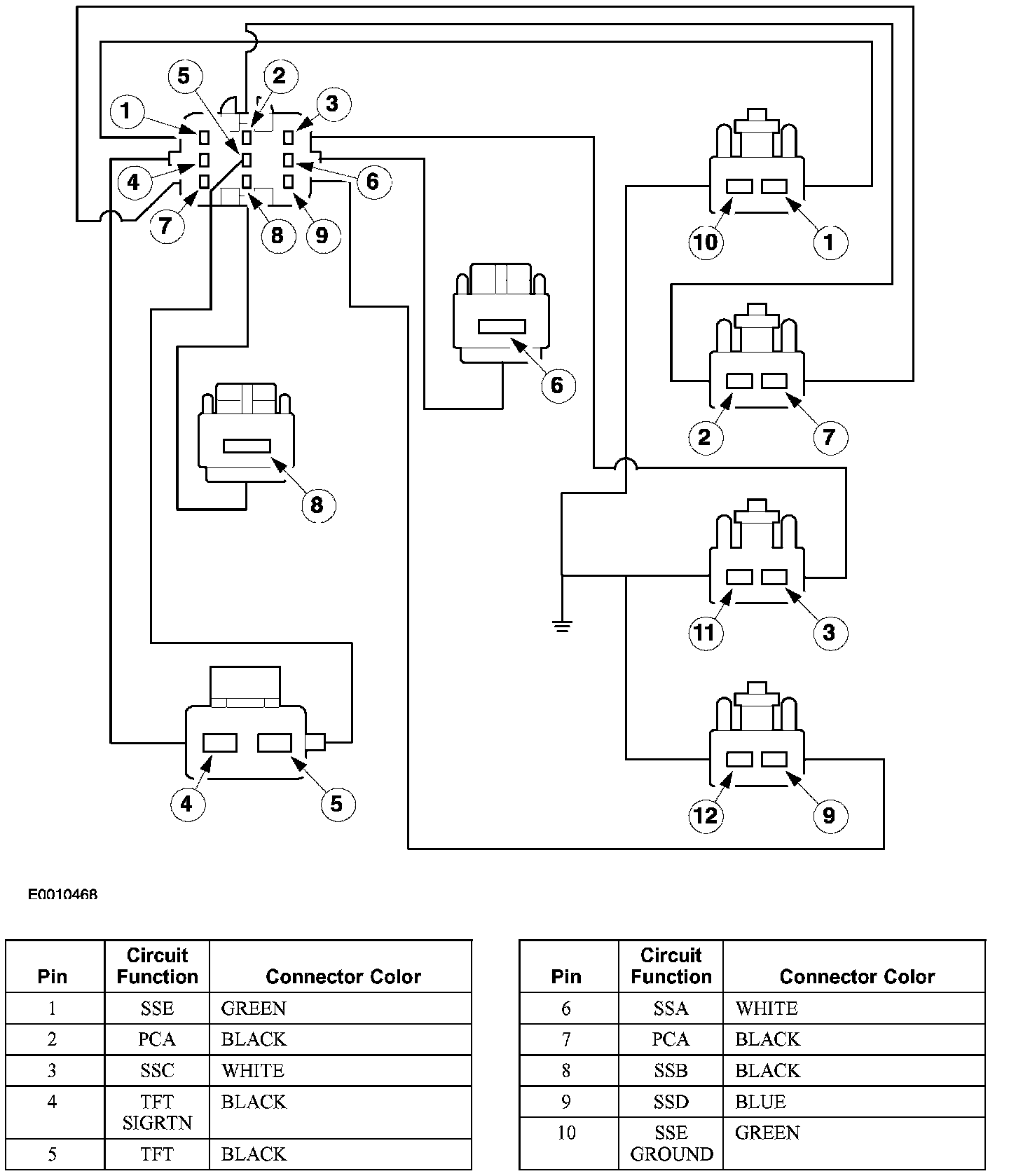

Transaxle Internal Harness Connectors

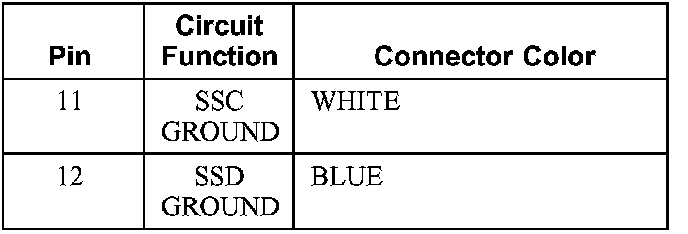

Transaxle Vehicle Harness Connector

Part 1:




Part 2:

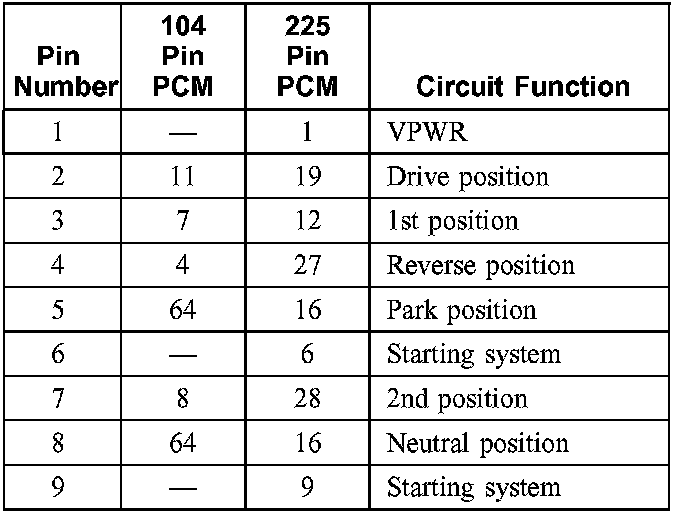

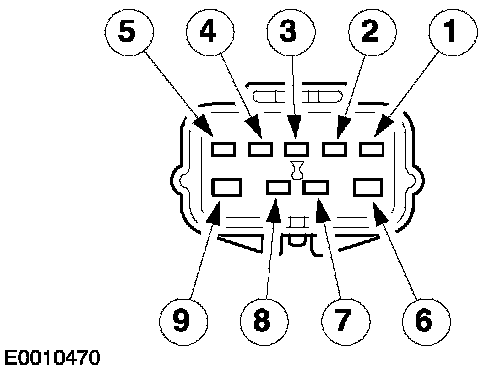

Transmission Range (TR) Sensor Vehicle Harness Connector

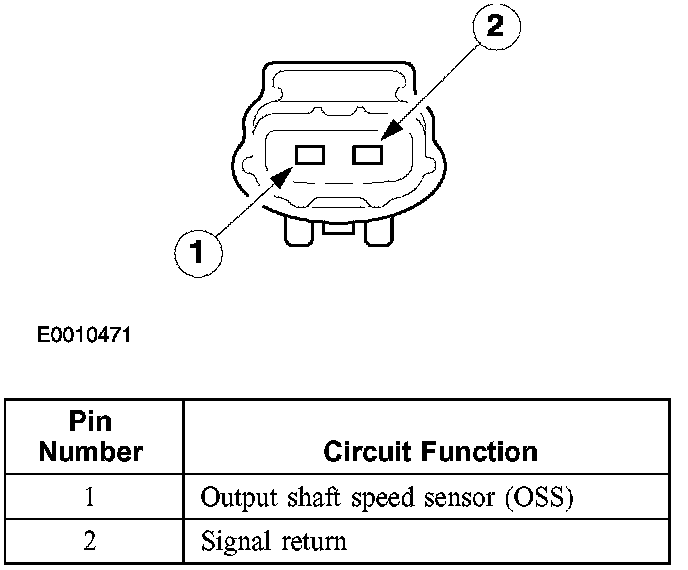

Output Shaft Speed Sensor (OSS) Vehicle Harness Connector

Part 1:




Part 2:

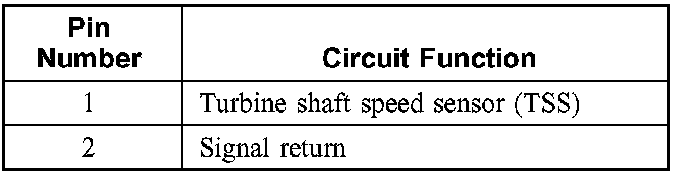

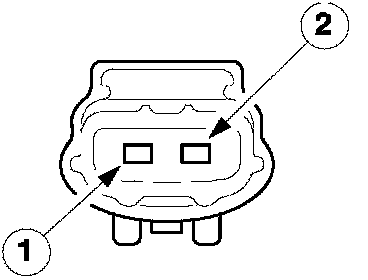

Turbine Shaft Speed (TSS) Sensor Vehicle Harness

Part 1:




Part 2:

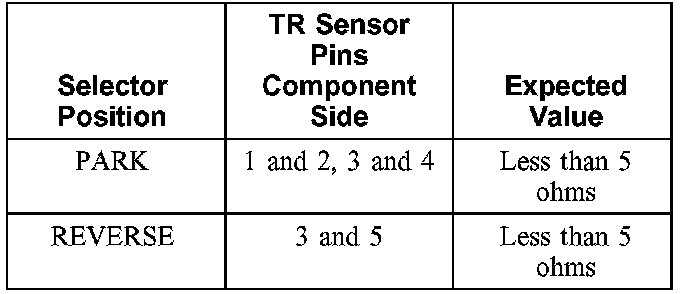

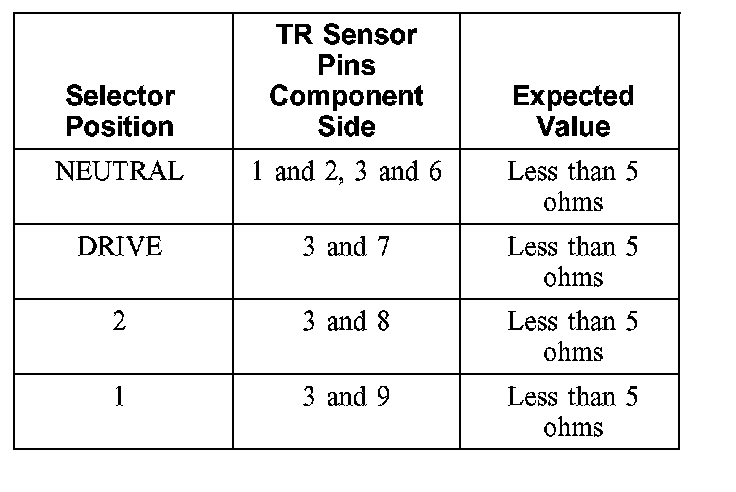

Transmission Range (TR) Sensor Diagnosis Chart
