Gearshift Control Shaft Seal

Gearshift Control Shaft Seal

Removal
1. Engage the third gear.
2. Raise the vehicle.

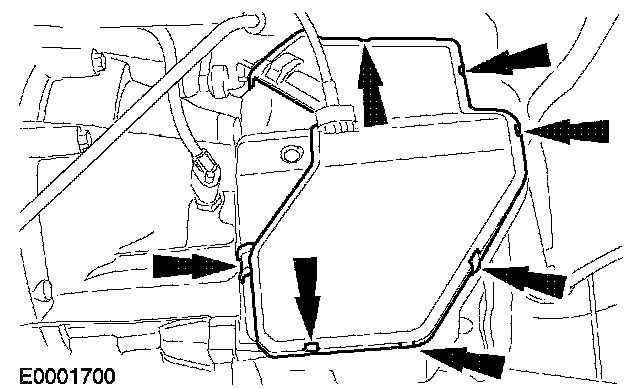

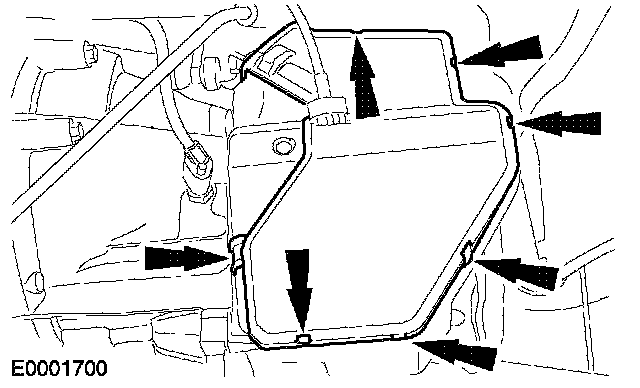

3. Open the cover on the shift and selector cable.

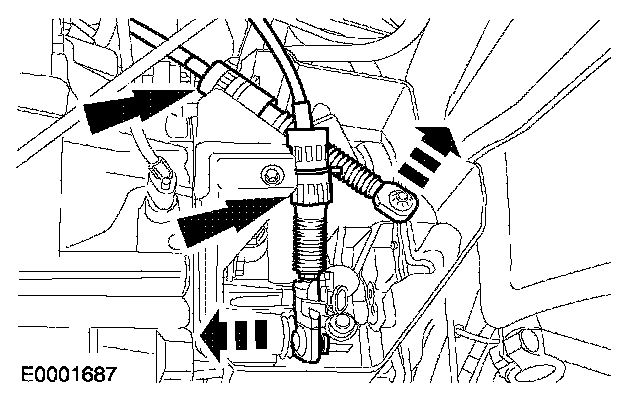

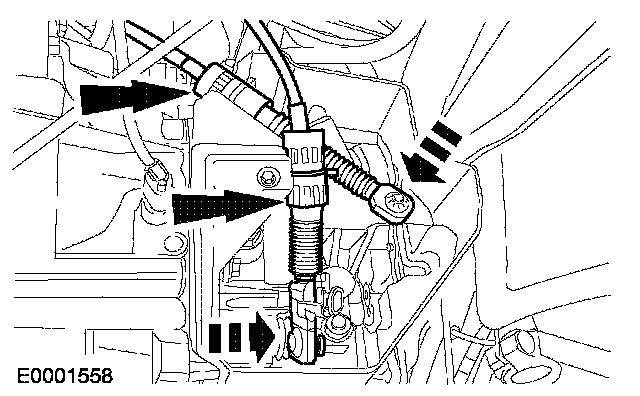

4. Remove the shift and selector cable.
- Remove the shift and selector cable end fittings from the shift and selector lever.
- Remove the shift and selector cable from the bracket by turning the lower part of abutment clockwise and the upper part counter clockwise.

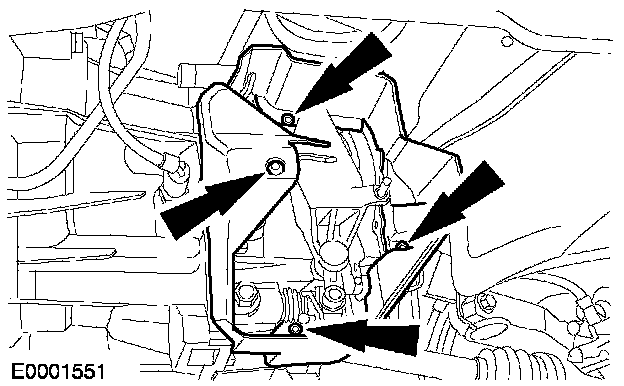

5. Remove the shift and selector cable cover.

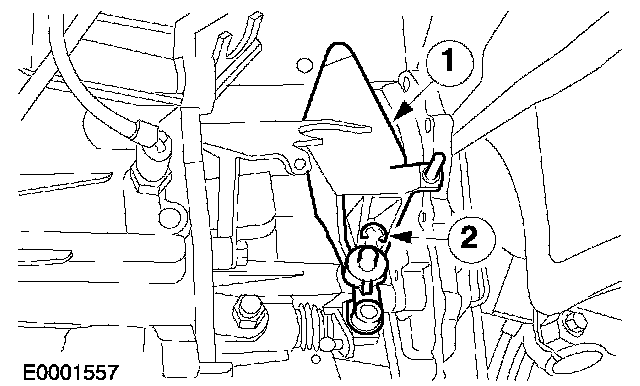

6. Remove the shift lever.
1. Remove the rubber cap and the securing clip.
2. Remove the shift lever.
- Remove the boot from the selector lever.

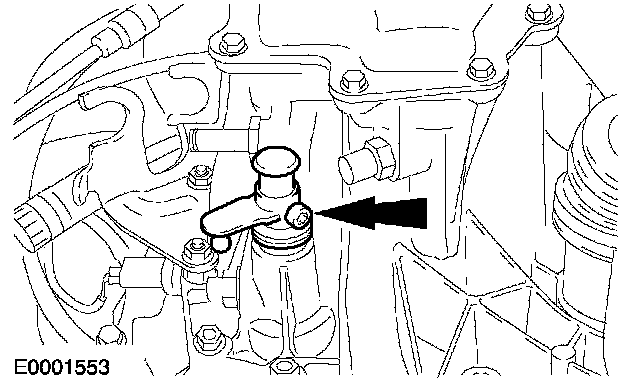

7. Remove the selector lever.

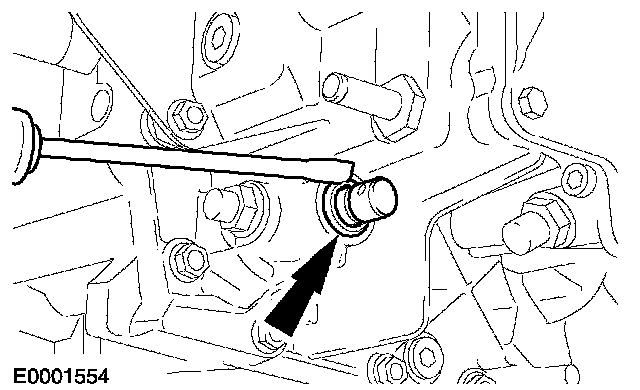

8. Remove the gearshift control shaft oil seal.
- Clean up the shaft.

Installation

1. NOTE: The third gear must be engaged.

Remove the boot from the new oil seal.





2. CAUTION: Make sure that there is no adhesive tape lost under the sealing lip of the gearshift control shaft oil seal.

NOTE: Install a thin adhesive tape to the gear shaft to avoid damages of the oil seal from the bore or from the ring groove.

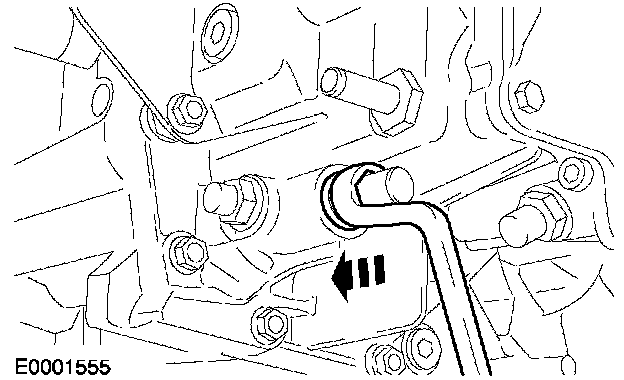

Using a wrench, install the gearshift control shaft oil seal.
- Install the boot.





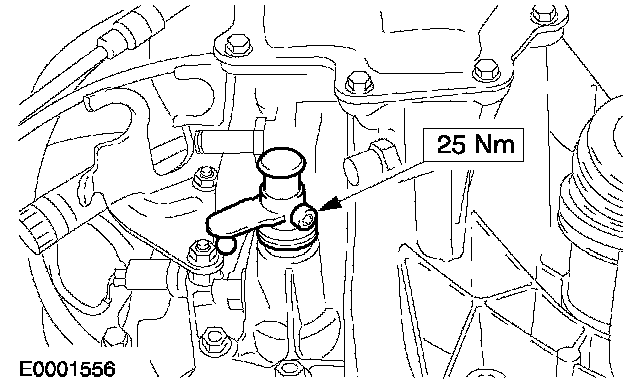

3. Install the selector lever.

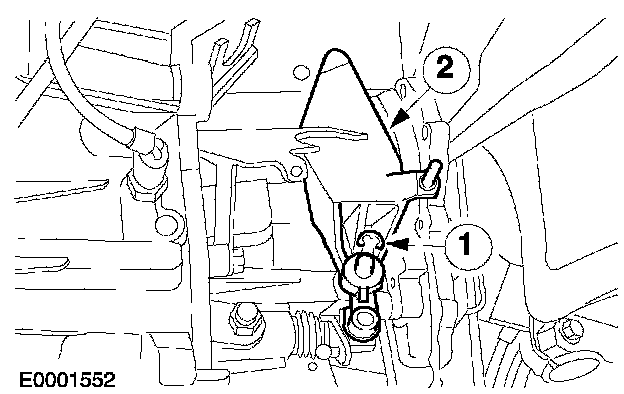

4. Install the shift lever.
1. Insert the shift lever.
2. Install the securing clip and the rubber cap.
- Install the boot to the selector lever.

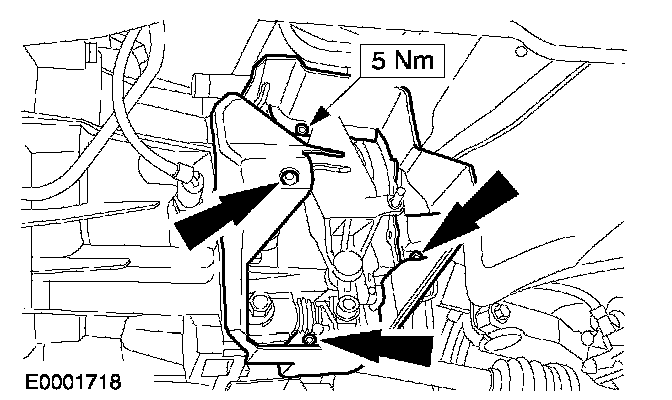

5. Install the shift and selector cable cover.





6. Install the shift and selector cable.
- Install the shift and selector cable end fittings to the shift and selector lever.
- Install the shift and selector cable to the bracket by turning the lower part of abutment clockwise and the upper part counter clockwise.





7. Close the cover on the shift and selector cable.
8. Lower the vehicle.
