Halfshaft Seal RH

Halfshaft Seal RH

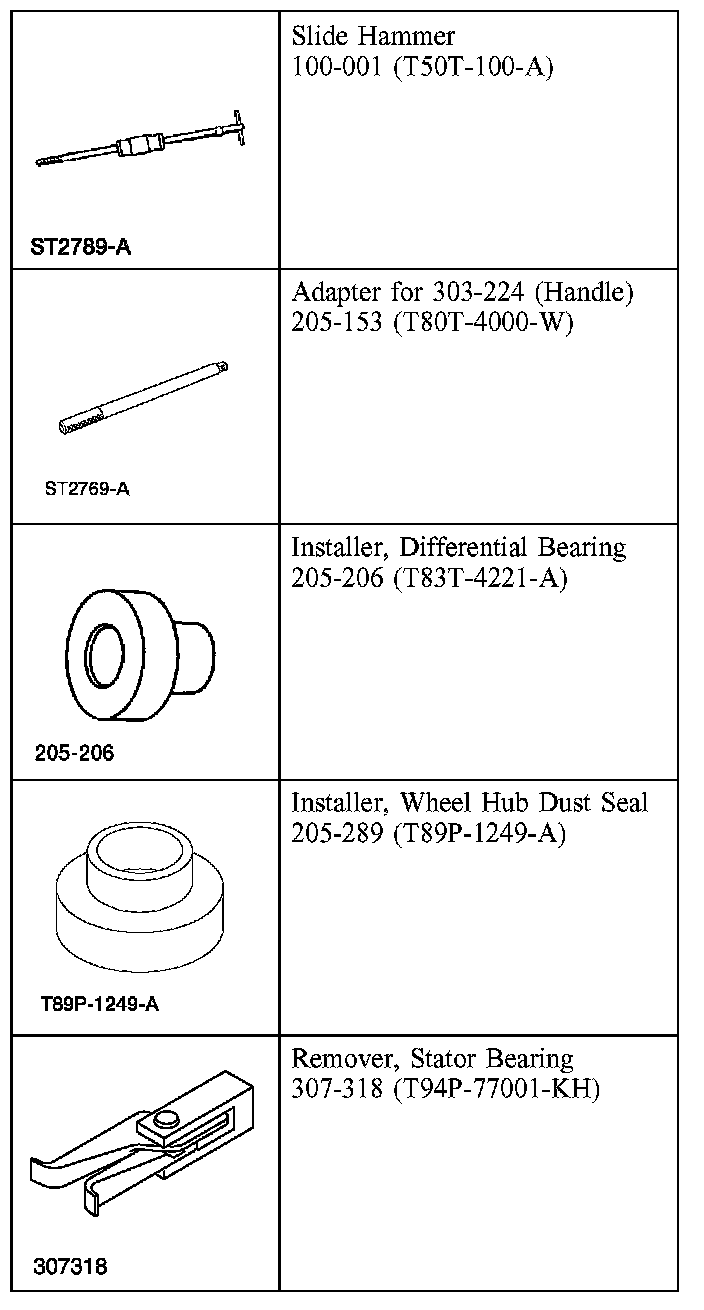

Special Tool(s)

Removal
1. Remove the right-hand halfshaft and the intermediate shaft.

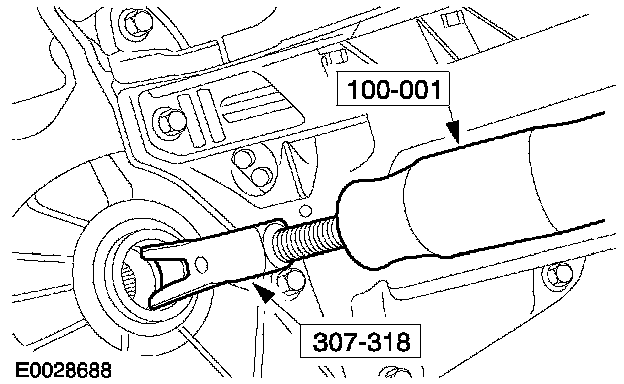

2. Using the special tools, remove the halfshaft oil seal.

Installation

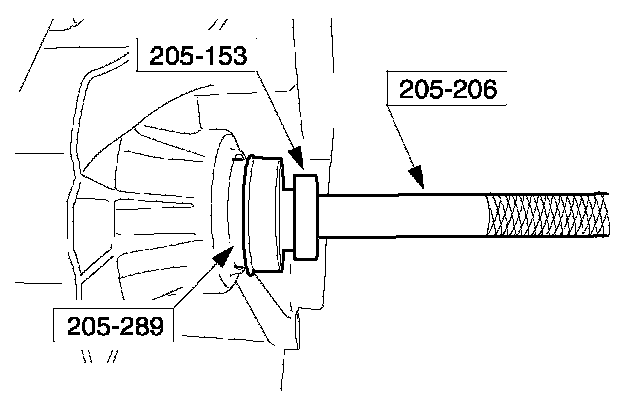

1. Using the special tools, install the halfshaft oil seal.
2. Install the right-hand halfshaft and the intermediate shaft.
3. Check the transaxle fluid level and top up with manual transmission fluid, if necessary.
