Halfshaft Seal LH

Halfshaft Seal LH

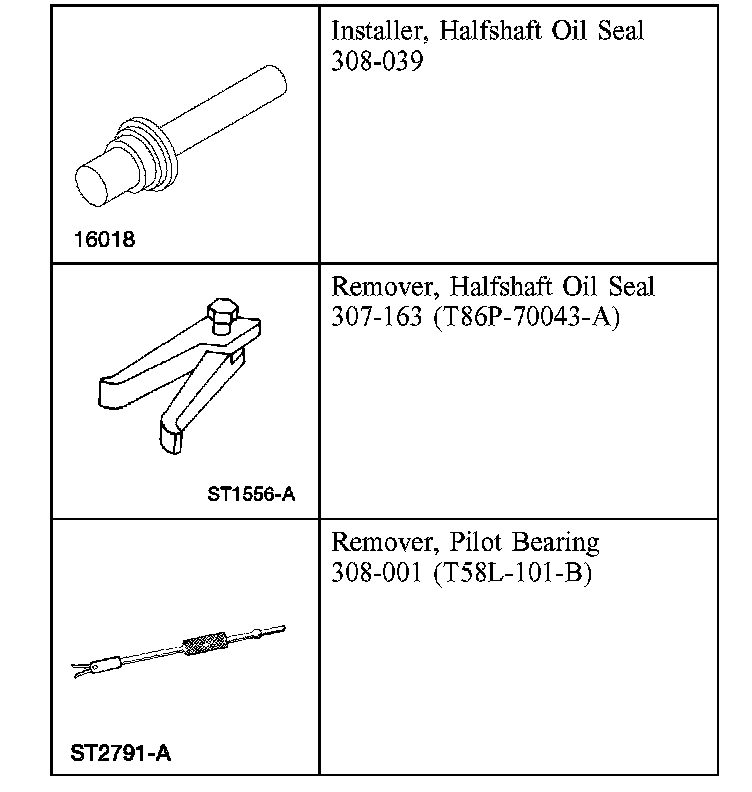

Special Tool(s)

Removal
1. Remove the halfshaft.

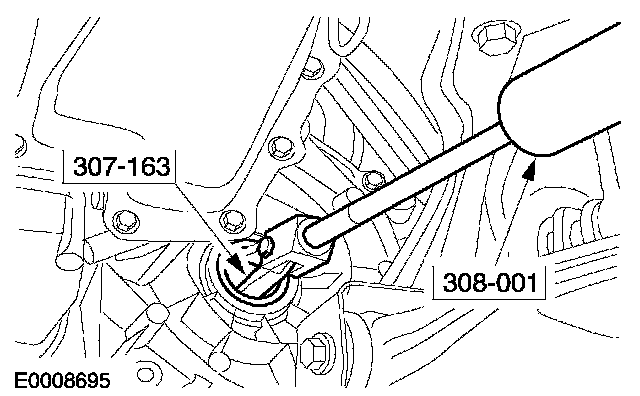

2. Using the special tools, remove the halfshaft oil seal.

Installation

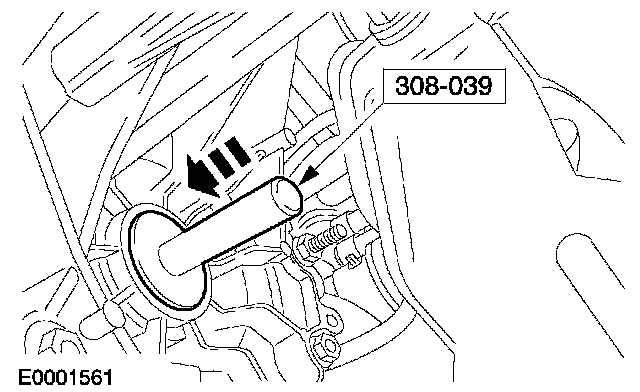

1. Using the special tool, install the halfshaft oil seal.
2. Install the halfshaft.
