Removal and Installation

Gearshift Lever

Removal

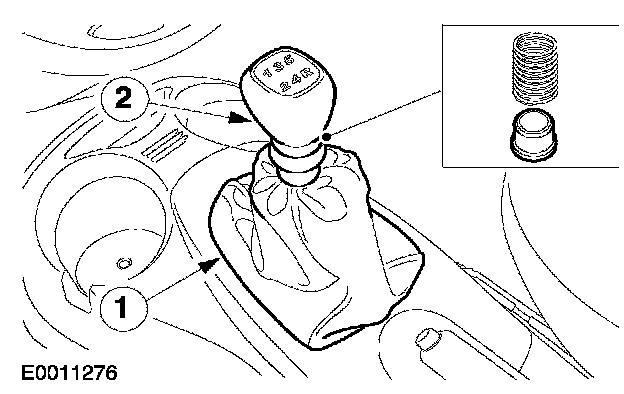

1. Remove the gearshift lever cover.
1. Unclip the cover or boot.
2. Remove the gearshift lever knob.
- Disconnect the connectors (number and configuration depends on equipment).

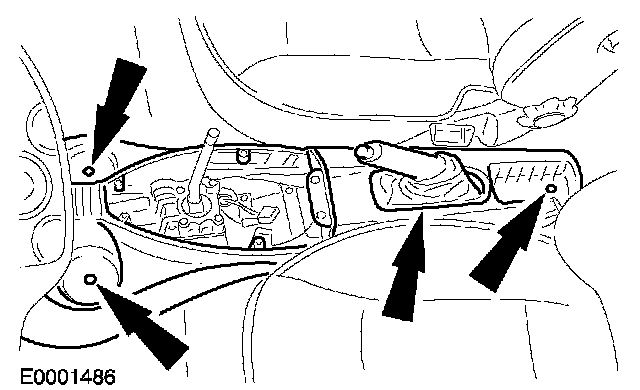

2. Remove the floor console.

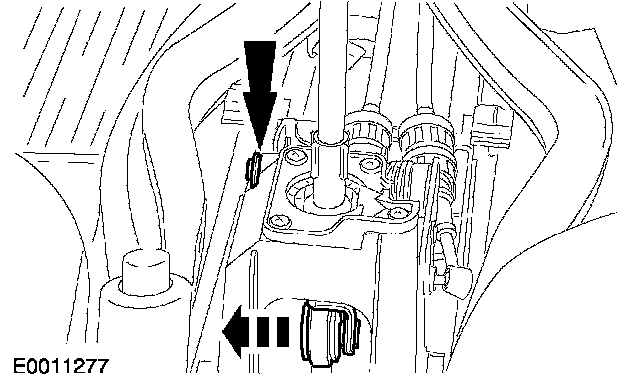

3. Remove the shift cable from the gearshift lever and the clip from the bracket lever.

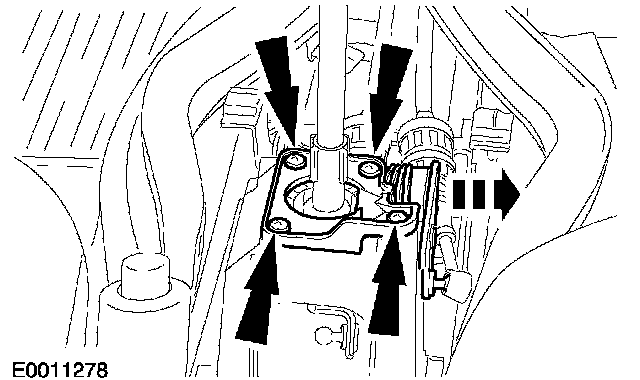

4. Remove the bearing housing and the gear shift lever.
- Move the bracket lever aside.

Installation

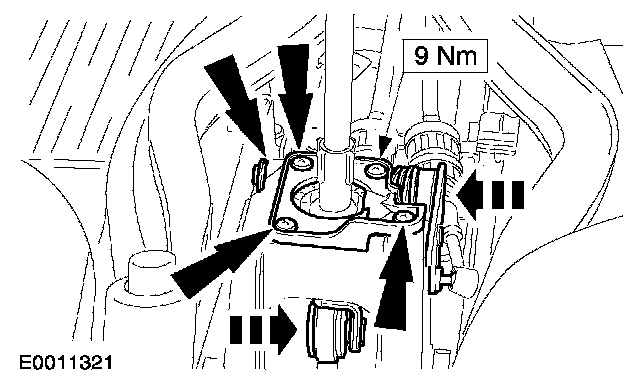

1. Reassemble the parts in reverse order.
2. Adjust the gearshift and selector cables.
