Rear Bumper Reinforcement: Service and Repair

REAR BUMPER

Removal and Installation

All vehicles
1. Remove the rear bumper cover.
2. Remove the rear bumper cover isolator.

Vehicles with 4.6L engines

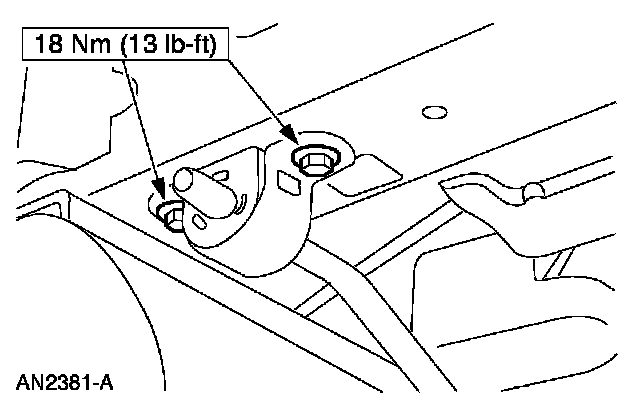

3. Remove the bolts and the exhaust outlet pipe bumper bracket.

All vehicles







4. Remove the rear bumper brace and tongue bolts.

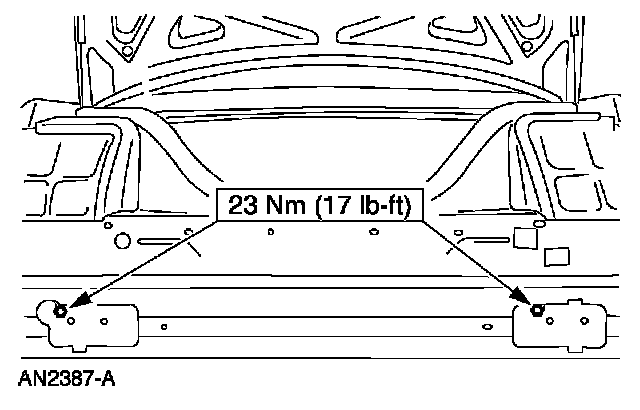

5. Remove the bolts and the rear bumper.
6. To install, reverse the removal procedure.
