Trim Panel - Package Tray

TRIM PANEL - PACKAGE TRAY

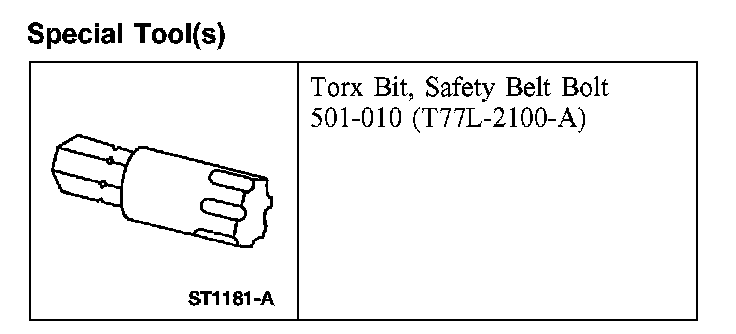

Torx Bit, Safety Belt Bolt:

SPECIAL TOOL(S)

REMOVAL

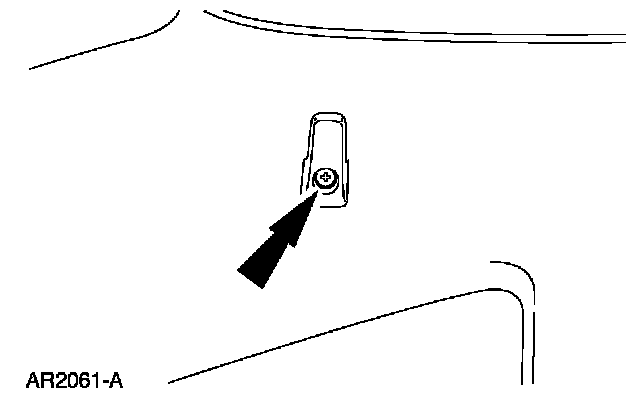

1. Remove the screw and the coat hook.







2. NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.

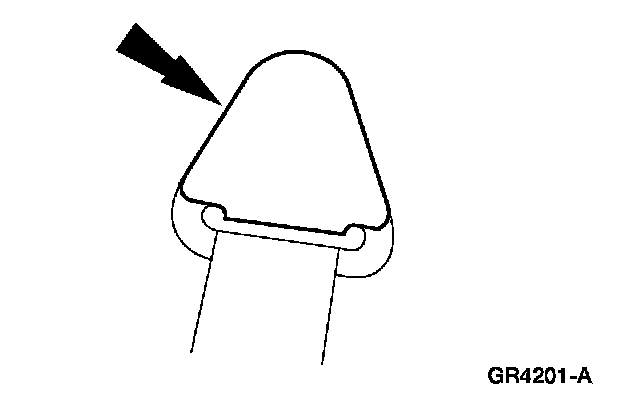

Open the safety belt cover.

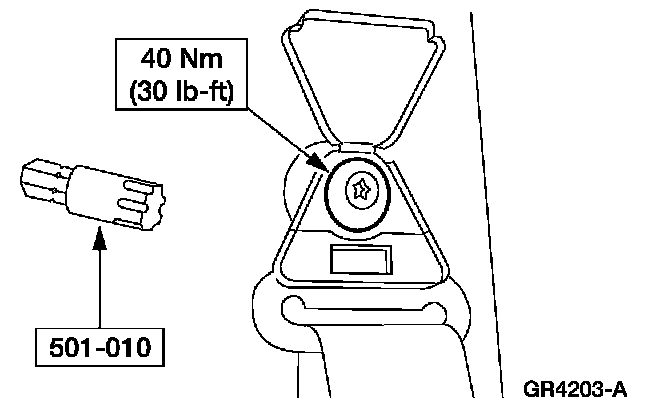

3. Using the special tool, remove the front safety belt guide bolt and position the safety belt guide aside.

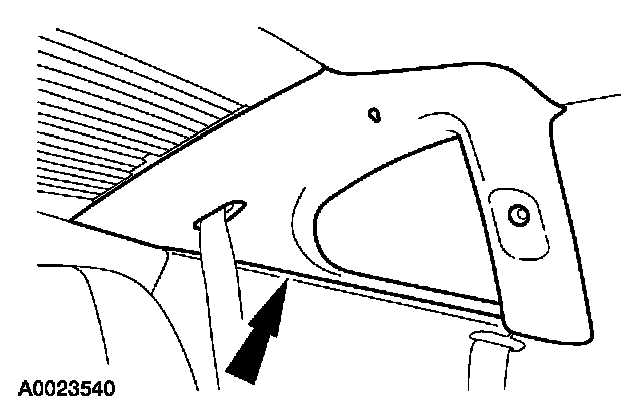

4. Position the upper trim panel aside.
5. Lower the seat backrests.

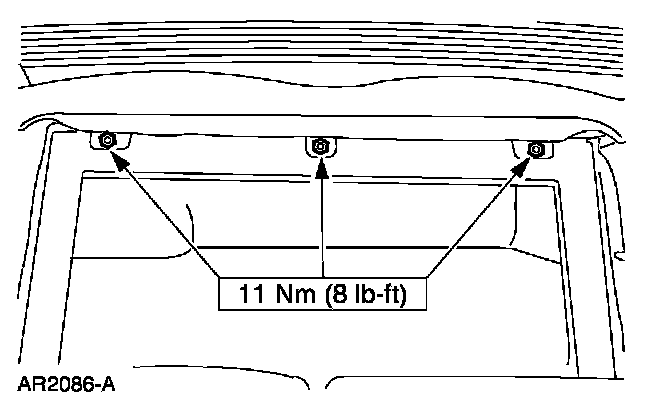

6. Remove the bolts and the rear seat backrest bolster.

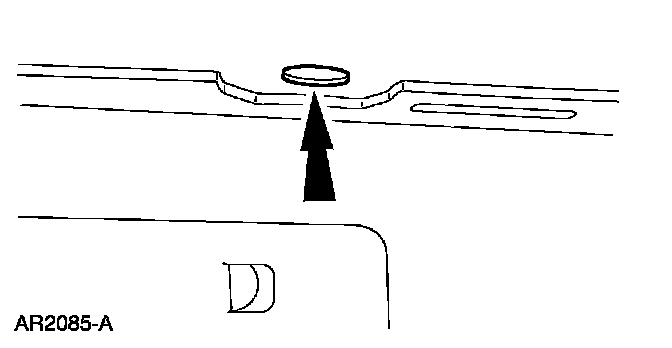

7. Remove the two pin-type retainers and the package tray trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
