Trim Panel - Quarter, Coupe

TRIM PANEL - QUARTER, COUPE

REMOVAL
1. Remove the upper quarter trim panel.

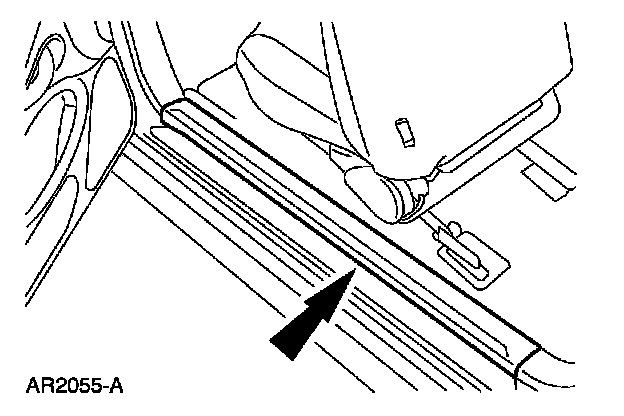

2. Remove the scuff plate.

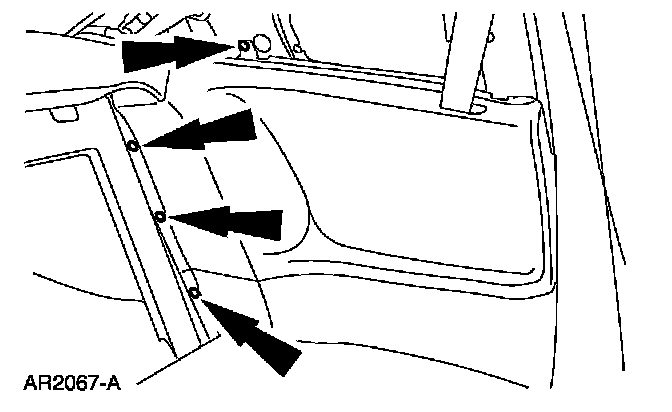

3. Remove the pin-type retainers.
4. Lower the rear seat backrests.

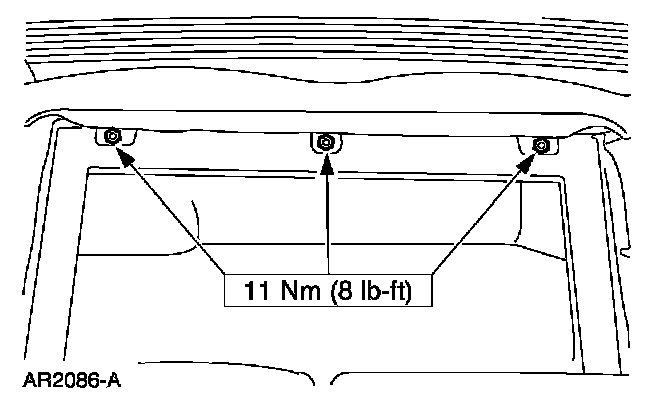

5. Remove the bolts and the rear seat backrest bolster.

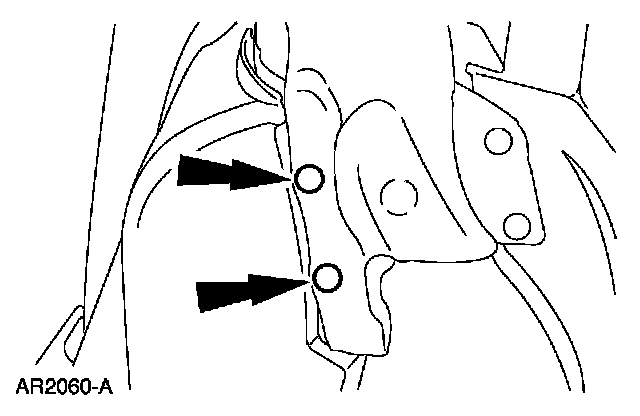

6. Remove the quarter trim panel pin-type retainers.
7. Remove the lower quarter trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
