Front Power Seat

SEAT - FRONT POWER

REMOVAL

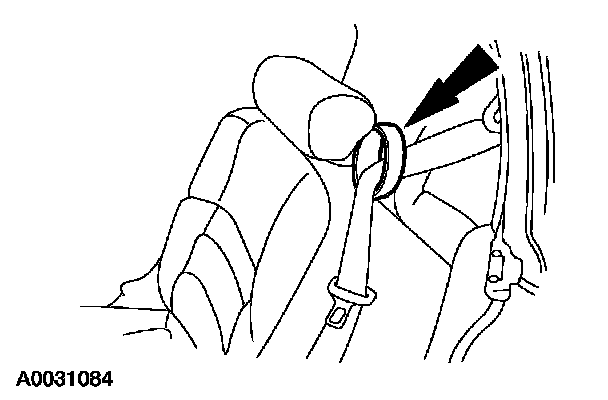

1. Remove the safety belt through the opening in the safety belt guide.
2. Move the seat forward.

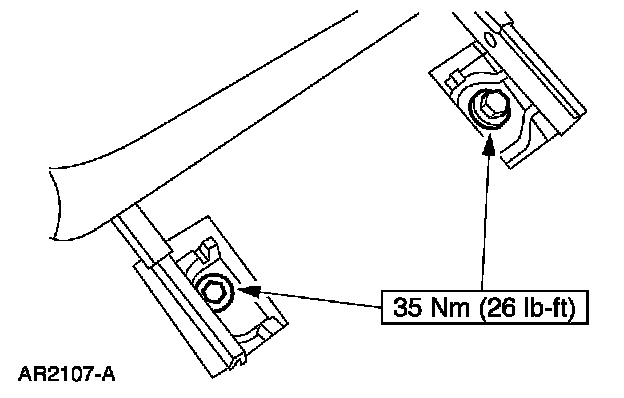

3. Remove the bolt covers and remove the seat track bolts.
4. Move the seat rearward.

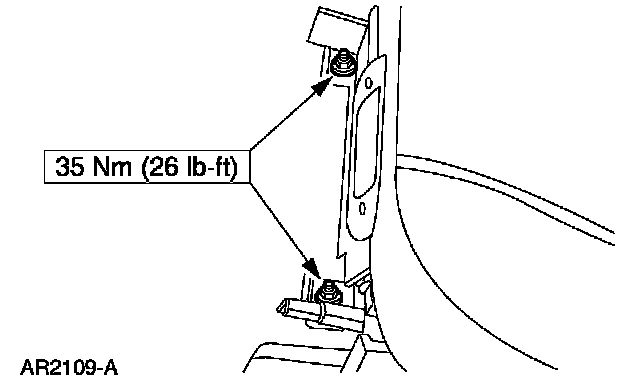

5. Remove the seat track nuts.
6. Move the seat forward.
7. Disconnect the battery.

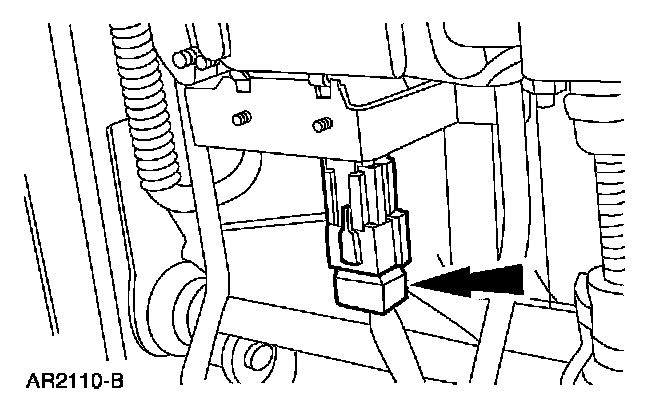

8. Disconnect the power seat electrical connector.
9. Remove the power seat.

INSTALLATION
1. To install, reverse the removal procedure.
