Idler Pulley: Service and Repair

Accessory Drive Belt Idler Pulley

Removal and Installation
1. Remove the drive belt.

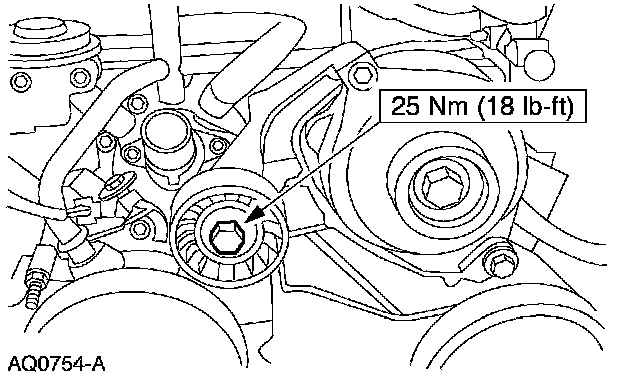

2. Remove the belt idler pulley.
- Remove the bolt.
3. To install, reverse the removal procedure.
