Oil Pan Baffle

Oil Pan Baffle

Removal and Installation
1. Remove the oil pump screen cover and tube.

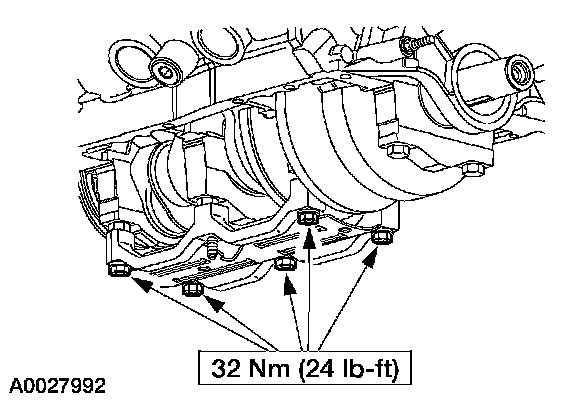

2. Remove the oil pan baffle.
- Remove the nuts.
3. To install, reverse the removal procedure.
