Oil Pump Screen and Pickup Tube

Oil Pump Screen and Pickup Tube

Removal and Installation
1. Remove the oil pan.

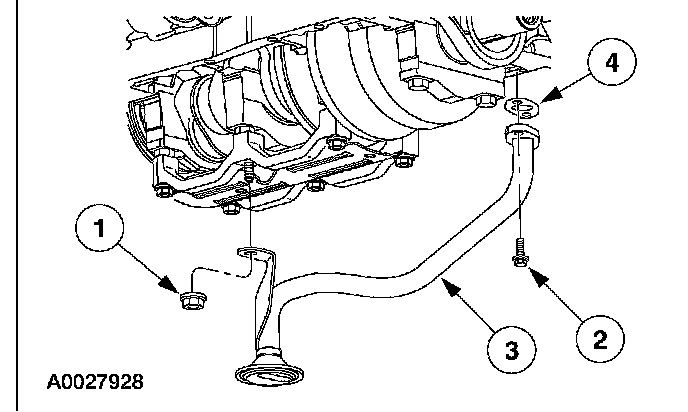

2. Remove the oil pump screen cover and tube and discard the gasket.
1. Remove the nut.
2. Remove the two bolts.
3. Remove the oil pump screen cover and tube.
4. Remove and discard the gasket.

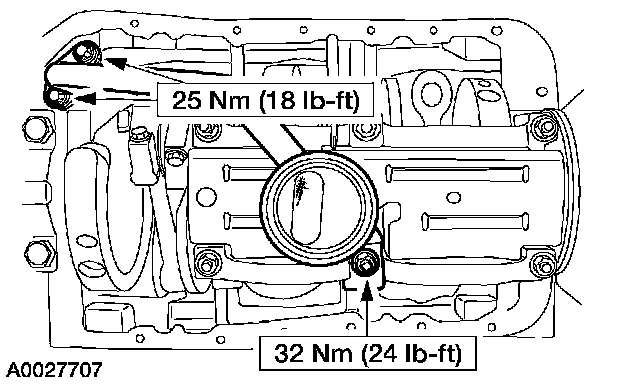

3. To install, reverse the removal procedure.
