PINPOINT TEST A: NO COMMUNICATION WITH THE ANTI-LOCK BRAKE CONTROL MODULE

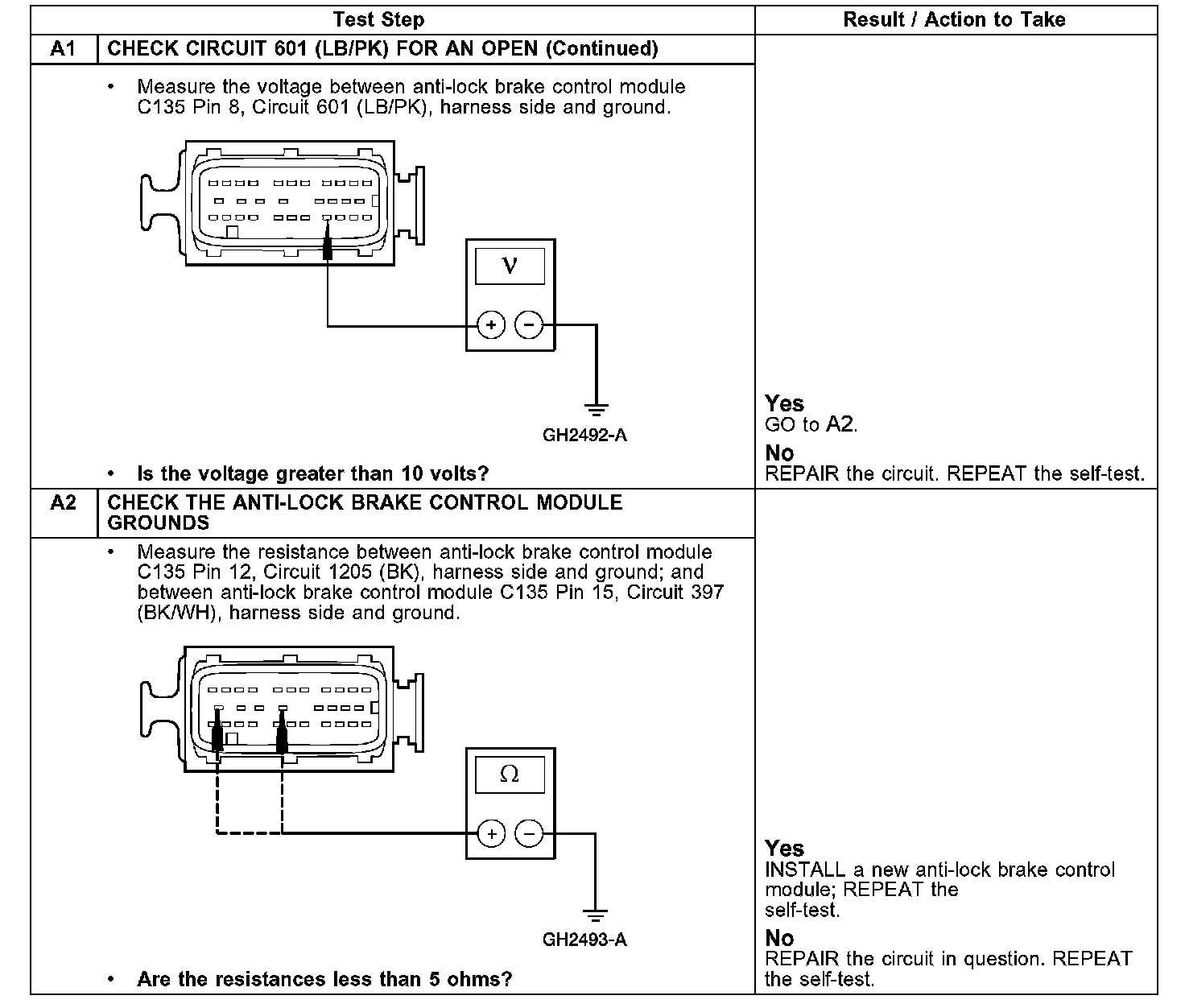

Test A1 Continued:
Test A1-A2:
