Rear Anti-Lock Brakes (RABS)
Rear Anti-Lock Brakes (RABS)
PINPOINT TEST I: ABS VALVE POWER RELAY CIRCUIT FAILURE

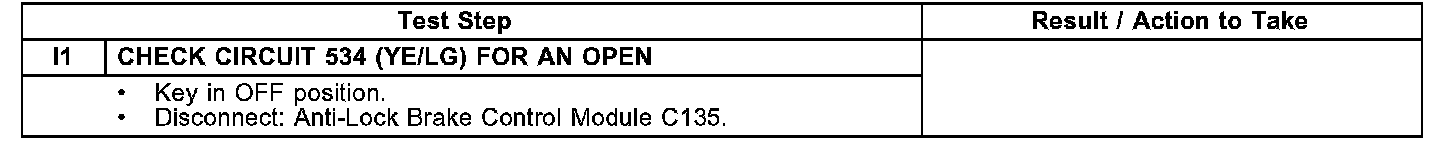

Test I1 Continued:

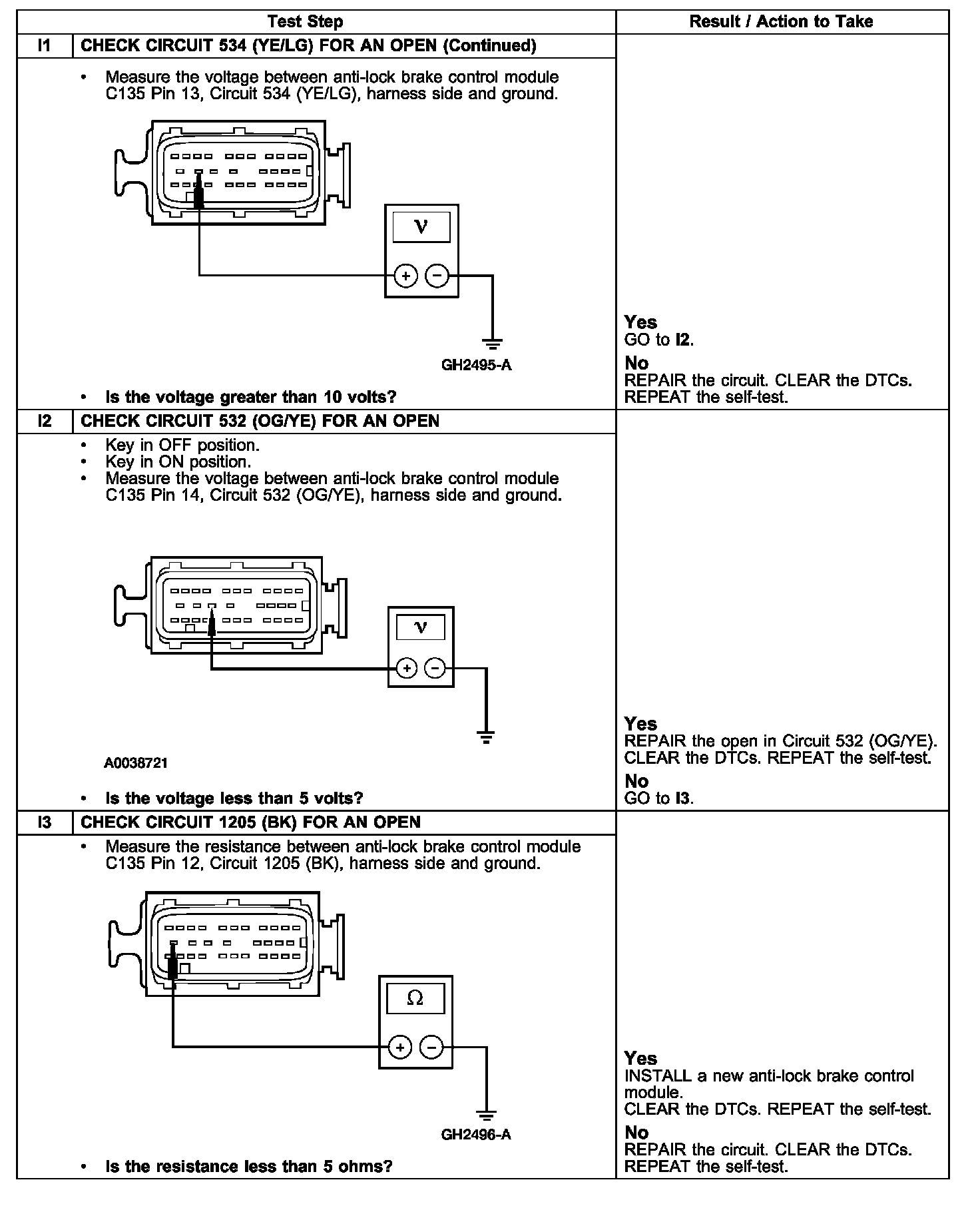

Test I1-I3:
