Front

Pads

Removal
1. Remove brake master cylinder filler cap. Check brake fluid level in brake master cylinder reservoir. Remove fluid until brake master cylinder reservoir is half full.
2. Raise and support the vehicle.
3. Remove the wheel and tire assembly.

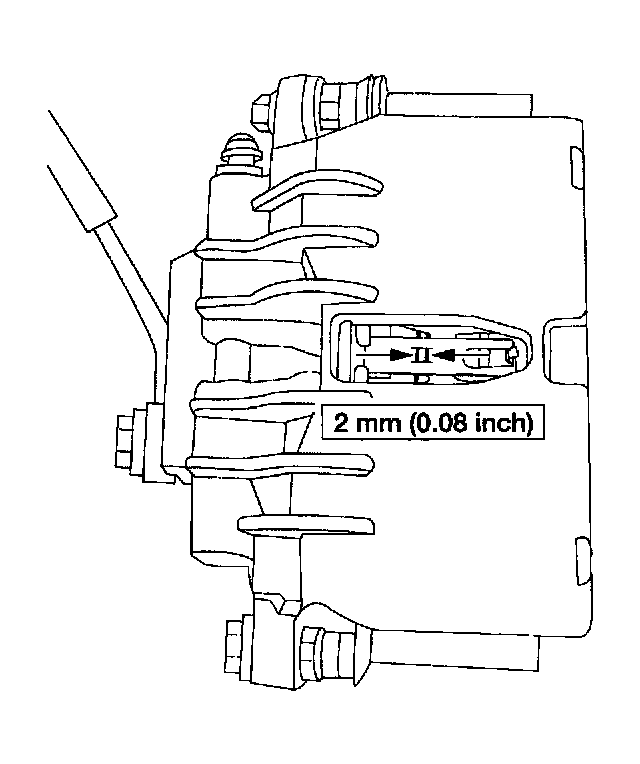

4. CAUTION: Install new pads if worn to or past the specified thickness above the metal backing plate or rivets. Install pads in complete axle sets.

Inspect the pads for wear and contamination

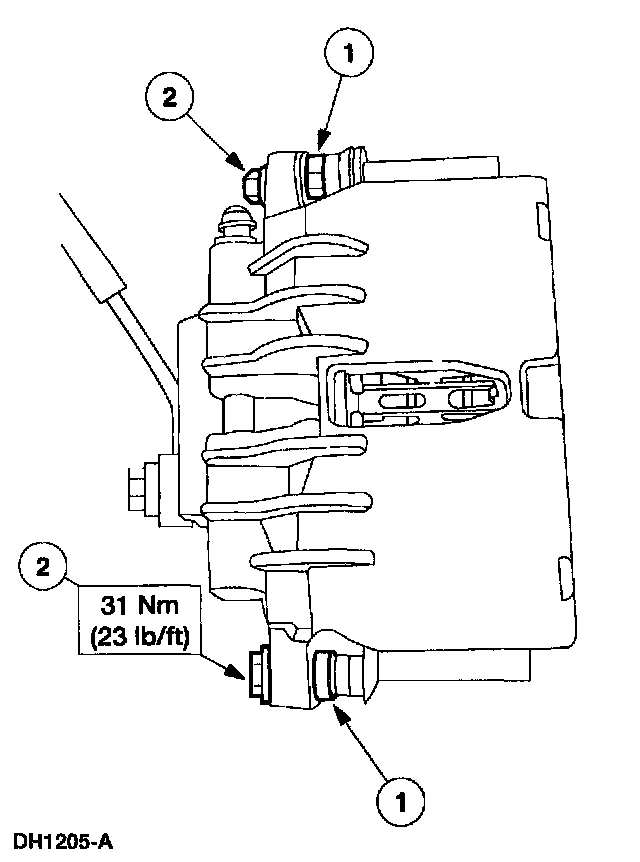

5. Remove the caliper bolts.
1 Hold the guide pins stationary.
2 Remove and discard the caliper bolts.

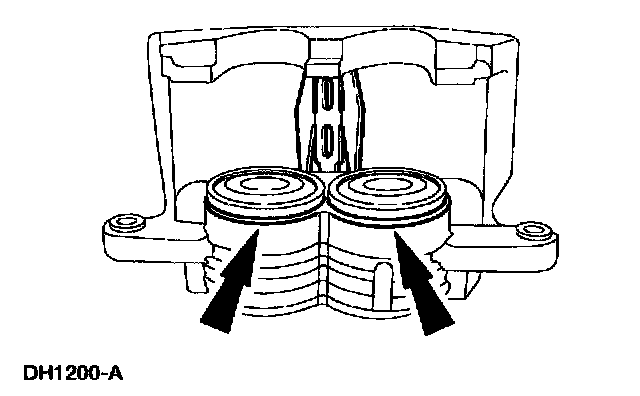

6. CAUTION: Do not pry in caliper sight hole to retract pistons as this can damage the pistons and boots. When removing the disc brake caliper, never allow it to hang from the brake hose. Provide a suitable support.

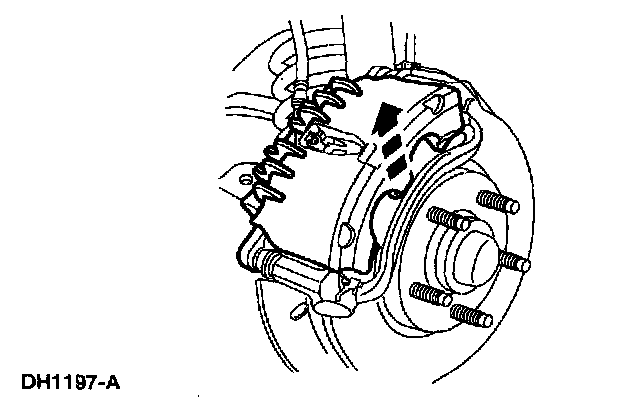

Lift the caliper off the anchor plate.

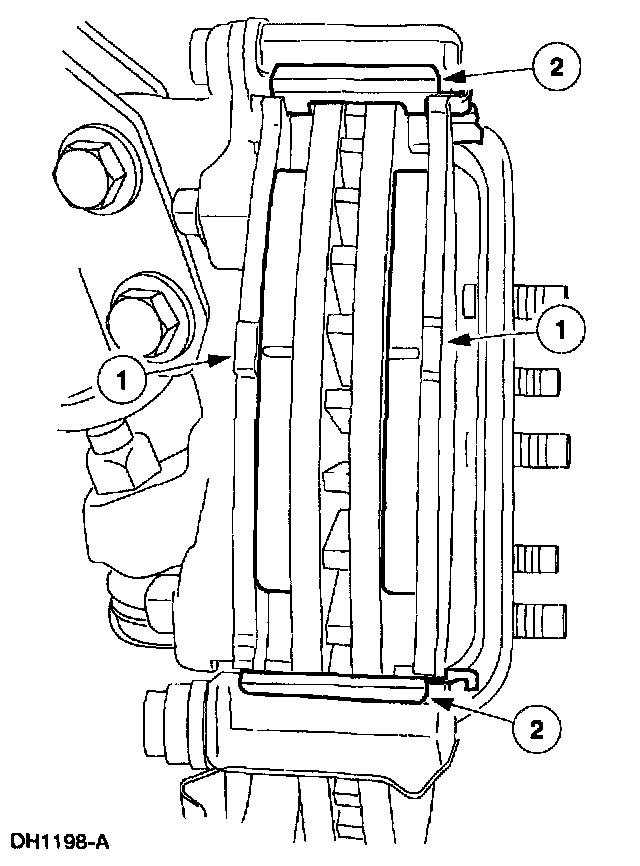

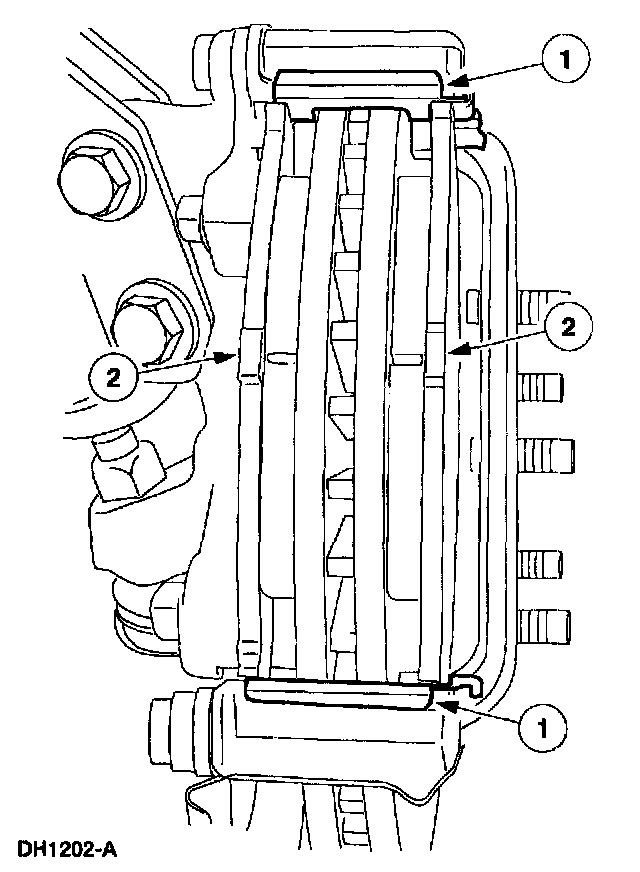

7. Remove the pads and the pad slippers.
1 Remove the pads and verify thickness.
2 Remove and discard slippers.

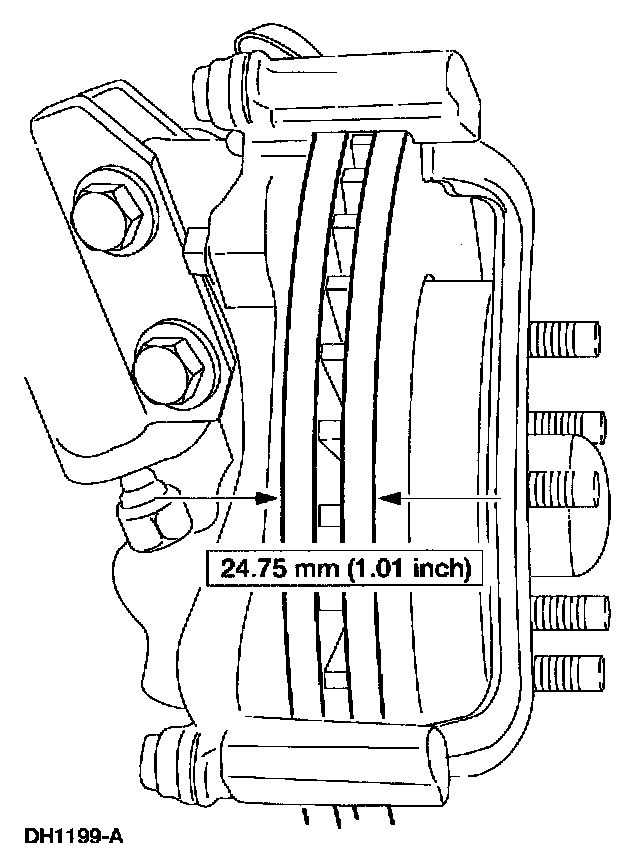

8. Measure the front brake disc thickness.
^ Install a new front brake disc if not within specification.





9. Inspect the disc brake caliper.
^ If leaks or damaged boots are found, disassembly is required.





10. Inspect the front disc brake anchor plate assembly.
^ Check the guide pin boots for damage.
^ Check the guide pins for binding and damage.
^ Worn or damaged pins should be installed new.

Installation





1. CAUTION: Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material. Do not install contaminated pads.

NOTE: Install all hardware supplied with pad kits.

Install the pads.

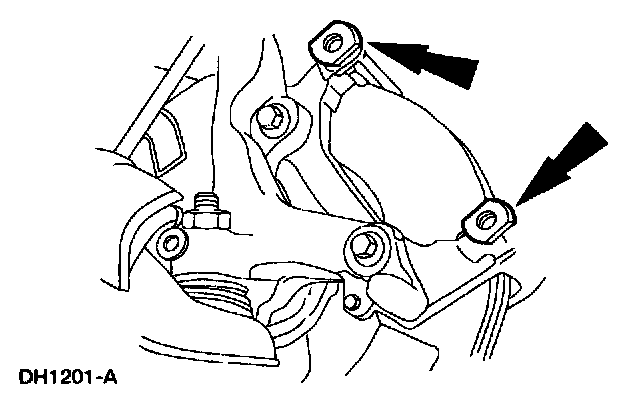

1 Install the new pad slippers.
2 Install the pads.

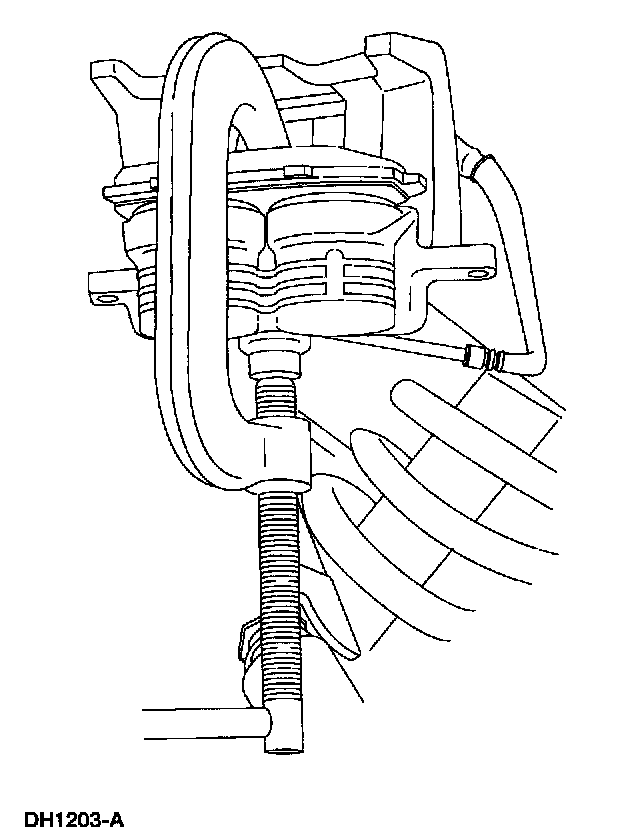

2. NOTE: Use a wood block or used pad to protect pistons and boots.

Compress the caliper pistons.

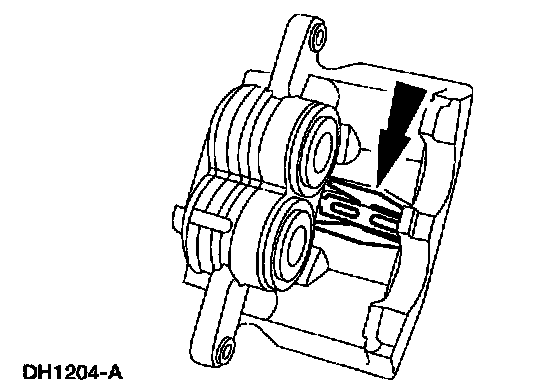

3. Make sure the anti-rattle spring is correctly positioned in the caliper.





4. CAUTION: Use care not to damage the bleeder screw or front brake disc shield.

Install the disc brake caliper.
1 Hold the guide pins stationary.
2 Install the caliper bolts.
5. Install the wheel and tire assembly.
6. Lower the vehicle.
7. Fill the brake master cylinder reservoir with clean High Performance DOT 3 Brake Fluid C6AZ-19542-AB or equivalent DOT 3 fluid meeting Ford specification ESA-M6C25-A. Install brake master cylinder filler cap.
8. Inspect brake operation.
