Lifter / Lash Adjuster: Service and Repair

Valve Tappets

Removal

CAUTION: If removing more than one valve tappet, mark the components removed for correct location.

1. Remove the lower intake manifold.

2. Remove the push rods.

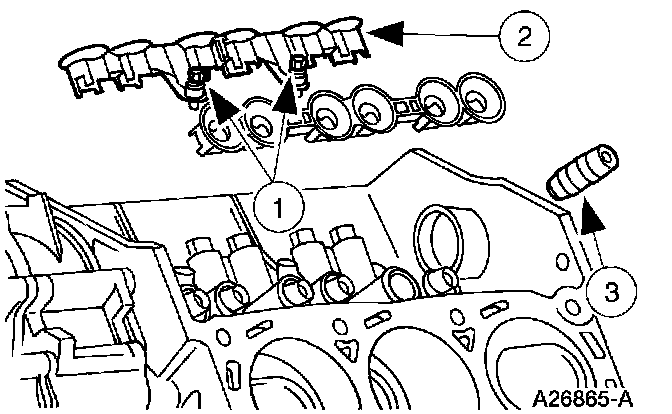

3. Remove the eight valve tappets.
1. Remove the bolts.
2. Remove the tappet guide plate and retainer.
3. Remove the valve tappets.

Installation

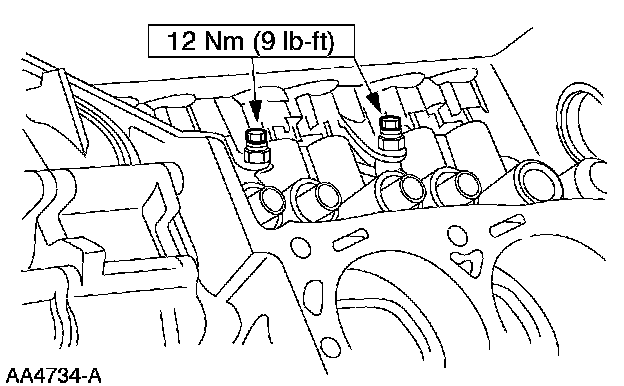

1. NOTE: Lubricate the valve tappet with clean engine oil before installing.

To install, reverse the removal procedure.
