Drive Belt Tensioner: Service and Repair

Accessory Drive Belt Tensioner

Removal and Installation
1. Remove the drive belt.

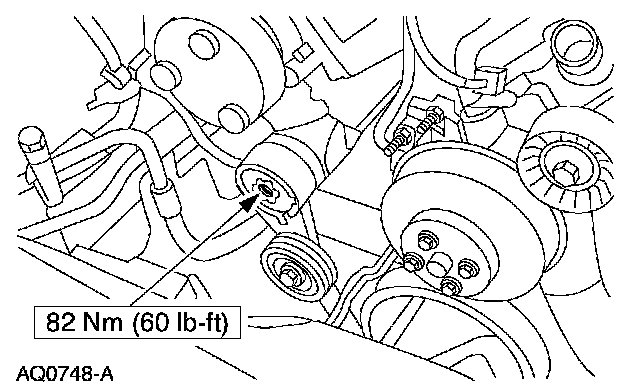

2. Remove the belt tensioner.
^ Remove the bolt.
3. To install, reverse the removal procedure.
