Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

Removal and Installation

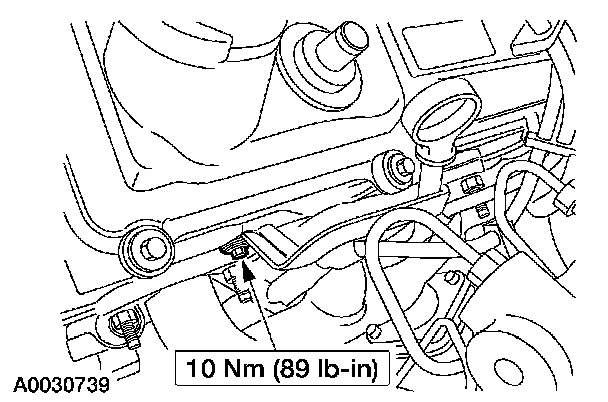

1. Remove the oil level indicator tube.

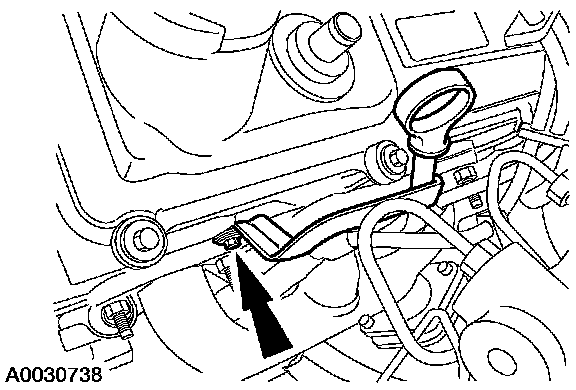

^ Remove the bolt.
^ Remove the oil level indicator tube.
^ Remove and discard the oil level indicator tube O-ring.





2. To install, reverse the removal procedure.
