Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

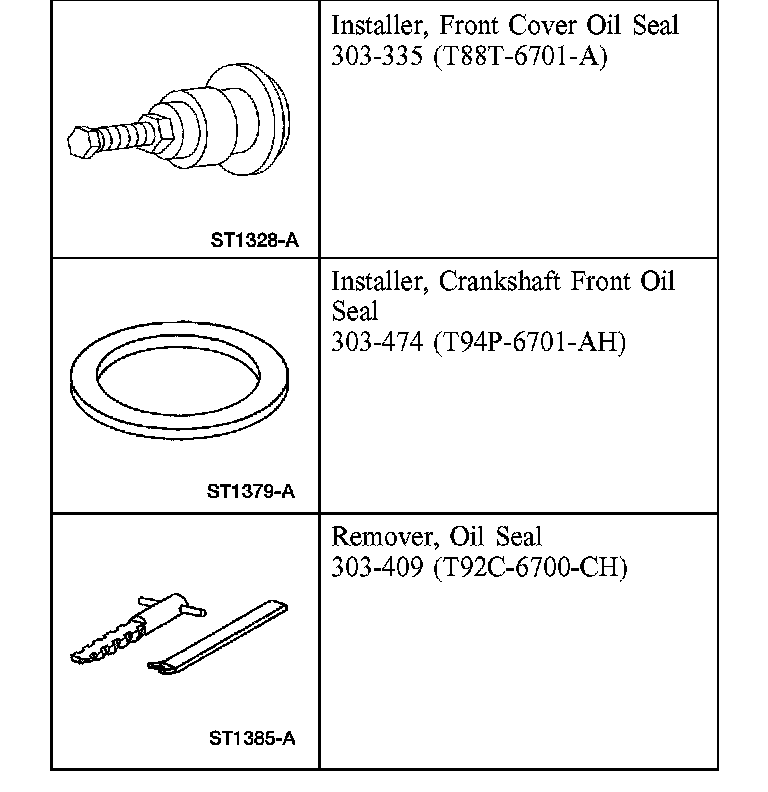

Special Tool(s)

Removal
1. Remove the crankshaft pulley.





2. Using the special tool, remove and discard the crankshaft front seal.

Installation





1. NOTE: Lubricate the crankshaft front seal with clean engine oil before assembly.

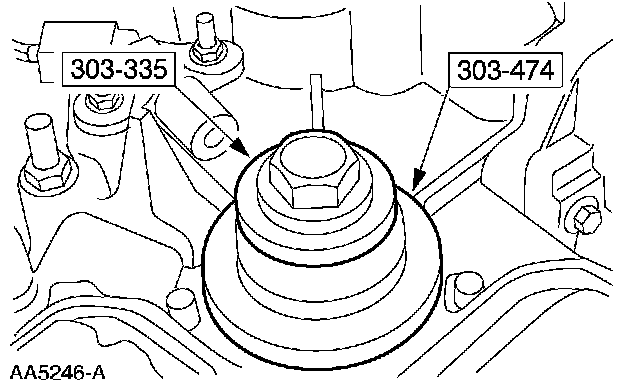

Using the special tool, install the crankshaft front seal.
2. Install the crankshaft pulley.
