Exhaust Manifold-LH

Removal
1. Raise and support the vehicle.

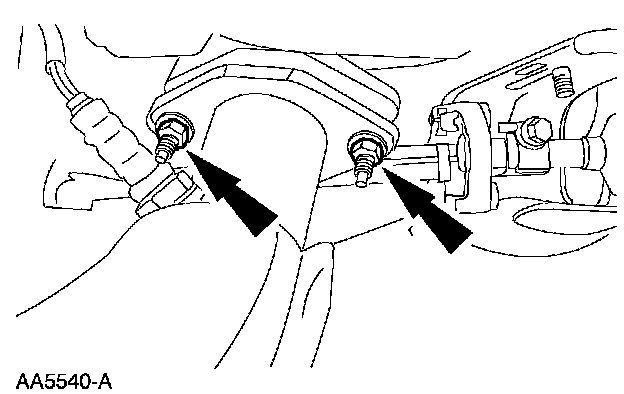

2. Remove the LH exhaust manifold flange nuts.

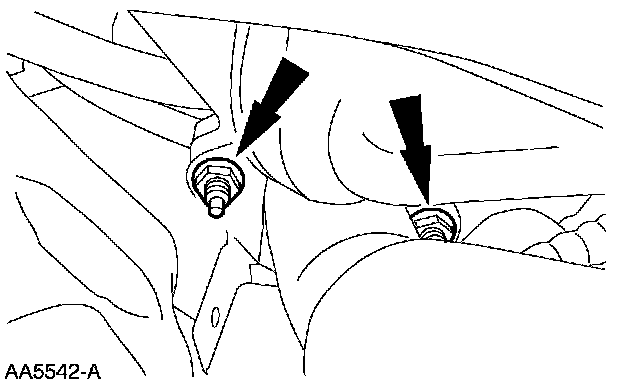

3. Remove the RH exhaust manifold flange nuts.
4. Lower the vehicle.





5. NOTE: Discard the exhaust manifold gasket.

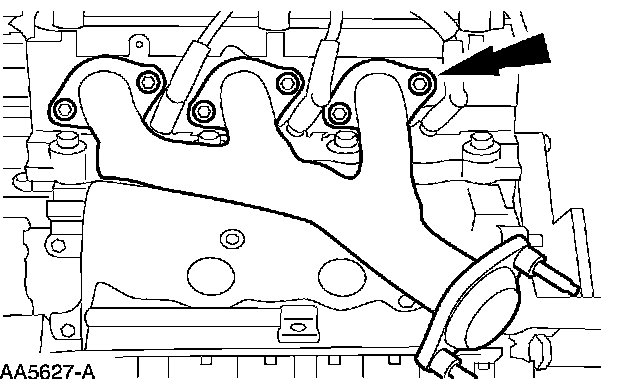

Remove the LH exhaust manifold.
^ Remove the nuts.

Installation








1. NOTE: Install a new gasket.

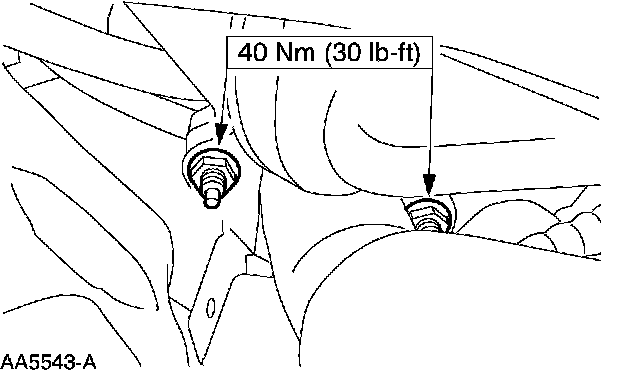

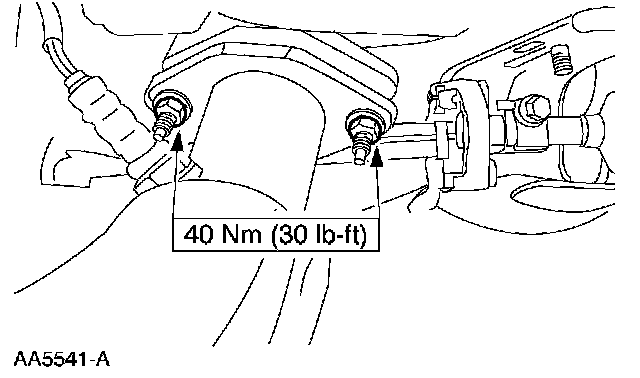

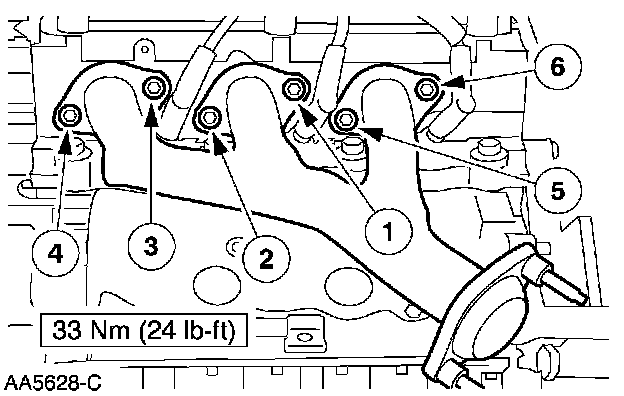

NOTE: Tighten the nuts in the sequence shown. To install, reverse the removal procedure.
