Instrument Cluster Bulb

INSTRUMENT CLUSTER BULB

REMOVAL
1. Remove the instrument cluster.

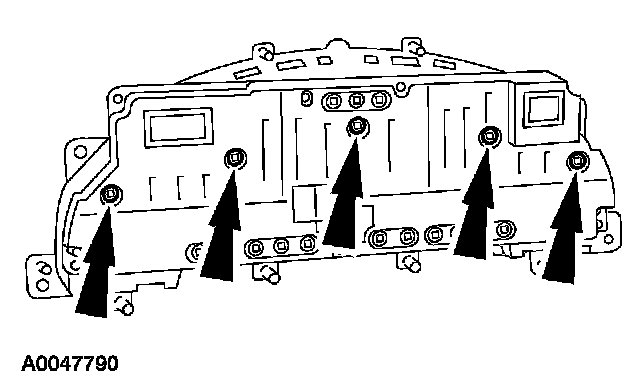

2. Remove the necessary instrument cluster bulbs by rotating the bulb one quarter turn counterclockwise and lifting straight out of the instrument cluster.

INSTALLATION
1. To install, reverse the removal procedure.
