Test A

PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC ELECTRONIC MODULE (GEM)

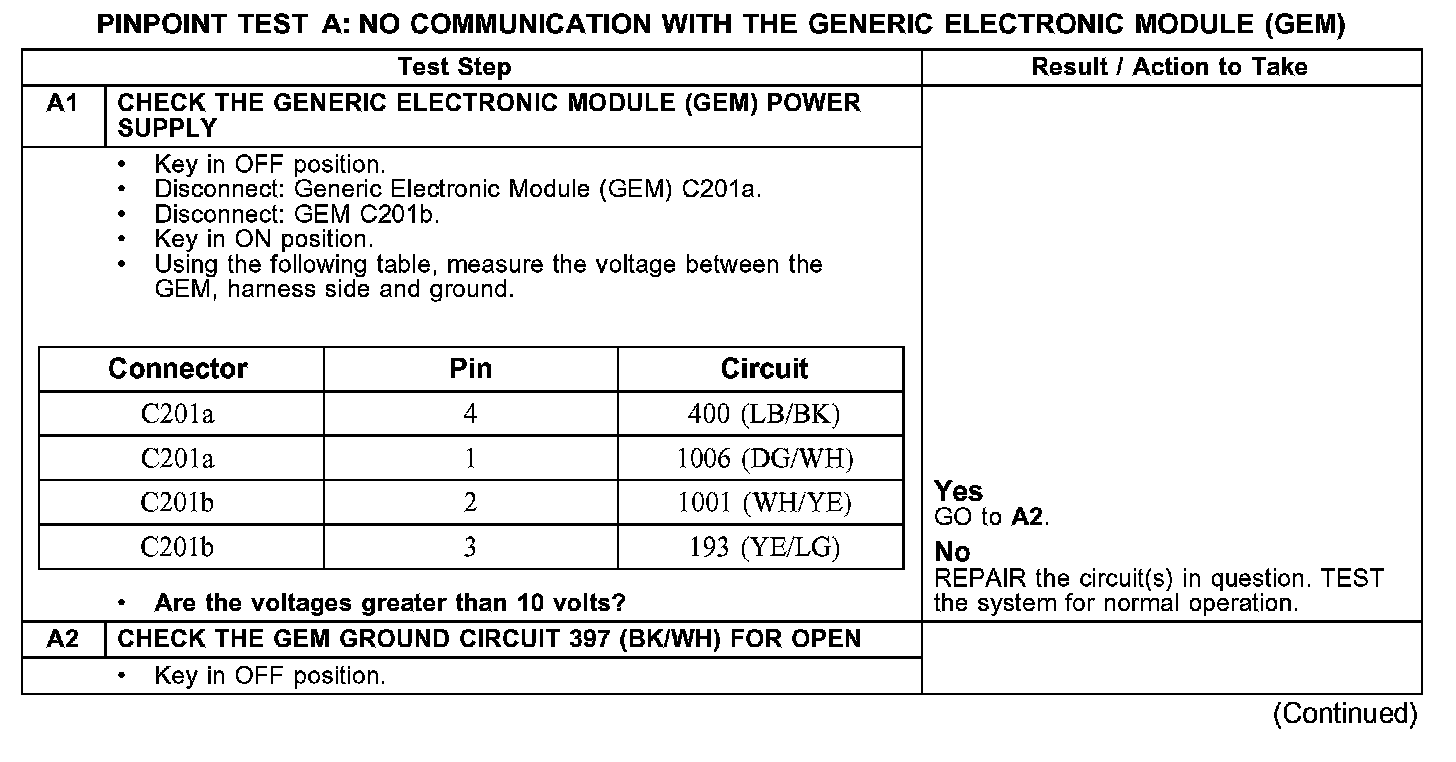

Test A1-A2:

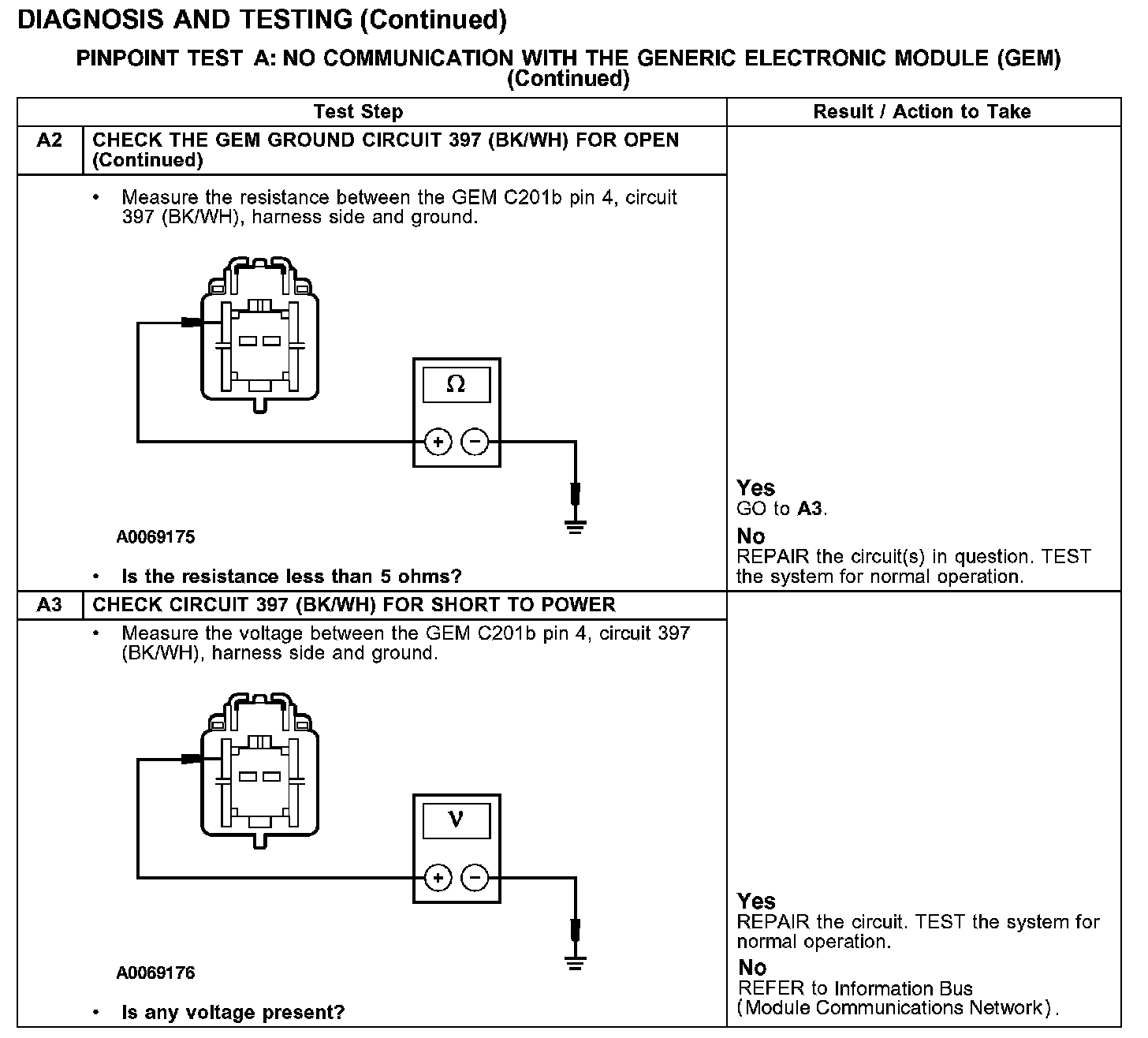

Test A2-A3:
