Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Mustang V6-3.9L VIN 6
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>

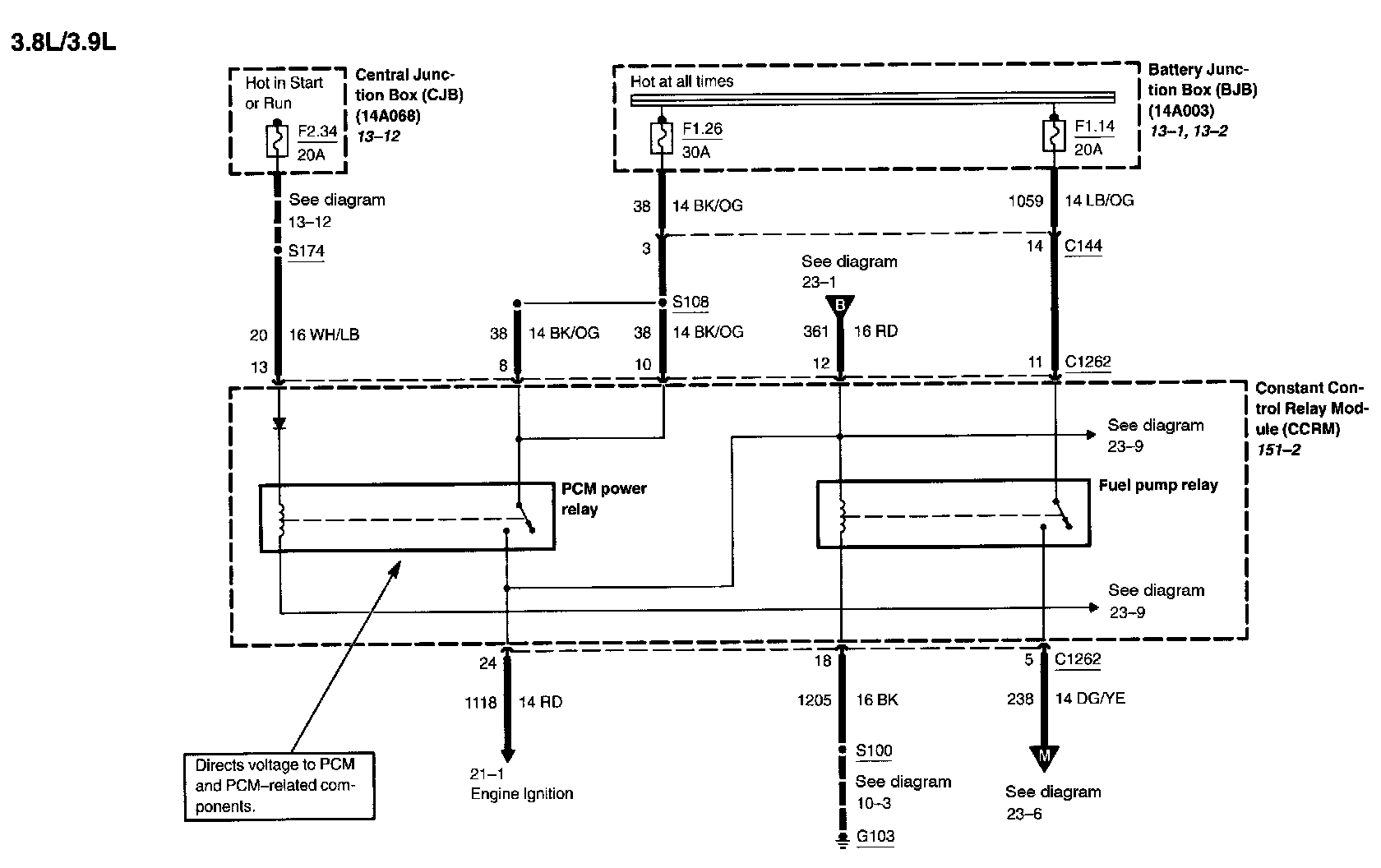

Electrical Diagrams
Electrical Diagrams
23-8:
