Accelerator Cable

ACCELERATOR CABLE

REMOVAL

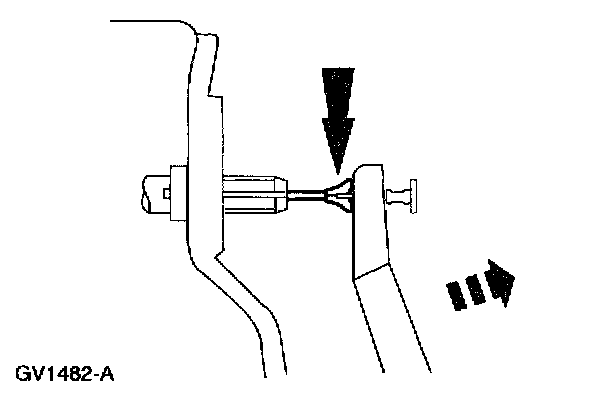

1. Push the accelerator cable nylon bushing out of the accelerator pedal and shaft arm.

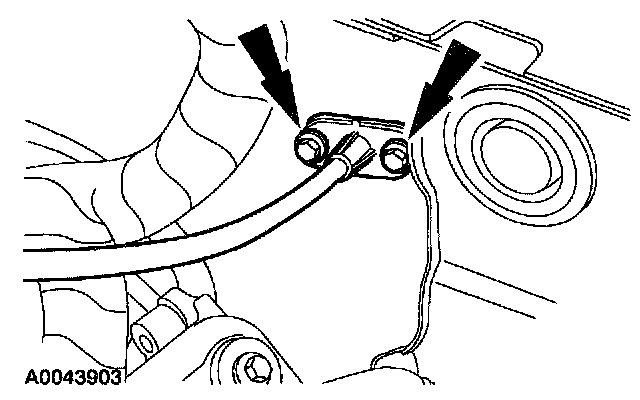

2. Remove the bolts retaining the accelerator cable to the dash panel.







3. Disconnect the accelerator cable from the throttle body by rotating the throttle body full open and aligning the cable with the release slot.

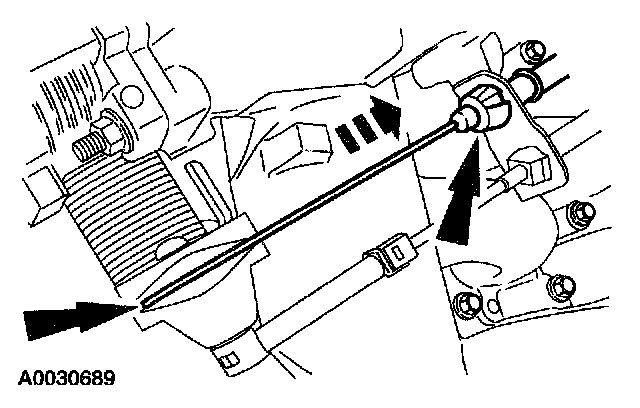

4. Disconnect the accelerator cable from the retaining bracket by compressing the locking tabs and back-feeding the cable through the bracket and out of the engine compartment.

INSTALLATION
1. To install, reverse the removal procedure.
