Accelerator Cable Bracket
ACCELERATOR CABLE BRACKETREMOVAL
1. Disconnect the speed control cable from the throttle body and the bracket.

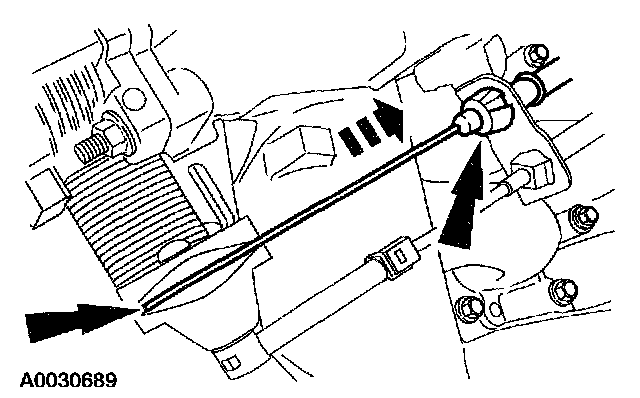

2. Disconnect the accelerator cable from the throttle body by rotating the throttle body full open and aligning the cable with the release slot.
3. Compress the accelerator cable locking tabs and disconnect the accelerator cable from the accelerator cable bracket.

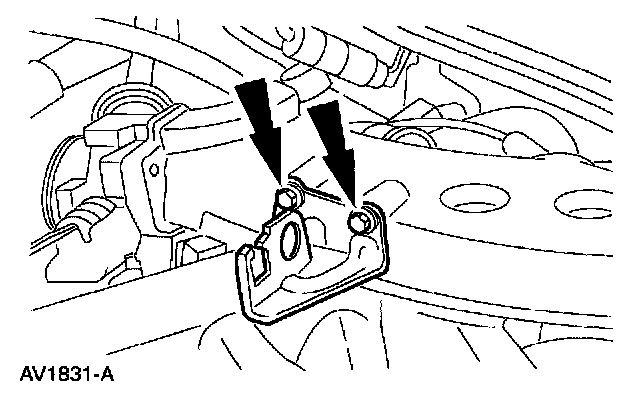

4. Remove the bolts and the accelerator cable bracket.
INSTALLATION
1. To install, reverse the removal procedure.
