Convertible

RETRACTOR - FRONT SEAT SAFETY BELT, CONVERTIBLE

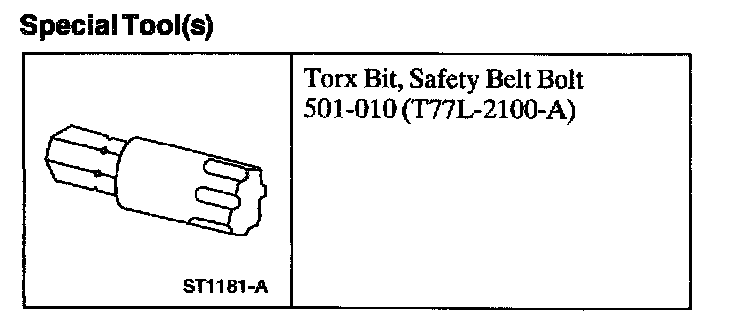

Torx Bit, Safety Belt Bolt:

SPECIAL TOOL(S)

REMOVAL
1. Remove the quarter trim panel.

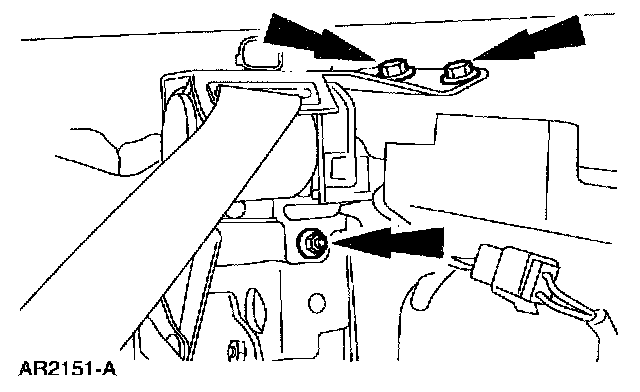

2. Remove the nut and bolts and safety belt retractor.

INSTALLATION

NOTE: Make sure the safety belt is not twisted.

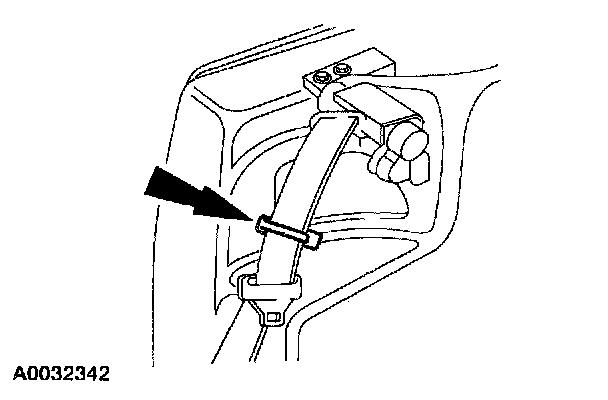

1. The shipping clip must remain attached prior to the installation of the retractor into the vehicle. The clip must be removed after the retractor is installed.

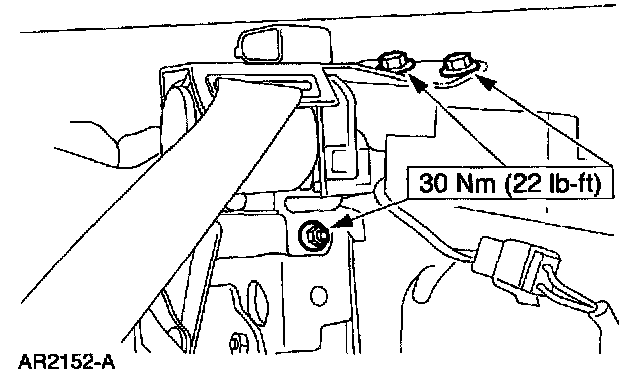

2. Position the safety belt retractor. Install the nut and bolts.

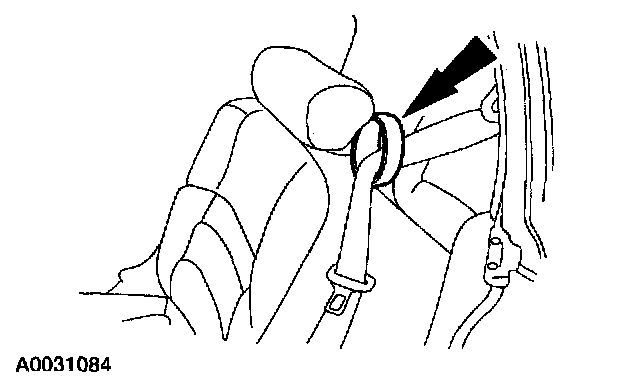

3. The shoulder belt must pass through the belt holder on the top of the seatback.
4. Install the quarter trim panel.
5. Check the active restraint system for correct operation.
